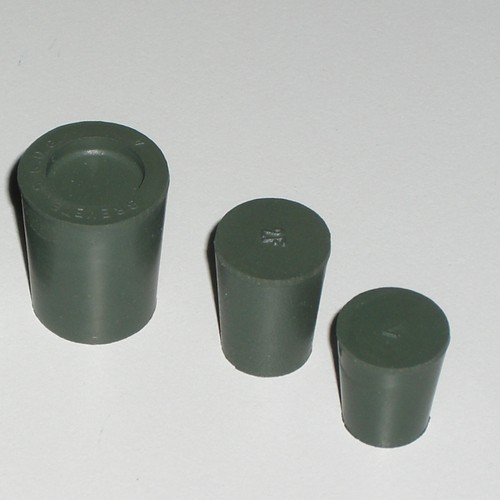

High-Chem Stopper made of FPM
Application area Laboratory technology, chemical technology, sealing technique, container... more
Application area
Laboratory technology, chemical technology, sealing technique, container technology, automobile industry, engineering operations and maintenance
Product specification
Highest temperature resistance
Outstanding chemical resistance, particularly to aliphatic, aromatic and halogen-substituted hydrocarbons, fuels, oils, fats, hydraulic fluids, alcohols and acids
Very good heat resistance
Resistant to effects of ozone, aging, and weather
Flame-resistant
Highest mechanical strength
Technical specification
Material: FPM (fluorinated rubber)
Colour: black
Shore hardness A: 75°
Temperature range: -20 to +200 °C, for a short time up to +260 °C
Sterilization: autoclavable (+136 °C)
Tolerance: according to DIN ISO 3302-1 M4
Item | Image |
Ø bottom mm
|
Ø oben mm
|
Höhe mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Ø bottom mm
|
Ø oben mm
|
Höhe mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
340873 |
|
3 | 7 | 19 | 5 | 40.00 | |
340874 |
|
3 | 7 | 19 | 15 | 100.00 | |
340875 |
|
6 | 10 | 17,5 | 5 | 78.00 | |
340876 |
|
6 | 10 | 17,5 | 15 | 192.00 | |
340877 |
|
9 | 12 | 19 | 5 | 100.00 | |
340878 |
|
9 | 12 | 19 | 15 | 240.00 | |
340879 |
|
10 | 14 | 19 | 5 | 105.00 | |
340880 |
|
10 | 14 | 19 | 15 | 262.00 | |
340881 |
|
12 | 15 | 19 | 5 | 133.00 | |
340882 |
|
12 | 15 | 19 | 15 | 325.00 | |
340883 |
|
13 | 16 | 21 | 5 | 142.00 | |
340884 |
|
13 | 16 | 21 | 15 | 342.00 | |
340885 |
|
14 | 17 | 21 | 5 | 198.00 | |
340886 |
|
14 | 17 | 21 | 15 | 462.00 | |
340887 |
|
16 | 19 | 23 | 5 | 254.00 | |
340888 |
|
16 | 19 | 23 | 15 | 396.00 | |
340889 |
|
18 | 21 | 25 | 5 | 288.00 | |
340890 |
|
18 | 21 | 25 | 15 | 448.00 | |
340891 |
|
19 | 23 | 28 | 2 | 182.00 | |
340892 |
|
19 | 23 | 28 | 5 | 341.00 | |
340897 |
|
26 | 32 | 34 | 1 | 220.00 | |
340898 |
|
26 | 32 | 34 | 2 | 358.00 | |
340899 |
|
28 | 34 | 36 | 1 | 264.00 | |
340900 |
|
28 | 34 | 36 | 2 | 410.00 | |
340901 |
|
31 | 37 | 41 | 1 | 299.00 |
