High-Therm Pull Plug made of Silicone
Product specification Ideally suitable for marking of through-holes with and without thread... more
Product specification

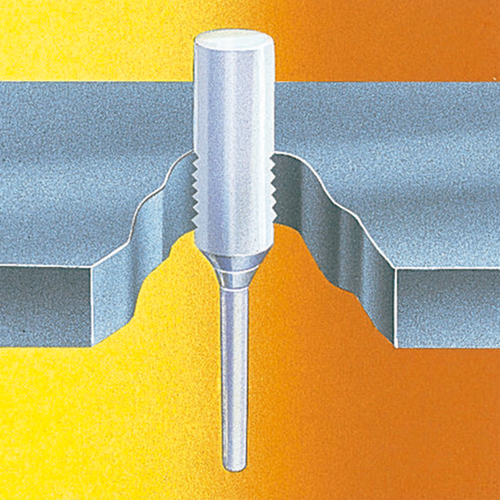

Ideally suitable for marking of through-holes with and without thread
Reusable
Technical specification
Material: silicone (silicone rubber)
Colour: natural
Temperature range: -60 to +230 °C, for a short time +300 °C

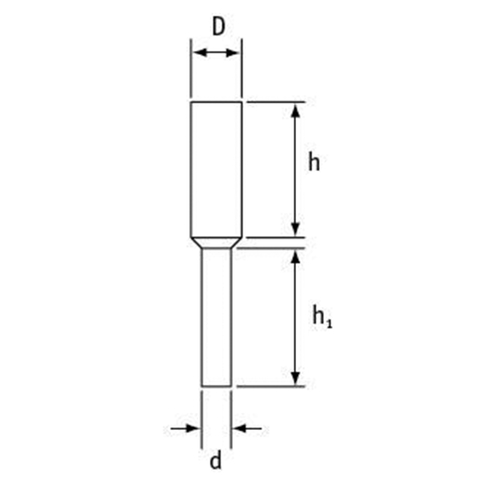

Item | Image |
d mm
|
D mm
|
h mm
|
h1 mm
|
Unit piece
|
Price Euro* | Buy |
---|
Item
|
|
d mm
|
D mm
|
h mm
|
h1 mm
|
Unit piece
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
315542 |
|
1,2 | 1,7 | 15,9 | 15,5 | 5 | 43.00 | |
315543 |
|
1,2 | 1,7 | 15,9 | 15,5 | 15 | 112.00 | |
315544 |
|
1,3 | 2,4 | 17,8 | 17,8 | 5 | 43.00 | |
315545 |
|
1,3 | 2,4 | 17,8 | 17,8 | 15 | 112.00 | |
315546 |
|
2,4 | 3,3 | 16,5 | 17,8 | 5 | 50.00 | |
315547 |
|
2,4 | 3,3 | 16,5 | 17,8 | 15 | 127.00 | |
315548 |
|
2,4 | 4,1 | 15,9 | 14,8 | 5 | 54.00 | |
315549 |
|
2,4 | 4,1 | 15,9 | 14,8 | 15 | 135.00 | |
315550 |
|
2,8 | 5 | 15,9 | 15,9 | 5 | 58.00 | |
315551 |
|
2,8 | 5 | 15,9 | 15,9 | 15 | 146.00 | |
315552 |
|
2,8 | 5 | 25,4 | 25,4 | 5 | 63.00 | |
315553 |
|
2,8 | 5 | 25,4 | 25,4 | 15 | 159.00 | |
315554 |
|
3,3 | 6,5 | 25,4 | 25,4 | 5 | 75.00 | |
315555 |
|
3,3 | 6,5 | 25,4 | 25,4 | 15 | 187.00 | |
315556 |
|
3,9 | 8,5 | 25,4 | 25,4 | 5 | 90.00 | |
315557 |
|
3,9 | 8,5 | 25,4 | 25,4 | 15 | 229.00 | |
315558 |
|
4 | 10,2 | 25,4 | 25,4 | 5 | 103.00 | |
315559 |
|
4 | 10,2 | 25,4 | 25,4 | 15 | 253.00 | |
315560 |
|
6,4 | 11,9 | 25,4 | 25,4 | 5 | 127.00 | |
315561 |
|
6,4 | 11,9 | 25,4 | 25,4 | 15 | 309.00 | |
315562 |
|
6,4 | 13,5 | 25,4 | 25,4 | 5 | 148.00 | |
315563 |
|
6,4 | 13,5 | 25,4 | 25,4 | 15 | 358.00 |
