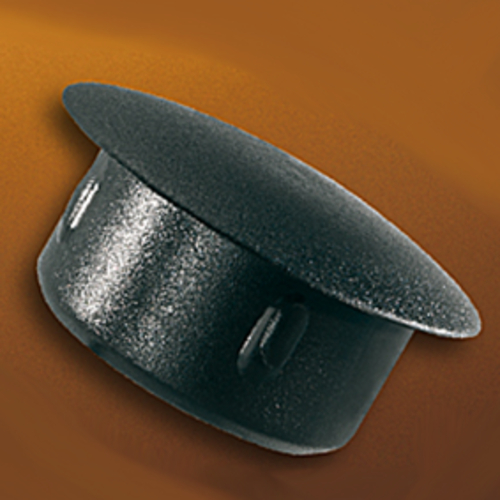

Cover Plug made of LDPE - with burls

Preview: Cover Plug made of LDPE - with burls Preview: Cover Plug made of LDPE - with burls
Cover Plug made of LDPE - with burls
Cover Plug made of LDPE - with burls


Description General Information
Description
Product specification Protect pipes from ingress of water and other materials Chemical... more
Close menu

Product specification

Protect pipes from ingress of water and other materials

Chemical features:

Resistant to weak and strong alkalis and acids, except oxidizing acids, and only relatively suitable for hydrofluoric acid; resistant to organic acids, aliphatic hydrocarbons and organic solvents below +60 °C.

Resistance to weather:

The material degrades when exposed to direct sunlight

Technical specification

Material: LDPE (low density polyethylene, soft)

Colour: black or white

Density: 0.94 - 0.962 g/cm3

Temperature range: -50 to +80 °C, for a short time +100 °C

Tensile modulus: 700 - 1,400 N/mm2

Tensile strength: 18 - 35 N/mm2

Tearing strength: 25 - 32 MPa (DIN 53455)

Elongation at break: 100 - 1,000 % (DIN 53455)

Impact resistance: +20 °C: without break (DIN 53453); -40 °C: 350 kJ/m2 (DIN 53448)

Ball pressure hardness (10-sec. value): 40 - 60 N/mm2 (DIN 53456)

Surface resistance: 1014 Ohm (DIN 53482)

Volume resistivity: >1017 Ohm x cm (DIN 53482)

Dielectric strength: 30 - 40 kV/mm

Dielectric constant: approx. 2.4 at 100 Hz

Water absorption: 0.05 % (at +23 °C)

Flammability rating: UL 94 HB

General Information
more
Close menu
No additional information available.
