Product specification
High-quality materials
High impact toughness
High mechanical stability
Good temperature resistance
High chemical resistance
Technical specification
Material of flow body:
Housing lower part: PVDF (polyvinylidene fluoride)
Housing upper part: PP (polypropylene), glass fibre-reinforced
Shaped diaphragm: PTFE (polytetrafluoroethylene) on media side, with vulcanized-in, extremely tearing-resistant fabric insert

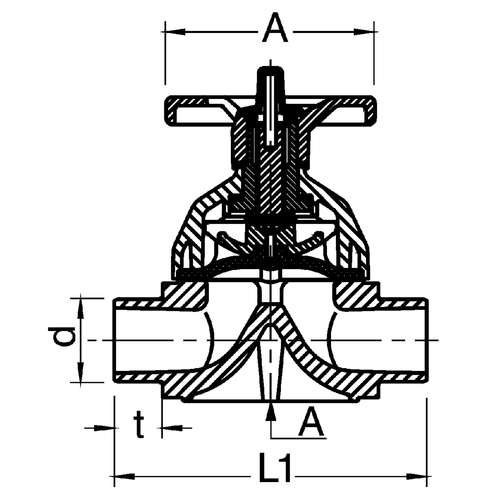

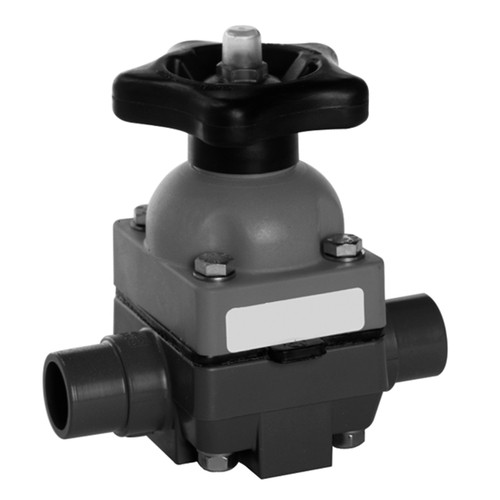

Valve type: diaphragm valve
Flow direction: optional
Mounting position: optional
Max. operating pressure: 10 bar at +20 °C
Installation size: DN 15 to DN 50
Media: neutral and aggressive liquid and gaseous media, also with solids content with concentration commonly used in process engineering
Max. temperature:
Flow body: +20 °C
Diaphragm: -40 to +120 °C
Connection: welding spigot according to DIN 16962 or screw joint with welded socket or PP/ steel flange
General Information
Use for chemical and pharmaceutical industry, environmental technology and process engineering, surface engineering, water treatment technology and sewage technology, plant and apparatus construction.
High flow rates or kv-values
Low flow resistance
Increased endurance strength
Good chemical resistance
Safe in operation and low-maintenance
| Item | Image |
NW mm
| Connection |
PN1 bar
| Werkstoff Membran |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Connection
|
PN1 bar
|
Werkstoff Membran
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 350534 |
|
15 | Schweißstutzen (Stumpf/Muffe) 20 mm | 10 | PTFE | 1 | 1,037.00 | |
| 350535 |
|
20 | Schweißstutzen (Stumpf/Muffe) 25 mm | 10 | PTFE | 1 | 1,053.00 | |
| 350536 |
|
25 | Schweißstutzen (Stumpf/Muffe) 32 mm | 10 | PTFE | 1 | 1,139.00 | |
| 350537 |
|
32 | Schweißstutzen (Stumpf/Muffe) 40 mm | 10 | PTFE | 1 | 1,420.00 | |
| 350538 |
|
40 | Schweißstutzen (Stumpf/Muffe) 50 mm | 10 | PTFE | 1 | 1,888.00 | |
| 350539 |
|
50 | Schweißstutzen (Stumpf/Muffe) 63 mm | 10 | PTFE | 1 | 2,363.00 | |
| 350540 |
|
15 | Verschraubung mit Schweißmuffe 20 mm | 10 | PTFE | 1 | 1,303.00 | |
| 350541 |
|
20 | Verschraubung mit Schweißmuffe 25 mm | 10 | PTFE | 1 | 1,361.00 | |
| 350542 |
|
25 | Verschraubung mit Schweißmuffe 32 mm | 10 | PTFE | 1 | 1,529.00 | |
| 350543 |
|
32 | Verschraubung mit Schweißmuffe 40 mm | 10 | PTFE | 1 | 2,231.00 | |
| 350544 |
|
40 | Verschraubung mit Schweißmuffe 50 mm | 10 | PTFE | 1 | 2,582.00 | |
| 350545 |
|
50 | Verschraubung mit Schweißmuffe 63 mm | 10 | PTFE | 1 | 3,482.00 | |
| 350546 |
|
15 | PP/Stahl-Flansch 20 mm | 10 | PTFE | 1 | 863.00 | |
| 350547 |
|
20 | PP/Stahl-Flansch 25 mm | 10 | PTFE | 1 | 938.00 | |
| 350548 |
|
25 | PP/Stahl-Flansch 32 mm | 10 | PTFE | 1 | 1,018.00 | |
| 350549 |
|
32 | PP/Stahl-Flansch 40 mm | 10 | PTFE | 1 | 1,365.00 | |
| 350550 |
|
40 | PP/Stahl-Flansch 50 mm | 10 | PTFE | 1 | 1,575.00 | |
| 350551 |
|
50 | PP/Stahl-Flansch 63 mm | 10 | PTFE | 1 | 1,993.00 |
[1] at +20 °C
