Product specification
Robust cock housing, cock plug with large outside diameter ensuring ample overlap and reliable sealing.
Handle made of polypropylene
Cock connection with threaded adapter (threaded spigot) on one side and soldered screwed fitting on the other side.
Suitable for gases, liquids, and vapours up to PN 6.
Technical specification
Material: Brass or stainless steel 1.4571
Temperature range: -5 to +50 °C
Max. operating pressure: 6 bar at +20 °C

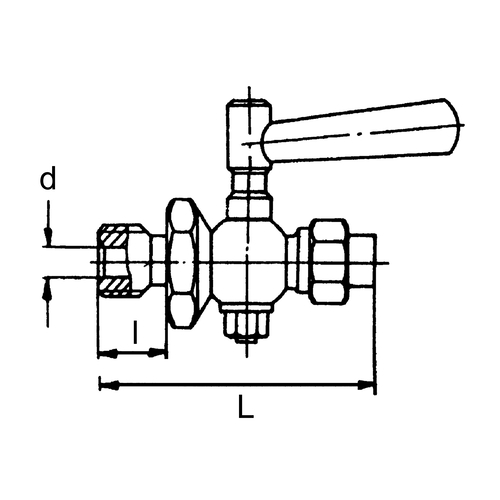

| Item | Image | External thread |
d mm
|
Außen-Ø Lötrohr mm
|
l mm
|
L mm
|
SW mm
| Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
External thread
|
d mm
|
Außen-Ø Lötrohr mm
|
l mm
|
L mm
|
SW mm
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 54506 |
|
R 1/4" | 4 | 6 | 10 | 48 | 19 | Messing | 1 | 50.00 | |
| 54513 |
|
G 1/4" | 4 | 6 | 10 | 56 | 19 | Edelstahl | 1 | 146.00 | |
| 54507 |
|
R 3/8" | 6 | 8 | 10 | 55 | 22 | Messing | 1 | 58.00 | |
| 54514 |
|
G 3/8" | 6 | 8 | 10 | 62 | 22 | Edelstahl | 1 | 162.00 | |
| 54508 |
|
R 1/2" | 8 | 10 | 14 | 65 | 27 | Messing | 1 | 61.00 | |
| 54515 |
|
G 1/2" | 8 | 10 | 14 | 76 | 27 | Edelstahl | 1 | 217.00 | |
| 54516 |
|
R 3/4" | 12 | 15 | 16 | 90 | 32 | Edelstahl | 1 | 264.00 | |
| 54517 |
|
R 1" | 15 | 22 | 20 | 105 | 41 | Edelstahl | 1 | 373.00 |
