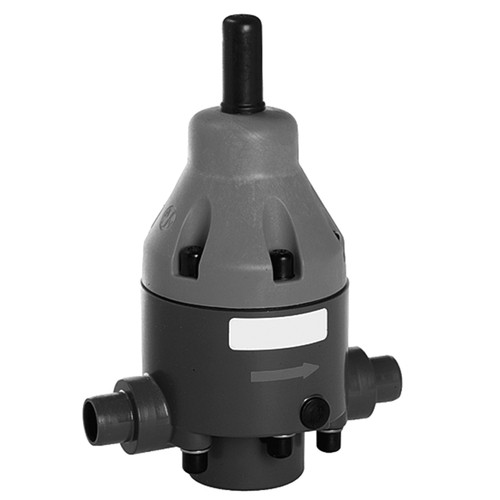

Product specification
Free of plasticizers, therefore physiologically indifferent, no embrittling by leaching
Corrosion and impact resistant, also usable in the outside area.
Technical specification
Material:
Lower valve body: PVC-U (polyvinyl chloride, rigid), grey (RAL 7011)
Upper valve body: PP (polypropylene), glass fibre-reinforced, orange (RAL 2005)
Piston: PVC-U (polyvinyl chloride, rigid)
Separation disc: PVC-U (polyvinyl chloride, rigid)
Diaphragm: EPDM (ethylene-propylene-diene rubber), on media side PTFE (polytetrafluoroethylene)-coated
Valve seat seal: EPDM (ethylene-propylene-diene rubber); FPM (fluorinated rubber)
O-ring sealings of union ends: EPDM (ethylene-propylene-diene rubber); FPM (fluorinated rubber)
Connecting screws: stainless steel 1.4301 (V2A)
Media: technically pure, neutral and aggressive liquids provided that the selected valve materials are resistant at working temperature
Max. temperature: +50 °C
Max. operating pressure: 10 bar at +20 °C
Pressure setting range: 0.3 - 10 bar
Pressure settings: in 0.5 bar steps, between 0.5 and 10 bar
Release pressure: approx. 0.5 bar
Hysteresis: approx. 0.3 bar
Mounting position: optional
Connection: cementing spigot or screw joint with cementing socket
General Information
In process plants for maintenance of working- or system-induced counter pressures as well as for reduction of pressure pulsation. The special diaphragm design and the interaction of diaphragm surface, valve piston and valve seat keep the working pressure at occurring counter pressure almost constant.
As pressurizing valve in metering pumps for guarantee of metering accuracy. In case of counter pressure at the secondary side the preliminary pressure and thus the metering quantity remain constant.
In all working areas where constant pressure is required.

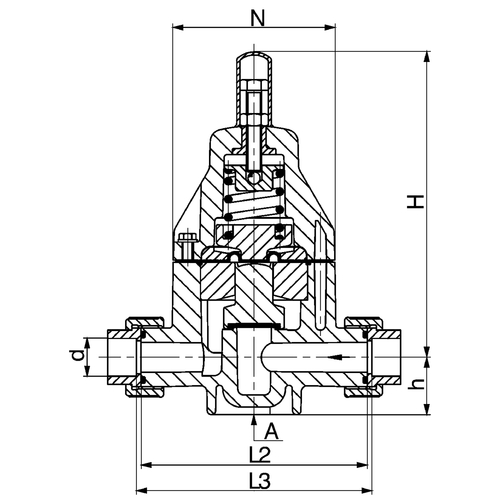

Operating principle:
Does the working pressure or inlet pressure rise above a certain preset pressure value, the pressurized valve piston is lifted against the spring force. The valve opens and a pressure relief on the outlet side takes place. It closes as soon as the working pressure at the valve piston drops below preset spring force. If a system determined counter pressure arises at the secondary side this pressure has an impact on both simultaneously, namely under the diaphram and on the valve piston, i.e. the forces cancel out each other because the diaphragm and the valve mating surface / effective surface are the same size. The valve force and thus the working pressure remain nearly constant.
| Item | Image |
NW mm
| Connection | Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Connection
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 350783 |
|
10 | Klebestutzen 16 mm | EPDM | 1 | 461.00 | |
| 350784 |
|
15 | Klebestutzen 20 mm | EPDM | 1 | 461.00 | |
| 350785 |
|
20 | Klebestutzen 25 mm | EPDM | 1 | 617.00 | |
| 350786 |
|
25 | Klebestutzen 32 mm | EPDM | 1 | 617.00 | |
| 350787 |
|
32 | Klebestutzen 40 mm | EPDM | 1 | 743.00 | |
| 350788 |
|
40 | Klebestutzen 50 mm | EPDM | 1 | 743.00 | |
| 350789 |
|
50 | Klebestutzen 63 mm | EPDM | 1 | 743.00 | |
| 350790 |
|
10 | Verschraubung mit Klebemuffe 16 mm | EPDM | 1 | 502.00 | |
| 350791 |
|
15 | Verschraubung mit Klebemuffe 20 mm | EPDM | 1 | 508.00 | |
| 350792 |
|
20 | Verschraubung mit Klebemuffe 25 mm | EPDM | 1 | 630.00 | |
| 350793 |
|
25 | Verschraubung mit Klebemuffe 32 mm | EPDM | 1 | 649.00 | |
| 350794 |
|
32 | Verschraubung mit Klebemuffe 40 mm | EPDM | 1 | 765.00 | |
| 350795 |
|
40 | Verschraubung mit Klebemuffe 50 mm | EPDM | 1 | 789.00 | |
| 350796 |
|
50 | Verschraubung mit Klebemuffe 63 mm | EPDM | 1 | 818.00 | |
| 350797 |
|
10 | Klebestutzen 16 mm | FPM | 1 | 470.00 | |
| 350798 |
|
15 | Klebestutzen 20 mm | FPM | 1 | 470.00 | |
| 350799 |
|
20 | Klebestutzen 25 mm | FPM | 1 | 596.00 | |
| 350800 |
|
25 | Klebestutzen 32 mm | FPM | 1 | 596.00 | |
| 350801 |
|
32 | Klebestutzen 40 mm | FPM | 1 | 733.00 | |
| 350802 |
|
40 | Klebestutzen 50 mm | FPM | 1 | 733.00 | |
| 350803 |
|
50 | Klebestutzen 63 mm | FPM | 1 | 733.00 | |
| 350804 |
|
10 | Verschraubung mit Klebemuffe 16 mm | FPM | 1 | 513.00 | |
| 350805 |
|
15 | Verschraubung mit Klebemuffe 20 mm | FPM | 1 | 517.00 | |
| 350806 |
|
20 | Verschraubung mit Klebemuffe 25 mm | FPM | 1 | 654.00 | |
| 350807 |
|
25 | Verschraubung mit Klebemuffe 32 mm | FPM | 1 | 682.00 |
