High-Quality Finest Regulating Valve - block form
Application area
Very precise fine regulation of all kinds of liquid and gas flows in the areas of chemical process engineering, analycal technology, biotechnology, chemical nuclear technology, medical engineering amd environmental technology
Product specification

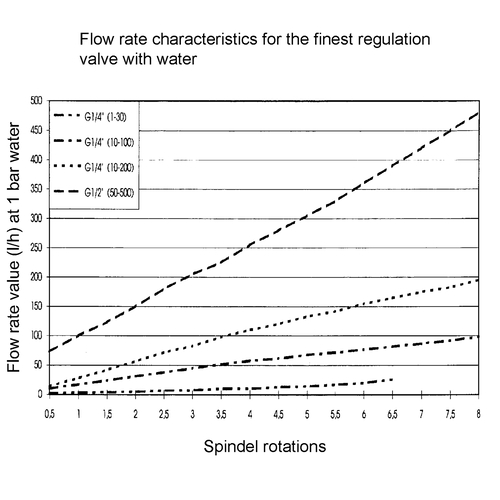

Manually adjustable finest control valve with precision stem, strongly linear regulation characteristics, made of proven, chemically resistant and biocompatible plastic materials, chemically sterilizable, prepared for mounting into fixed piping with standardized internal thread according to DIN ISO 228.
Technical specification
Material: PP (polypropylene), PVDF (polyvinylidene fluoride) or PTFE (polytetrafluoroethylene)
Flow range:
for water (Δp=1 bar): 1-30 l/h; 10-100 l/h; 10-200 l/h; 50-500 l/h
for air (Δp=1 bar): 3-150 l/h; 40-675 l/h; 80-1150 l/h; 500-3,000 l/h
Connection: G 1/4”or G 1/2” (internal thread)
Construction sizes:
G 1/4": a = 24 mm; b = 36 mm; I = 49 mm; h = 112 mm; s = 25 mm; d = 6.6 mm
G 1/2": a = 34 mm; b = 48 mm; I = 66 mm; h = 124 mm; s= 30 mm; d = 6.6 mm
Item | Image |
Max. flow rate liquids l/h
|
max. Durchfluss Gase l/h
|
NW mm
| Innengewinde | Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Max. flow rate liquids l/h
|
max. Durchfluss Gase l/h
|
NW mm
|
Innengewinde
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
16550 |
|
30 | 150 | 3 | G 1/4" | PP | 1 | 312.00 | |
16551 |
|
100 | 675 | 4 | G 1/4" | PP | 1 | 312.00 | |
16552 |
|
200 | 1.150 | 4 | G 1/4" | PP | 1 | 312.00 | |
16553 |
|
500 | 3.000 | 10 | G 1/2" | PP | 1 | 366.00 | |
16554 |
|
30 | 150 | 3 | G 1/4" | PVDF | 1 | 563.00 | |
16555 |
|
100 | 675 | 4 | G 1/4" | PVDF | 1 | 563.00 | |
16556 |
|
200 | 1.150 | 4 | G 1/4" | PVDF | 1 | 563.00 | |
16557 |
|
500 | 3.000 | 10 | G 1/2" | PVDF | 1 | 655.00 | |
16558 |
|
30 | 150 | 3 | G 1/4" | PTFE | 1 | 571.00 | |
16559 |
|
100 | 675 | 4 | G 1/4" | PTFE | 1 | 571.00 | |
16560 |
|
200 | 1.150 | 4 | G 1/4" | PTFE | 1 | 571.00 | |
16561 |
|
500 | 3.000 | 10 | G 1/2" | PTFE | 1 | 803.00 |
