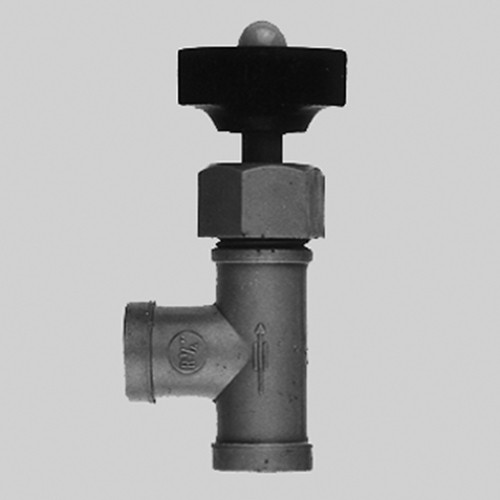

Angle Valve made of PP or PVDF
Product specification 2-way; angle; G-internal thread on both sides more
Product specification
2-way; angle; G-internal thread on both sides
General Information The Shut-off valves are available with straight or angled design. By... more
General Information
The Shut-off valves are available with straight or angled design. By screwing in the spindle the media flow is reliably shut-off. The valves are available in different materials for usage with aggressive media. They have a female thread on both sides and can thus be used with various connecting elements.
Tightness test in accordance with DIN 3230, very high quality control
Low wear valve seat
Flow optimised design
Suitable for wall mounting

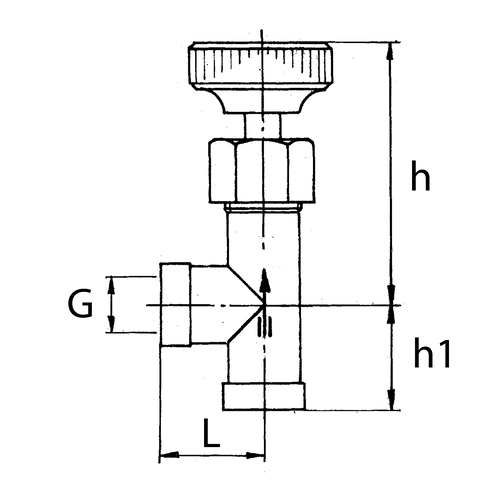

Item | Image |
NW mm
| Internal thread |
L mm
|
h mm
|
h1 mm
| Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
NW mm
|
Internal thread
|
L mm
|
h mm
|
h1 mm
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
23573 |
|
4 | G 1/4" | 26 | 68 | 23 | PP | 3 | 149.00 | |
23574 |
|
4 | G 1/4" | 26 | 68 | 23 | PVDF | 1 | 139.00 | |
23576 |
|
6 | G 3/8" | 28 | 100 | 28 | PP | 1 | 80.00 | |
23577 |
|
6 | G 3/8" | 28 | 100 | 28 | PVDF | 1 | 162.00 | |
23579 |
|
8 | G 1/2" | 33 | 106 | 33 | PP | 1 | 87.00 | |
23580 |
|
8 | G 1/2" | 33 | 106 | 33 | PVDF | 1 | 240.00 |
