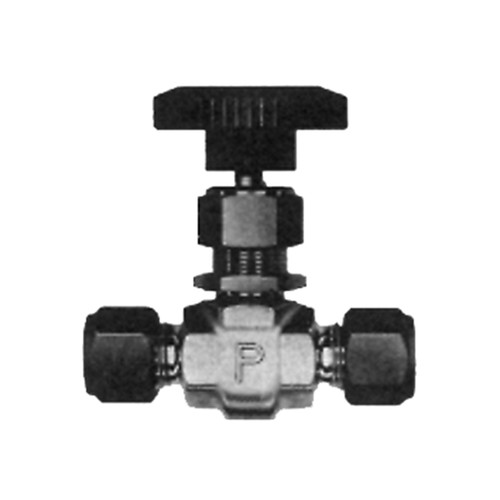

Needle Valve made of Brass or Stainless Steel with Screw Joints

Needle Valve made of Brass or Stainless Steel with Screw Joints

Description General Information
Description
Product specification Needle valve with through bore made of brass and stainless steel 1.4401... more
Close menu

Product specification

Needle valve with through bore made of brass and stainless steel 1.4401 (SS 316, US standard) with PTFE gasket for connection of standard capillaries.

The needle valves are available with various stems:

Type R: Cone stem 30°

Type N: Regulating stem 2.5°

Type K: Stem with interchangeable PCTFE soft seat

Fitted with cutting ring fitting joints on both sides. This method of sealing ensures almost zero dead volume.

Technical specification

Max. operating pressure:

Brass 210 bar at +20 °C

Stainless steel 350 bar at +20 °C

General Information
more
Close menu
No additional information available.
