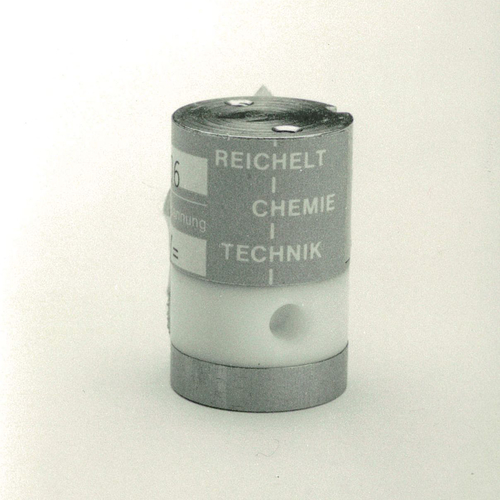

2/2-Way Mini Solenoid Valve made of PTFE
Technical specification
Valve type: 2/2-way poppet valve
Internal volume: 20 - 713 µl (from port to port)
General Information

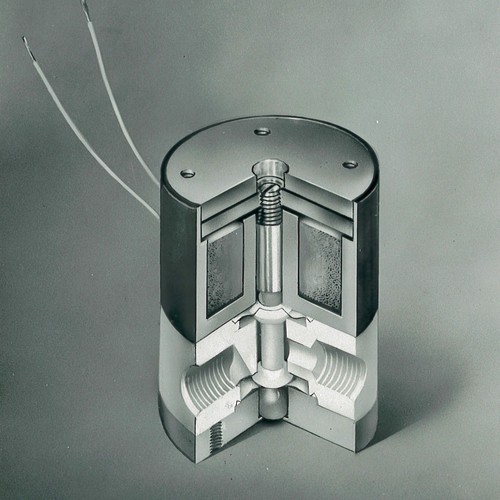

Small valves for applications, where high purity is required, as well as for corrosive media. The THOMAFLUID®-mini solenoid valves are constructed in the seating principle, the solenoid inner parts being separated from medium by a PTFE diaphragm.
All medium-contacting components made of PTFE
Long service life
Small internal volume
Short response time
Small construction size
Low power consumption
Zero dead volume
Extremely light weight
Material:
Housing: steel (electrical part)
Valve body: PTFE (polytetrafluoroethylene)
Gasket: PTFE (polytetrafluoroethylene)
Mounting position: optional
Valve type: poppet valve
Media handled: neutral and aggressive gases and liquids, no solid matters
Max. temperature of medium: -10 to +70 °C
Max. ambient temperature: -10 to +70 °C
Gas pressure range: vacuum to 2 bar
Liquid pressure range: vacuum to 2 bar
Response time: 20 ms max. (on); 30 ms max. (off)
Function: normally closed (NC) or normally open (NO)
Item | Image |
Internal volume µl
|
NW mm
|
Spannung Volt
| Innengewinde |
Einheit Stück
| Funktion1 |
Leistungsaufnahme W
|

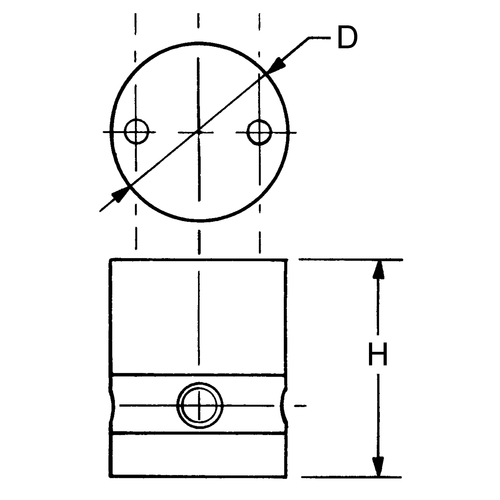

D mm
|
H mm
|
Price Euro* | Buy |
---|
Item
|
|
Internal volume µl
|
NW mm
|
Spannung Volt
|
Innengewinde
|
Einheit Stück
|
Funktion1
|
Leistungsaufnahme W
|
D mm
|
H mm
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
87300 |
|
20 | 1 | 12= | UNF 10-32 | 1 | NC | 1,15 | 19 | 29 | 329.00 | |
87301 |
|
20 | 1 | 24= | UNF 10-32 | 1 | NC | 1,15 | 19 | 29 | 329.00 | |
87310 |
|
57 | 1,6 | 12= | UNF 1/4"-28 | 1 | NC | 1,5 | 26 | 38 | 461.00 | |
87311 |
|
57 | 1,6 | 24= | UNF 1/4"-28 | 1 | NC | 1,5 | 26 | 38 | 461.00 | |
87312 |
|
157 | 2,4 | 12= | UNF 1/4"-28 | 1 | NC | 4,2 | 32 | 47 | 587.00 | |
87313 |
|
157 | 2,4 | 24= | UNF 1/4"-28 | 1 | NC | 4,2 | 32 | 47 | 587.00 | |
87315 |
|
713 | 4 | 12= | NPT 1/8" | 1 | NC | 7,2 | 38 | 54 | 729.00 | |
87316 |
|
713 | 4 | 24= | NPT 1/8" | 1 | NC | 7,2 | 38 | 54 | 729.00 | |
87303 |
|
20 | 1 | 12= | UNF 10-32 | 1 | NO | 1,15 | 19 | 29 | 351.00 | |
87304 |
|
20 | 1 | 24= | UNF 10-32 | 1 | NO | 1,15 | 19 | 29 | 351.00 | |
87319 |
|
57 | 1,6 | 12= | UNF 1/4"-28 | 1 | NO | 1,6 | 26 | 38 | 461.00 | |
87320 |
|
57 | 1,6 | 24= | UNF 1/4"-28 | 1 | NO | 1,6 | 26 | 38 | 461.00 | |
87321 |
|
157 | 2,4 | 12= | UNF 1/4"-28 | 1 | NO | 4,2 | 32 | 47 | 587.00 | |
87322 |
|
157 | 2,4 | 24= | UNF 1/4"-28 | 1 | NO | 4,2 | 32 | 47 | 587.00 | |
87324 |
|
713 | 4 | 12= | NPT 1/8" | 1 | NO | 7,2 | 38 | 54 | 729.00 | |
87325 |
|
713 | 4 | 24= | NPT 1/8" | 1 | NO | 7,2 | 38 | 54 | 729.00 |
[1] NC = normally closed; NO = normally open
