Application area
Operation of conveying lines for liquid (water, oil) or gaseous particle-free media in laboratory units and pilot plants.
Product specification

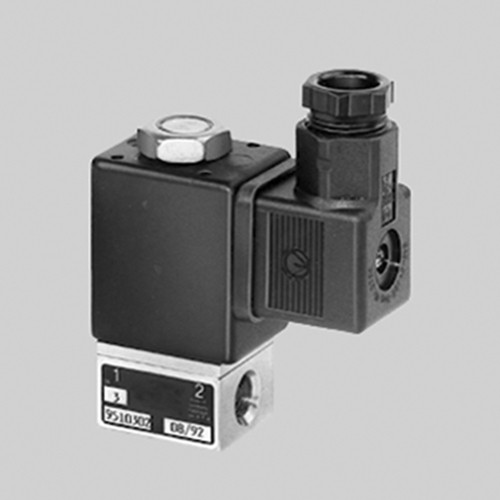

Pressure- and vacuum-resistant 2/2-way valves of compact construction, maintenance-free, with direct acting, solenoid-operated poppet valves, for screwed pipe joints in any installation positon, for direct voltage.
Technical specification
Material:
Housing: stainless steel 1.4401, AISI 316; item 16498: stainless steel 1.4104
Inner parts: stainless steel 1.4404
Pipe connection: G 1/8" or G 1/4"
Flow direction: determined
Max. operating pressure: 12 bar at +20 °C
Max. viscosity: 40 cSt mm2/s
Max. temperature of medium: -10 to +100 °C
Max. ambient temperature: +60 °C
Function: normally closed (NC)
Voltage: 24 V=
Power consumption: up to DN 2.4 = 5.5 W; DN 3 = 7 W
Isolation class (magnet): F
Switching time (magnet): 5 to 10 ms
Protection category: IP 65 (EN 60529)
Mounting position: optional
| Item | Image |
NW mm
|
Max. flow rate liquids2 l/h
|
max. Betr.-Druck1 bar
| Werkstoff Dichtung | Innengewinde |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Max. flow rate liquids2 l/h
|
max. Betr.-Druck1 bar
|
Werkstoff Dichtung
|
Innengewinde
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 16493 |
|
1,6 | 80 | 12 | EPDM | G 1/8" | 1 | 234.00 | |
| 16494 |
|
1,6 | 80 | 12 | FPM | G 1/8" | 1 | 241.00 | |
| 16495 |
|
2,4 | 130 | 4 | EPDM | G 1/8" | 1 | 234.00 | |
| 16496 |
|
2,4 | 130 | 4 | FPM | G 1/8" | 1 | 241.00 | |
| 16498 |
|
3 | 280 | 8 | FPM | G 1/4" | 1 | 294.00 |
[1] at +20 °C, operable pressure difference [2] Water Δp 1 bar
