Product specification
High impact resistance, but sensitive to impact in the cold
High mechanical stability
Good chemical resistance
Self-extinguishing after removal of ignition source
Technical specification
Material:
Housing, Ball: PVC-U (rigid polyvinyl chloride)
Ball stud, Screw-in component: PVC-U (rigid polyvinyl chloride)
Cap nut, Insert: PVC-U (rigid polyvinyl chloride)
Ball seal: PTFE (polytetrafluoroethylene)
Sealing elements: EPDM (ethylene-propylene-diene rubber);FPM (fluorinated rubber)
Hand lever: PVC-U (rigid polyvinyl chloride)
Connection: cementing socket, GRP flange or PE spigot
General Information

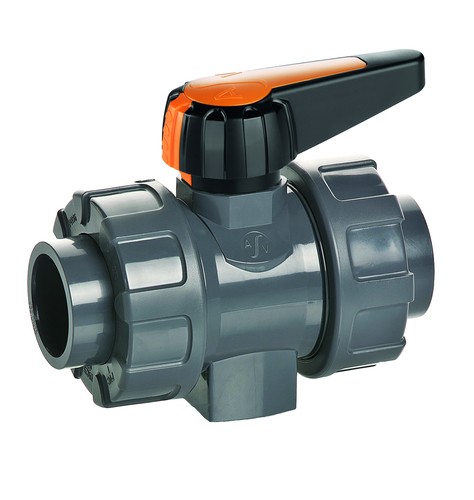

Dismountable ball valve made of high-quality materials for applications with higher material requirements. All components meet the requirements of DIN 3441/3442 and the German Institution for Technical Approvals in Construction Industry (DIBT - Deutsches Institut für Bautechnik).
The ball valve can be manually operated by a hand lever, which also serves as distinctive position indicator. All commercial electrical or pneumatic actuators according to DIN ISO 5211 can be used as well.
Easy connection of the valve to the piping due to use of proven bonding and welding processes. The radial disassembly is also possible after the installation.
High-quality materials
Long service life
Increased endurance strength
Low, constant torque
Reliable and low-maintenance
Media: for neutral and aggressive media
Max. operating pressure: 16 bar (at +20 °C water)
Temperature range: PVC-U up to 0 to +60 °C; PP up to +5 to +80 °C; PVDF up to -30 to +140 °C; EPDM up to -30 to +140 °C; FPM up to -30 to +140 °C
Construction size: DN 10 to DN 50
Examinations: DIN 3230, DIN 3441, DIN 3442, DIN 16962 and DIN 8063
Information: Plastic and elastomer components are not resistant to synthetic or mineral oils, solvents and detergents.
| Item | Image |
NW mm
| Connection |
PN1 bar
| Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Connection
|
PN1 bar
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 350322 |
|
10 | Klebemuffe 16 mm | 16 | EPDM | 1 | 63.00 | |
| 350323 |
|
15 | Klebemuffe 20 mm | 16 | EPDM | 1 | 65.00 | |
| 350324 |
|
20 | Klebemuffe 25 mm | 16 | EPDM | 1 | 73.00 | |
| 350325 |
|
25 | Klebemuffe 32 mm | 16 | EPDM | 1 | 82.00 | |
| 350326 |
|
32 | Klebemuffe 40 mm | 16 | EPDM | 1 | 101.00 | |
| 350327 |
|
40 | Klebemuffe 50 mm | 16 | EPDM | 1 | 129.00 | |
| 350328 |
|
50 | Klebemuffe 63 mm | 16 | EPDM | 1 | 148.00 | |
| 350329 |
|
10 | GFK-Flansch 16 mm | 16 | EPDM | 1 | 101.00 | |
| 350330 |
|
15 | GFK-Flansch 20 mm | 16 | EPDM | 1 | 105.00 | |
| 350331 |
|
20 | GFK-Flansch 25 mm | 16 | EPDM | 1 | 118.00 | |
| 350332 |
|
25 | GFK-Flansch 32 mm | 16 | EPDM | 1 | 137.00 | |
| 350333 |
|
32 | GFK-Flansch 40 mm | 16 | EPDM | 1 | 152.00 | |
| 350334 |
|
40 | GFK-Flansch 50 mm | 16 | EPDM | 1 | 187.00 | |
| 350335 |
|
50 | GFK-Flansch 63 mm | 16 | EPDM | 1 | 232.00 | |
| 350336 |
|
10 | PE-Stutzen 16 mm | 10 | EPDM | 1 | 80.00 | |
| 350337 |
|
15 | PE-Stutzen 20 mm | 10 | EPDM | 1 | 84.00 | |
| 350338 |
|
20 | PE-Stutzen 25 mm | 10 | EPDM | 1 | 84.00 | |
| 350339 |
|
25 | PE-Stutzen 32 mm | 10 | EPDM | 1 | 103.00 | |
| 350340 |
|
32 | PE-Stutzen 40 mm | 10 | EPDM | 1 | 129.00 | |
| 350341 |
|
40 | PE-Stutzen 50 mm | 10 | EPDM | 1 | 152.00 | |
| 350342 |
|
50 | PE-Stutzen 63 mm | 10 | EPDM | 1 | 185.00 | |
| 350343 |
|
10 | Klebemuffe 16 mm | 16 | FPM | 1 | 78.00 | |
| 350344 |
|
15 | Klebemuffe 20 mm | 16 | FPM | 1 | 82.00 | |
| 350345 |
|
20 | Klebemuffe 25 mm | 16 | FPM | 1 | 86.00 | |
| 350346 |
|
25 | Klebemuffe 32 mm | 16 | FPM | 1 | 103.00 |
