Product specification
High impact resistance, but sensitive to impact in the cold
High mechanical stability
Good chemical resistance
Self-extinguishing after removal of ignition source
Technical specification
Material:
Housing, Ball: PVC-U (rigid polyvinyl chloride)
Ball stud, Cap nut: PVC-U (rigid polyvinyl chloride)
Insert: PVC-U (rigid polyvinyl chloride)
Ball seat: PTFE (polytetrafluoroethylene)
Ball seal: EPDM (ethylene-propylene-diene rubber)
Hand lever: PVC-U (rigid polyvinyl chloride)
Connection: cementing socket
General Information

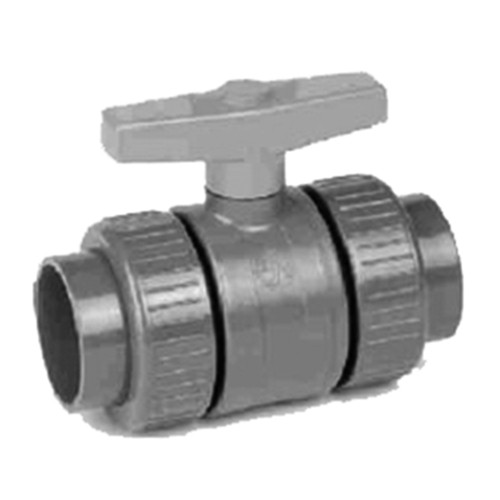

One-piece, compact welded ball valve made of high-quality materials for applications with higher material requirements. The ball seals made of EPDM are flush safe due to modern compact welding.
The ball valve can be manually operated by a hand lever, which also serves as distinctive position indicator. All commercial electrical or pneumatic actuators according to DIN ISO 5211 can be used as well.
Flexible connection by connecting thread according to DIN 8063. Easy connection of the valve to the piping due to use of proven bonding and welding processes. Radial disassembly even after installation.
High-quality materials
Long service life
Highest endurance strength
Low, constant torque
Reliable and low-maintenance
Media: for neutral and aggressive media
Max. operating pressure: 10 bar (at +20 °C water)
Temperature range:
PVC-U 0 to +60 °C
PP +5 to +80 °C
EPDM -30 to +140 °C
Construction size: DN 20 to DN 50
| Item | Image |
NW mm
| Connection |
PN1 bar
| Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Connection
|
PN1 bar
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 350307 |
|
15 | Klebemuffe 20 mm | 16 | EPDM | 1 | 59.00 | |
| 350308 |
|
20 | Klebemuffe 25 mm | 16 | EPDM | 1 | 72.00 | |
| 350309 |
|
25 | Klebemuffe 32 mm | 16 | EPDM | 1 | 95.00 | |
| 350310 |
|
32 | Klebemuffe 40 mm | 16 | EPDM | 1 | 114.00 | |
| 350311 |
|
40 | Klebemuffe 50 mm | 16 | EPDM | 1 | 143.00 | |
| 350312 |
|
50 | Klebemuffe 63 mm | 16 | EPDM | 1 | 181.00 |
[1] at +20 °C
