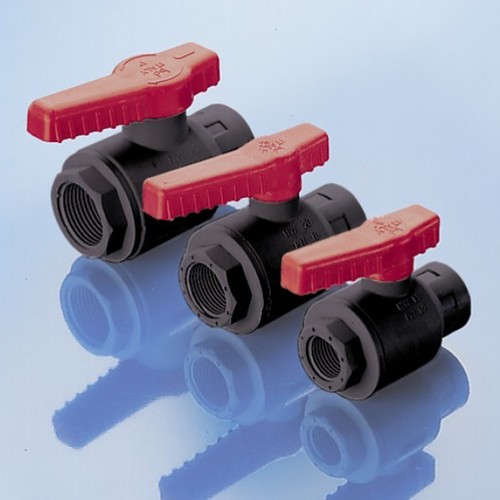

Product specification
With red rotary handle and cylindrical G-internal thread on both sides
Suitable for solidifying media
Technical specification
Material: made of glass fibre reinforced PP (polypropylene)
Colour: black
Gasket: PTFE (polytetrafluoroethylene) and FPM (fluorinated rubber)
Max. operating pressure: 4 bar at +20 °C
Temperature range: -20 to +80 °C

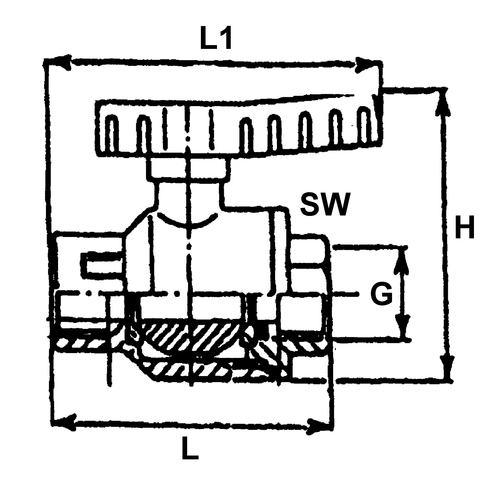

| Item | Image |
NW mm
| Internal thread |
H mm
|
L mm
|
L1 mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Internal thread
|
H mm
|
L mm
|
L1 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|
| 14288 |
|
15 | G 1/2" | 78 | 75 | 93 | 30 | 1 | 91.00 | |
| 14289 |
|
20 | G 3/4" | 87 | 83 | 109 | 38 | 1 | 102.00 | |
| 14290 |
|
25 | G 1" | 96 | 93 | 133 | 41 | 1 | 127.00 |
