Product specification
Shut-off cock for pressure- and temperature-loaded conveying lines in technical pilot plants and industrial plants for conveyance of compressed air, mineral oils, petrols, steam, natural gas etc.

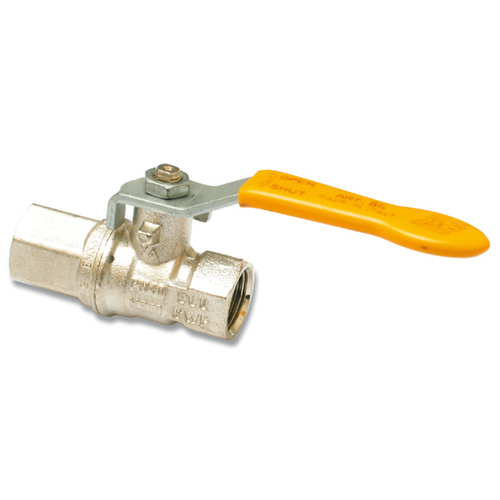

Universally usable, maintenance-free straight-way ball cock, DVGW-approved, sleeves on both sides, G-connecting thread according to DIN 259/DIN 2999.
Material:
Cock plug: brass, hard-chrome plated
Housing: brass, compression moulded, sand-blasted, and nickel-plated
Control shaft: brass, nickel-plated
Ball seal: PTFE (Polytetrafluoroethylene)
Stem seal: FPM (fluorinated rubber)
Control handle: steel, zinc-plated and plasticized
Stop: 90°
Temperature range: -40 to +170 °C

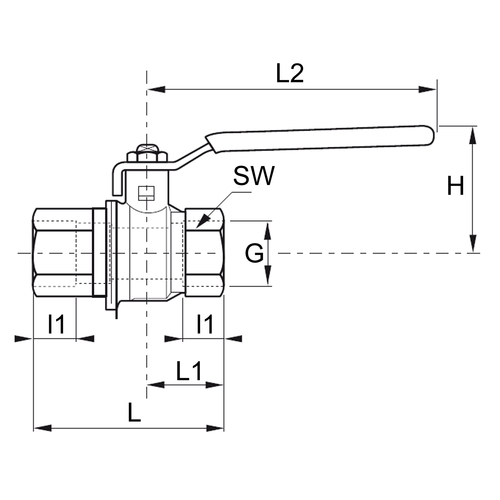

| Item | Image | Internal thread |
NW mm
|
PN1 bar
|
H mm
|
l1 mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Internal thread
|
NW mm
|
PN1 bar
|
H mm
|
l1 mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46428 |
|
G 1/4" | 8 | 30 | 38 | 12 | 50 | 25 | 82 | 20 | 1 | 33.00 | |
| 46429 |
|
G 3/8" | 10 | 30 | 38 | 12 | 60 | 25 | 82 | 20 | 1 | 33.00 | |
| 46430 |
|
G 1/2" | 15 | 30 | 43 | 15,5 | 75 | 32,5 | 100 | 25 | 1 | 39.00 | |
| 46431 |
|
G 3/4" | 20 | 30 | 50 | 17 | 80 | 39 | 120 | 32 | 1 | 51.00 | |
| 46432 |
|
G 1" | 25 | 30 | 54 | 21 | 90 | 47,5 | 120 | 41 | 1 | 73.00 | |
| 46433 |
|
G 1 1/4" | 32 | 30 | 73 | 23 | 110 | 59 | 158 | 50 | 1 | 100.00 | |
| 46434 |
|
G 1 1/2" | 40 | 30 | 79 | 23 | 120 | 71,5 | 158 | 55 | 1 | 137.00 | |
| 46435 |
|
G 2" | 50 | 30 | 86 | 26,5 | 140 | 86 | 158 | 70 | 1 | 193.00 |
[1] at +20 °C
