Bevel Gear made of Steel - spiral tooth system
Application area
Plant construction, engineering
Product specification
Form-true bevel-gear sets for high loads

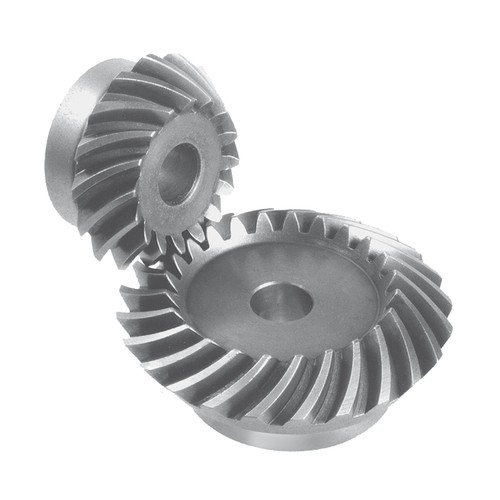

Spiral toothed bevel-gear set made of steel for shaft angle 90º
Module 0.6 / 1.0 / 1.3 / 1.5 / 2.0.
The bevel gears only run as a pair at the stated ratio
Sold in sets / pairs only. The appropriate counter gear is included
Teeth hardened (bores not hardened for further processing)
Very high mechanical strength properties
The spiral tooth system offers very quiet running as there are always several teeth in mesh.
Good temperature resistance
Notes on mounting:

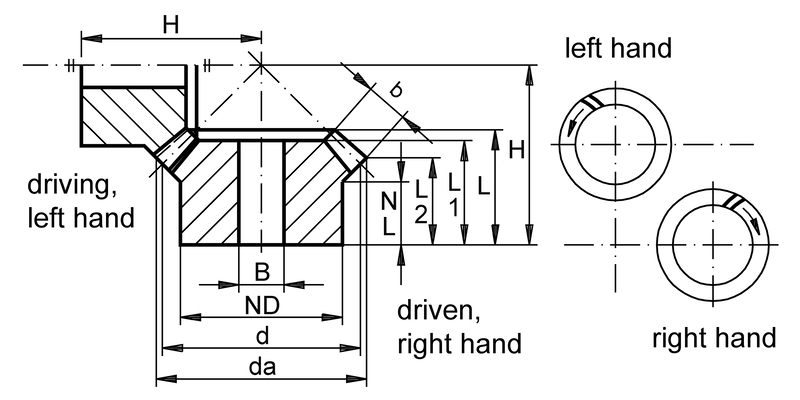

If the transmission ratio is not 1:1, the rotational direction marked on the drawing above should be preferred (more favourable direction of the axial forces).
Technical specification
Material:
Module 0.6 to 1.5: cyclo-palloid spiral tooth system made of steel 42CrMo4, teeth induction hardened
Module 2.0: palloid spiral tooth system made of steel 16MnCr5, teeth case hardened
Teeth:
Type: spiral tooth system, milled and hardened
Tooth quality: 8 modelled on DIN 3967
Item | Image | Transmission ratio (x:1) | Modul | Zähne |
Zahnbreite (b) mm
| passendes Kegelrad |
L2 mm
|
Bohrung (B) mm
|
H mm
|
zul. MD Nm
|
Kopfkreis Ø (da) mm
|
Teilkreis Ø (d0) mm
|
Naben Ø (ND) mm
|
Naben-Länge (NL) mm
|
L1 mm
|
L mm
|
Einheit Satz
|
Price Euro* | Buy |
---|
Item
|
|
Transmission ratio (x:1)
|
Modul
|
Zähne
|
Zahnbreite (b) mm
|
passendes Kegelrad
|
L2 mm
|
Bohrung (B) mm
|
H mm
|
zul. MD Nm
|
Kopfkreis Ø (da) mm
|
Teilkreis Ø (d0) mm
|
Naben Ø (ND) mm
|
Naben-Länge (NL) mm
|
L1 mm
|
L mm
|
Einheit Satz
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
704829 |
|
1 | 0,6 | 25 | 6 | 9,2 | 6 | 20 | 2,1 | 23,3 | 22,5 | 19 | 7,2 | 12 | 13,4 | 1 | 632.00 | ||
704830 |
|
1 | 0,6 | 30 | 7 | 9,9 | 8 | 23 | 3 | 27,8 | 27 | 22 | 7 | 13 | 14,9 | 1 | 650.00 | ||
704831 |
|
1 | 0,6 | 35 | 8 | 10,6 | 8 | 26 | 3,5 | 32,3 | 31,5 | 25 | 7,2 | 15 | 16,3 | 1 | 808.00 | ||
704832 |
|
1 | 1 | 20 | 8 | 11,7 | 8 | 26 | 6,3 | 31,4 | 30 | 25 | 8,4 | 15 | 17,3 | 1 | 570.00 | ||
704833 |
|
1 | 1 | 25 | 10 | 11,9 | 10 | 30 | 10 | 38,9 | 37,5 | 25 | 8 | 16 | 19 | 1 | 758.00 | ||
704834 |
|
1 | 1 | 30 | 12 | 13,2 | 10 | 35 | 14,3 | 46,4 | 45 | 30 | 8 | 19 | 21,7 | 1 | 844.00 | ||
704835 |
|
1 | 1,3 | 20 | 11 | 12,9 | 10 | 32 | 14,8 | 41,8 | 40 | 30 | 7,3 | 19 | 20,7 | 1 | 882.00 | ||
704836 |
|
1 | 1,3 | 25 | 14 | 11,9 | 10 | 36 | 18,5 | 51,8 | 50 | 30 | 8 | 19 | 21,8 | 1 | 952.00 | ||
704837 |
|
1 | 1,3 | 30 | 16 | 12,9 | 12 | 42 | 31,5 | 61,8 | 60 | 35 | 8 | 21 | 24,2 | 1 | 1,332.00 | ||
704838 |
|
1 | 1,5 | 18 | 10 | 13,2 | 10 | 32 | 15,9 | 41,7 | 39,6 | 30 | 8 | 17 | 20,3 | 1 | 798.00 | ||
704839 |
|
1 | 1,5 | 24 | 14 | 12,7 | 10 | 38 | 21,2 | 54,9 | 52,8 | 35 | 8 | 20 | 22,6 | 1 | 946.00 | ||
704840 |
|
1 | 1,5 | 28 | 14 | 13,3 | 12 | 43 | 34,5 | 63,7 | 61,6 | 40 | 8 | 20 | 23,2 | 1 | 1,140.00 | ||
704842 |
|
1 | 2,236 | 24 | 14 | 23,71 | 16 | 60 | 72,8 | 79 | 78 | 45 | 15 | 29 | 32,48 | 1 | 1,296.00 | ||
704843 |
|
1,214 | 1,5 | 14 | 11,5 | 704844 | 15,36 | 12 | 38 | 14,1 | 41,02 | 38,71 | 22 | 11 | 21,14 | 24,24 | 1 | 570.00 | |
704844 |
|
1,214 | 1,5 | 17 | 11,5 | 704843 | 16,6 | 15 | 34,8 | 17,1 | 48,91 | 47 | 30 | 11 | 20,91 | 23,91 | 1 | 570.00 | |
704845 |
|
1,385 | 1,5 | 13 | 10 | 704846 | 15,88 | 12 | 38,5 | 11,3 | 36,72 | 33,94 | 22 | 11 | 21,59 | 23,99 | 1 | 626.00 | |
704846 |
|
1,385 | 1,5 | 18 | 10 | 704845 | 19,05 | 15 | 34,8 | 15,7 | 48,51 | 47 | 30 | 11 | 20,9 | 24,9 | 1 | 626.00 | |
704847 |
|
1,5 | 0,6 | 22 | 7 | 704848 | 8,5 | 6 | 23 | 2,2 | 20,8 | 19,8 | 17 | 7 | 13 | 14,3 | 1 | 694.00 | |
704848 |
|
1,5 | 0,6 | 33 | 7 | 704847 | 11,6 | 8 | 21 | 3,3 | 30,3 | 29,7 | 20 | 8 | 14 | 15,5 | 1 | 694.00 | |
704849 |
|
1,5 | 1 | 20 | 10 | 704850 | 10 | 8 | 32 | 8,1 | 31,6 | 30 | 25 | 8 | 17 | 18,3 | 1 | 1,030.00 | |
704850 |
|
1,5 | 1 | 30 | 10 | 704849 | 14 | 10 | 28 | 12,2 | 46,3 | 30 | 30 | 8 | 17 | 19,5 | 1 | 1,030.00 | |
704851 |
|
1,5 | 1,3 | 16 | 11 | 704852 | 10,7 | 8 | 34 | 11,9 | 34,3 | 32 | 25 | 8 | 18 | 19,9 | 1 | 764.00 | |
704852 |
|
1,5 | 1,3 | 24 | 11 | 704851 | 15 | 10 | 30 | 17,9 | 49,4 | 48 | 30 | 8 | 18 | 21,1 | 1 | 764.00 | |
704853 |
|
1,5 | 1,5 | 16 | 10 | 704854 | 10,5 | 10 | 36 | 14,3 | 37,8 | 35,8 | 30 | 8 | 17 | 18,8 | 1 | 1,852.00 | |
704854 |
|
1,5 | 1,5 | 24 | 10 | 704853 | 15,6 | 10 | 32 | 21,5 | 54,4 | 52,8 | 35 | 8 | 17 | 21,1 | 1 | 1,852.00 |
