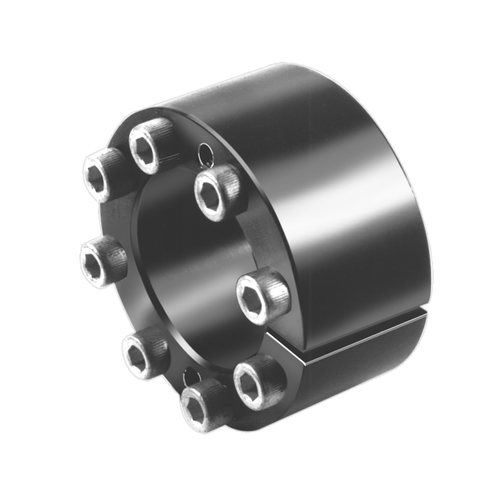

Clamping Set BAR - QPQ-coated
Application area For fixing a drive wheel on a round shaft (without feather key groove) for... more
Application area
For fixing a drive wheel on a round shaft (without feather key groove) for transmission of medium torques
Product specification
Ready-to-install clamping set made of steel, corrosion-proof
Very good self-centering, excellent concentricity
With QPQ coating as wear and corrosion protection
Easy mounting and dismounting without special tool
Nitrocarburizing provides higher corrosion resistance than electroless nickel plating.
Technical specification
Material:
Casing: steel 11SMnPb37, Tenifer salt bath nitrocarburized
Screws: steel DIN 912-12.9 with Dacromet corrosion protection
Colour: black silk-matt
Sizes: 5 x 16 to 50 x 80 mm (inside x outside diameter)
Tolerance:
Shafts: h9
Hubs: H9
Surface finish: <12 µm (shafts and hubs)
Item | Image |
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
| Schraubengröße3 |
Anzugsmoment Schrauben Nm
| Anzahl Schrauben |

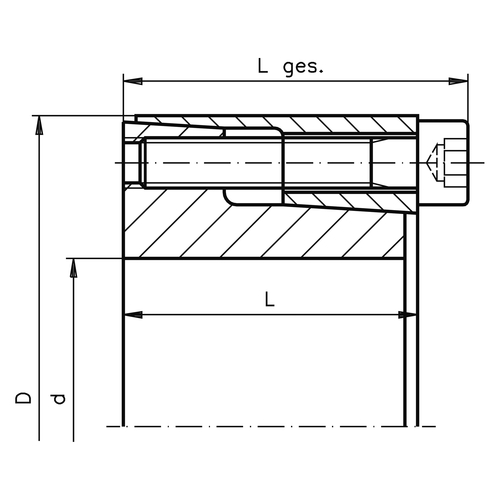

d mm
|
D mm
|
B mm
|
L mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
|
Schraubengröße3
|
Anzugsmoment Schrauben Nm
|
Anzahl Schrauben
|
d mm
|
D mm
|
B mm
|
L mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
705649 |
|
6 | 2 | 150 | 55 | M2,5 x 10 | 1,2 | 3 | 5 | 16 | 11 | 13,5 | 12 | 5 | 268.00 | |
705650 |
|
6 | 2 | 150 | 55 | M2,5 x 10 | 1,2 | 3 | 5 | 16 | 11 | 13,5 | 12 | 10 | 434.00 | |
705651 |
|
6 | 2 | 150 | 55 | M2,5 x 10 | 1,2 | 3 | 6 | 16 | 11 | 13,5 | 12 | 5 | 268.00 | |
705652 |
|
6 | 2 | 150 | 55 | M2,5 x 10 | 1,2 | 3 | 6 | 16 | 11 | 13,5 | 12 | 10 | 434.00 | |
705653 |
|
10 | 2,5 | 110 | 50 | M2,5 x 10 | 1,2 | 3 | 8 | 18 | 11 | 13,5 | 15 | 5 | 284.00 | |
705654 |
|
10 | 2,5 | 110 | 50 | M2,5 x 10 | 1,2 | 3 | 8 | 18 | 11 | 13,5 | 15 | 10 | 461.00 | |
705655 |
|
15 | 3 | 120 | 55 | M2,5 x 12 | 1,2 | 4 | 9 | 20 | 13 | 15,5 | 20 | 5 | 300.00 | |
705656 |
|
15 | 3 | 120 | 55 | M2,5 x 12 | 1,2 | 4 | 9 | 20 | 13 | 15,5 | 20 | 10 | 482.00 | |
705657 |
|
15 | 3 | 110 | 55 | M2,5 x 12 | 1,2 | 4 | 10 | 20 | 13 | 15,5 | 19 | 5 | 300.00 | |
705658 |
|
15 | 3 | 110 | 55 | M2,5 x 12 | 1,2 | 4 | 10 | 20 | 13 | 15,5 | 19 | 10 | 482.00 | |
705659 |
|
18 | 3 | 100 | 50 | M2,5 x 12 | 1,2 | 4 | 11 | 22 | 13 | 15,5 | 24 | 5 | 327.00 | |
705660 |
|
18 | 3 | 100 | 50 | M2,5 x 12 | 1,2 | 4 | 11 | 22 | 13 | 15,5 | 24 | 10 | 530.00 | |
705661 |
|
20 | 3 | 90 | 50 | M2,5 x 12 | 1,2 | 4 | 12 | 22 | 13 | 15,5 | 22 | 5 | 327.00 | |
705662 |
|
20 | 3 | 90 | 50 | M2,5 x 12 | 1,2 | 4 | 12 | 22 | 13 | 15,5 | 22 | 10 | 530.00 | |
705663 |
|
35 | 5 | 105 | 55 | M3 x 16 | 2,1 | 4 | 14 | 26 | 17 | 20 | 39 | 5 | 370.00 | |
705664 |
|
35 | 5 | 105 | 55 | M3 x 16 | 2,1 | 4 | 14 | 26 | 17 | 20 | 39 | 10 | 594.00 | |
705665 |
|
40 | 5 | 100 | 50 | M3 x 16 | 2,1 | 4 | 15 | 28 | 17 | 20 | 44 | 2 | 151.00 | |
705666 |
|
40 | 5 | 100 | 50 | M3 x 16 | 2,1 | 4 | 15 | 28 | 17 | 20 | 44 | 6 | 347.00 | |
705667 |
|
70 | 8 | 130 | 65 | M4 x 16 | 4,9 | 4 | 16 | 32 | 17 | 21 | 67 | 2 | 163.00 | |
705668 |
|
70 | 8 | 130 | 65 | M4 x 16 | 4,9 | 4 | 16 | 32 | 17 | 21 | 67 | 6 | 373.00 | |
705669 |
|
80 | 8 | 115 | 60 | M4 x 20 | 4,9 | 4 | 18 | 35 | 21 | 25 | 87 | 2 | 174.00 | |
705670 |
|
80 | 8 | 115 | 60 | M4 x 20 | 4,9 | 4 | 18 | 35 | 21 | 25 | 87 | 6 | 399.00 | |
705671 |
|
150 | 15 | 140 | 75 | M5 x 20 | 9,7 | 4 | 20 | 38 | 21 | 26 | 100 | 2 | 189.00 | |
705672 |
|
150 | 15 | 140 | 75 | M5 x 20 | 9,7 | 4 | 20 | 38 | 21 | 26 | 100 | 6 | 431.00 | |
705673 |
|
260 | 20 | 135 | 75 | M6 x 25 | 16,5 | 4 | 25 | 47 | 26 | 32 | 190 | 2 | 238.00 |
