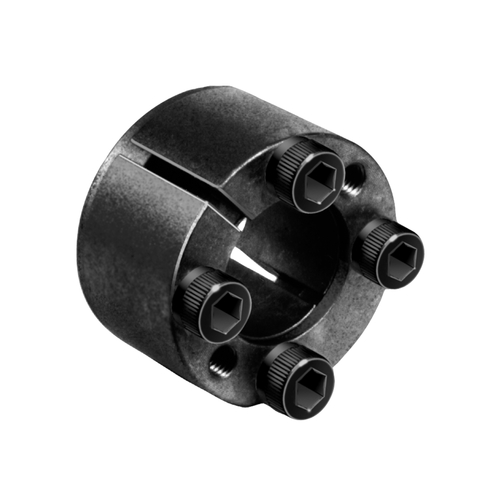

Clamping Set BAR - stainless steel
Application area For fixing a drive wheel on a round shaft (without feather key groove)... more
Application area
For fixing a drive wheel on a round shaft (without feather key groove)
Product specification
Ready-to-install clamping set made of stainless steel
Suitable for lower torques
Very good self-centering, excellent concentricity
Easy mounting and dismounting without special tool
Technical specification
Material:
Casing: stainless steel 1.4057
Screws: stainless steel DIN 912
Sizes: 5 x 16 to 50 x 80 mm (inside x outside diameter)
Tolerance:
Shafts: h8
Hubs: H8
Surface finish: <10 µm
Item | Image |
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
| Schraubengröße3 |
Anzugsmoment Schrauben Nm
|

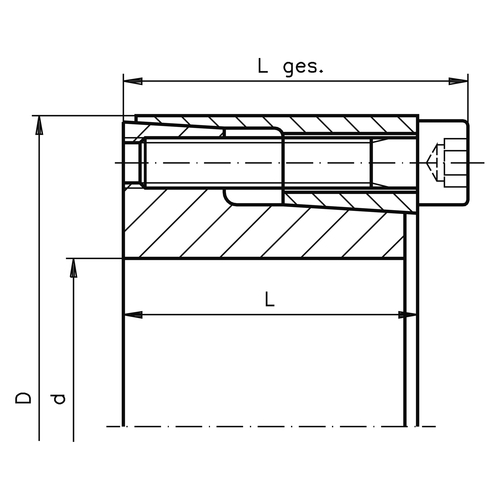

d mm
|
D mm
|
B mm
|
L mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
|
Schraubengröße3
|
Anzugsmoment Schrauben Nm
|
d mm
|
D mm
|
B mm
|
L mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
705677 |
|
3 | 0,9 | 49 | 19 | M2,5 | 0,5 | 6 | 16 | 11 | 13,5 | 12 | 1 | 152.00 | |
705678 |
|
3 | 0,9 | 49 | 19 | M2,5 | 0,5 | 6 | 16 | 11 | 13,5 | 12 | 3 | 350.00 | |
705679 |
|
3 | 0,9 | 42 | 17 | M2,5 | 0,5 | 7 | 17 | 11 | 13,5 | 13 | 1 | 152.00 | |
705680 |
|
3 | 0,9 | 42 | 17 | M2,5 | 0,5 | 7 | 17 | 11 | 13,5 | 13 | 3 | 350.00 | |
705681 |
|
4 | 0,9 | 37 | 17 | M2,5 | 0,5 | 8 | 18 | 11 | 13,5 | 15 | 1 | 152.00 | |
705682 |
|
4 | 0,9 | 37 | 17 | M2,5 | 0,5 | 8 | 18 | 11 | 13,5 | 15 | 3 | 350.00 | |
705683 |
|
6 | 1,2 | 37 | 17 | M2,5 | 0,5 | 9 | 20 | 13 | 15,5 | 20 | 1 | 165.00 | |
705684 |
|
6 | 1,2 | 37 | 17 | M2,5 | 0,5 | 9 | 20 | 13 | 15,5 | 20 | 3 | 379.00 | |
705685 |
|
6 | 1,2 | 33 | 17 | M2,5 | 0,5 | 10 | 20 | 13 | 15,5 | 19 | 1 | 165.00 | |
705686 |
|
6 | 1,2 | 33 | 17 | M2,5 | 0,5 | 10 | 20 | 13 | 15,5 | 19 | 3 | 379.00 | |
705687 |
|
7 | 1,2 | 30 | 15 | M2,5 | 0,5 | 11 | 22 | 13 | 15,5 | 24 | 1 | 165.00 | |
705688 |
|
7 | 1,2 | 30 | 15 | M2,5 | 0,5 | 11 | 22 | 13 | 15,5 | 24 | 3 | 379.00 | |
705689 |
|
7 | 1,2 | 26 | 15 | M2,5 | 0,5 | 12 | 22 | 13 | 15,5 | 22 | 1 | 176.00 | |
705690 |
|
7 | 1,2 | 26 | 15 | M2,5 | 0,5 | 12 | 22 | 13 | 15,5 | 22 | 3 | 408.00 | |
705691 |
|
13 | 1,9 | 28 | 15 | M3 | 0,9 | 14 | 26 | 17 | 20 | 39 | 1 | 176.00 | |
705692 |
|
13 | 1,9 | 28 | 15 | M3 | 0,9 | 14 | 26 | 17 | 20 | 39 | 3 | 408.00 | |
705693 |
|
14 | 1,9 | 26 | 14 | M3 | 0,9 | 15 | 28 | 17 | 20 | 44 | 1 | 176.00 | |
705694 |
|
14 | 1,9 | 26 | 14 | M3 | 0,9 | 15 | 28 | 17 | 20 | 44 | 3 | 408.00 | |
705695 |
|
28 | 3,5 | 45 | 23 | M4 | 2,2 | 16 | 32 | 17 | 21 | 66 | 1 | 189.00 | |
705696 |
|
28 | 3,5 | 45 | 23 | M4 | 2,2 | 16 | 32 | 17 | 21 | 66 | 3 | 437.00 | |
705697 |
|
30 | 3,5 | 34 | 17 | M4 | 2,2 | 17 | 35 | 21 | 25 | 92 | 1 | 189.00 | |
705698 |
|
30 | 3,5 | 34 | 17 | M4 | 2,2 | 17 | 35 | 21 | 25 | 92 | 3 | 437.00 | |
705699 |
|
32 | 3,5 | 32 | 17 | M4 | 2,2 | 18 | 35 | 21 | 25 | 87 | 1 | 189.00 | |
705700 |
|
32 | 3,5 | 32 | 17 | M4 | 2,2 | 18 | 35 | 21 | 25 | 87 | 3 | 437.00 | |
705701 |
|
34 | 3,5 | 31 | 17 | M4 | 2,2 | 19 | 35 | 21 | 25 | 84 | 1 | 189.00 |
