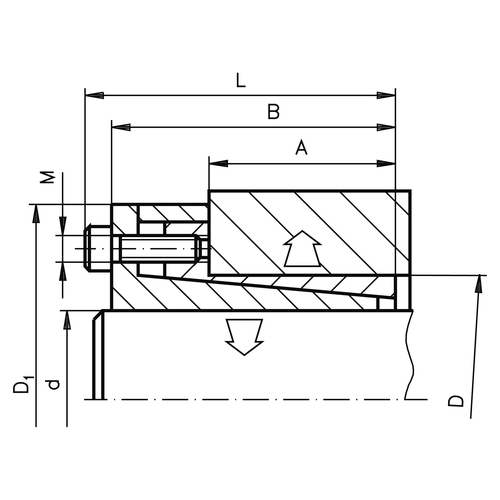

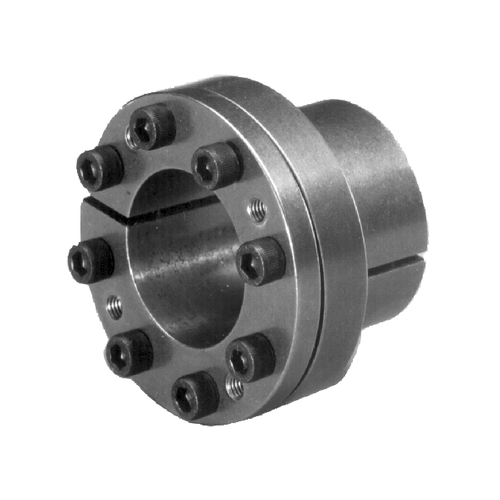

Clamping Set COM - stainless steel, design B
Application area For fixing a hub (e.g. timing belt pulley) on a round shaft for transmission... more
Application area
For fixing a hub (e.g. timing belt pulley) on a round shaft for transmission of lower torques
Product specification
Ready-to-install clamping set made of stainless steel
Suitable for small hub diameters
For fixing wheels on round shafts, without feather key groove
Self-centering
Easy mounting and dismounting without special tool
Technical specification
Material:
Casing: stainless steel 1.4057
Screws: stainless steel DIN 912
Sizes: 10 x 16 to 50 x 65 mm (inside x outside diameter)
Tolerance:
Shafts: h8
Hubs: H8
Surface finish: <10 µm
Item | Image |
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
| Schraubengröße2 |
Anzugsmoment Schrauben Nm
|
d mm
|
D mm
|
D1 mm
|
L1 mm
|
L mm
|
L2 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Transferable torque1 Nm
|
übertr. Axialkraft2 kN
|
Flächenanpressung Welle N/mm²
|
Flächenanpressung Nabe N/mm²
|
Schraubengröße2
|
Anzugsmoment Schrauben Nm
|
d mm
|
D mm
|
D1 mm
|
L1 mm
|
L mm
|
L2 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
705727 |
|
22 | 4 | 82 | 51 | M4 | 2 | 10 | 16 | 29 | 14 | 27 | 31 | 120 | 1 | 159.00 | |
705728 |
|
22 | 4 | 82 | 51 | M4 | 2 | 10 | 16 | 29 | 14 | 27 | 31 | 120 | 3 | 344.00 | |
705729 |
|
26 | 4 | 69 | 46 | M4 | 2 | 12 | 18 | 32 | 14 | 28 | 32 | 140 | 1 | 140.00 | |
705730 |
|
26 | 4 | 69 | 46 | M4 | 2 | 12 | 18 | 32 | 14 | 28 | 32 | 140 | 3 | 305.00 | |
705731 |
|
30 | 4 | 59 | 36 | M4 | 2 | 14 | 23 | 38 | 14 | 28 | 32 | 150 | 1 | 152.00 | |
705732 |
|
30 | 4 | 59 | 36 | M4 | 2 | 14 | 23 | 38 | 14 | 28 | 32 | 150 | 3 | 328.00 | |
705733 |
|
73 | 10 | 107 | 67 | M6 | 8 | 15 | 24 | 44 | 16 | 37 | 43 | 220 | 1 | 161.00 | |
705734 |
|
73 | 10 | 107 | 67 | M6 | 8 | 15 | 24 | 44 | 16 | 37 | 43 | 220 | 3 | 347.00 | |
705735 |
|
78 | 10 | 101 | 67 | M6 | 8 | 16 | 24 | 44 | 16 | 37 | 43 | 220 | 1 | 161.00 | |
705736 |
|
78 | 10 | 101 | 67 | M6 | 8 | 16 | 24 | 44 | 16 | 37 | 43 | 220 | 3 | 347.00 | |
705737 |
|
87 | 10 | 79 | 55 | M6 | 8 | 18 | 26 | 47 | 18 | 39 | 45 | 230 | 1 | 165.00 | |
705738 |
|
87 | 10 | 79 | 55 | M6 | 8 | 18 | 26 | 47 | 18 | 39 | 45 | 230 | 3 | 357.00 | |
705739 |
|
92 | 10 | 75 | 53 | M6 | 8 | 19 | 27 | 49 | 18 | 39 | 45 | 250 | 1 | 189.00 | |
705740 |
|
92 | 10 | 75 | 53 | M6 | 8 | 19 | 27 | 49 | 18 | 39 | 45 | 250 | 3 | 408.00 | |
705741 |
|
97 | 10 | 71 | 51 | M6 | 8 | 20 | 28 | 50 | 18 | 39 | 45 | 250 | 1 | 165.00 | |
705742 |
|
97 | 10 | 71 | 51 | M6 | 8 | 20 | 28 | 50 | 18 | 39 | 45 | 250 | 3 | 357.00 | |
705743 |
|
105 | 10 | 47 | 32 | M6 | 8 | 22 | 32 | 54 | 25 | 46 | 52 | 320 | 1 | 247.00 | |
705744 |
|
105 | 10 | 47 | 32 | M6 | 8 | 22 | 32 | 54 | 25 | 46 | 52 | 320 | 3 | 533.00 | |
705745 |
|
175 | 15 | 64 | 45 | M6 | 8 | 24 | 34 | 56 | 25 | 46 | 52 | 340 | 1 | 247.00 | |
705746 |
|
175 | 15 | 64 | 45 | M6 | 8 | 24 | 34 | 56 | 25 | 46 | 52 | 340 | 3 | 533.00 | |
705747 |
|
180 | 15 | 62 | 45 | M6 | 8 | 25 | 34 | 56 | 25 | 46 | 52 | 350 | 1 | 214.00 | |
705748 |
|
180 | 15 | 62 | 45 | M6 | 8 | 25 | 34 | 56 | 25 | 46 | 52 | 350 | 3 | 466.00 | |
705749 |
|
200 | 15 | 55 | 40 | M6 | 8 | 28 | 39 | 61 | 25 | 46 | 52 | 410 | 1 | 238.00 | |
705750 |
|
200 | 15 | 55 | 40 | M6 | 8 | 28 | 39 | 61 | 25 | 46 | 52 | 410 | 3 | 504.00 | |
705751 |
|
220 | 15 | 51 | 38 | M6 | 8 | 30 | 41 | 62 | 25 | 46 | 52 | 410 | 1 | 232.00 |
