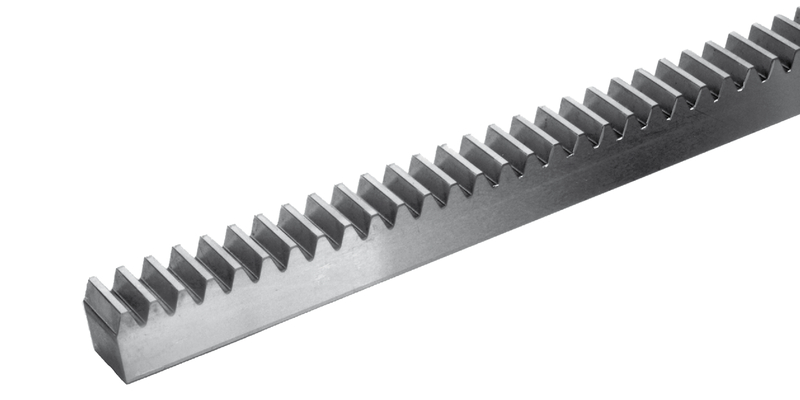

Gear Rack made of stainless steel
Application area Laboratory technology, food industry, outdoor applications Product... more
Application area
Laboratory technology, food industry, outdoor applications
Product specification
Form-true gear racks for medium loads, if corrosion resistance is required.
Stainless square gear racks with straight teeth, precisely straightened.
Module 1.0 / 1.5 / 2.0 (module teeth according to DIN 867), module 2 length 1000 mm is cut for continuous linking.
Good mechanical strength properties.
Good temperature resistance.
Technical specification
Material: stainless steel 1.4305 (X10CrNiS18 9)
Teeth:
Type: milled teeth, straight tooth system, pressure angle 20°
Quality: 8d25 DIN 3962
Tolerance (h and H): -0.2 mm (via serration with overhead milling cutter)

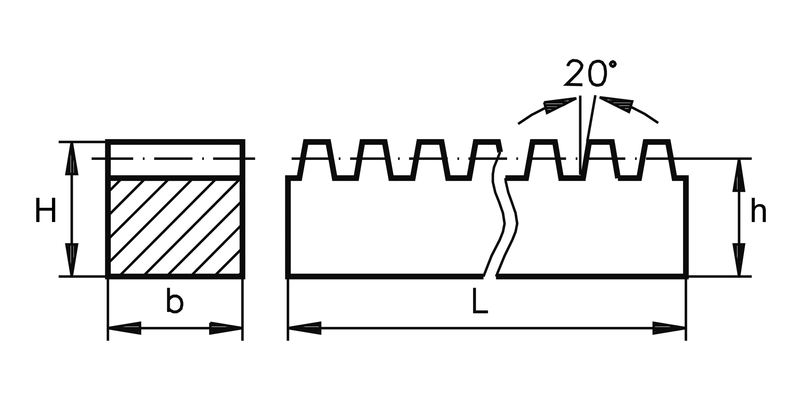

Item | Image | Module |
Zahnbreite (b) mm
|
H mm
|
h mm
|
Gewicht kg
|
Länge1 mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Module
|
Zahnbreite (b) mm
|
H mm
|
h mm
|
Gewicht kg
|
Länge1 mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
704397 |
|
1 | 10 | 10 | 9 | 0,34 | 500 | 2 | 274.00 | |
704398 |
|
1 | 10 | 10 | 9 | 0,34 | 500 | 6 | 636.00 | |
704399 |
|
1 | 10 | 10 | 9 | 0,68 | 1.000 | 1 | 204.00 | |
704400 |
|
1 | 10 | 10 | 9 | 0,68 | 1.000 | 3 | 472.00 | |
704401 |
|
1,5 | 15 | 15 | 13,5 | 0,77 | 500 | 1 | 167.00 | |
704402 |
|
1,5 | 15 | 15 | 13,5 | 0,77 | 500 | 3 | 386.00 | |
704403 |
|
1,5 | 15 | 15 | 13,5 | 1,55 | 1.000 | 1 | 242.00 | |
704404 |
|
1,5 | 15 | 15 | 13,5 | 1,55 | 1.000 | 3 | 549.00 | |
704405 |
|
1,5 | 15 | 15 | 13,5 | 2,33 | 1.500 | 1 | 343.00 | |
704406 |
|
1,5 | 15 | 15 | 13,5 | 2,33 | 1.500 | 3 | 777.00 | |
704407 |
|
2 | 20 | 20 | 18 | 1,38 | 500 | 1 | 210.00 | |
704408 |
|
2 | 20 | 20 | 18 | 1,38 | 500 | 3 | 488.00 | |
704409 |
|
2 | 20 | 20 | 18 | 2,77 | 1.000 | 1 | 324.00 | |
704410 |
|
2 | 20 | 20 | 18 | 2,77 | 1.000 | 3 | 732.00 | |
704411 |
|
2 | 20 | 20 | 18 | 4,12 | 1.500 | 1 | 416.00 | |
704412 |
|
2 | 20 | 20 | 18 | 4,12 | 1.500 | 2 | 621.00 | |
704413 |
|
2 | 20 | 20 | 18 | 5,5 | 2.000 | 1 | 555.00 | |
704414 |
|
2 | 20 | 20 | 18 | 5,5 | 2.000 | 2 | 833.00 |
Page
[1] nominal length, real length = multiple of the pitch
