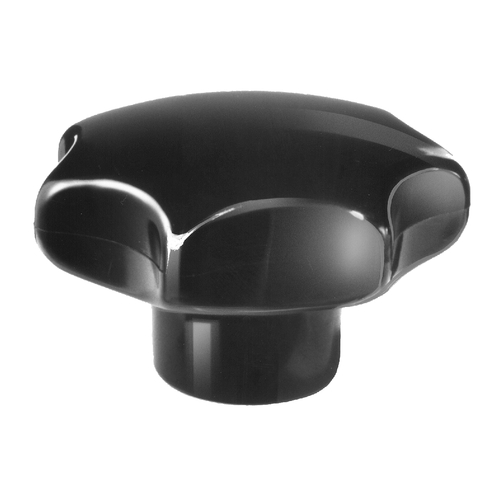

Star Knob made of Plastic - with threaded bush of zinc-plated steel
Application area As operating element in plant construction and engineering Product... more
Application area
As operating element in plant construction and engineering
Product specification
Ready-to-install star knob made of plastics
Permanent mounting with threaded bush of metal
Smooth surface, easy to clean
High mechanical load capacity
Hardly inflammable
Good chemical resistance
Not suitable for food and beverages
Technical specification
Material: Duroplast PF31 (phenol-formaldehyde resin)
Colour: black, glossy finish
Max. temperature: +130 °C
Ø knob: 20 - 80 mm
Thread: internal thread M4 to M12

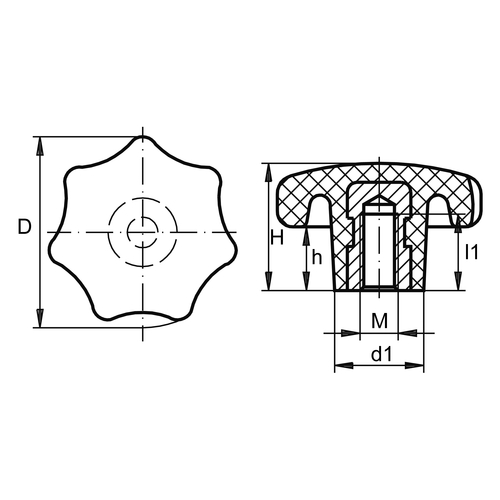

Item | Image | Thread (M) |
D mm
|
d1 mm
|
l1 mm
|
H mm
|
h mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Thread (M)
|
D mm
|
d1 mm
|
l1 mm
|
H mm
|
h mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|
7069691 |
|
M4 x 0,7 | 20 | 10 | 6,5 | 13 | 7 | 3 | 5 | 17.00 | |
7069701 |
|
M4 x 0,7 | 20 | 10 | 6,5 | 13 | 7 | 3 | 10 | 27.00 | |
706971 |
|
M5 x 0,8 | 25 | 12 | 9,5 | 16 | 8 | 7 | 5 | 17.00 | |
706972 |
|
M5 x 0,8 | 25 | 12 | 9,5 | 16 | 8 | 7 | 10 | 22.00 | |
706973 |
|
M6 x 1 | 32 | 14 | 12 | 20 | 9 | 11 | 5 | 17.00 | |
706974 |
|
M6 x 1 | 32 | 14 | 12 | 20 | 9 | 11 | 10 | 27.00 | |
706975 |
|
M8 x 1,25 | 40 | 18 | 14 | 26 | 13 | 26 | 5 | 27.00 | |
706976 |
|
M8 x 1,25 | 40 | 18 | 14 | 26 | 13 | 26 | 10 | 38.00 | |
706977 |
|
M10 x 1,5 | 50 | 22 | 18 | 33 | 17 | 44 | 5 | 38.00 | |
706978 |
|
M10 x 1,5 | 50 | 22 | 18 | 33 | 17 | 44 | 10 | 54.00 | |
706979 |
|
M10 x 1,5 | 63 | 25 | 18 | 42 | 21 | 83 | 5 | 43.00 | |
706980 |
|
M10 x 1,5 | 63 | 25 | 18 | 42 | 21 | 83 | 10 | 65.00 | |
706981 |
|
M12 x 1,75 | 63 | 25 | 22 | 42 | 21 | 83 | 5 | 33.00 | |
706982 |
|
M12 x 1,75 | 63 | 25 | 22 | 42 | 21 | 83 | 10 | 54.00 | |
706983 |
|
M12 x 1,75 | 80 | 35 | 22 | 50 | 22 | 158 | 5 | 59.00 | |
706984 |
|
M12 x 1,75 | 80 | 35 | 22 | 50 | 22 | 158 | 10 | 86.00 |
Page
[1] with threaded bush made of brass
