Star Knob made of Aluminium - with tapped blind hole
Application area As operating element in plant construction and engineering Product... more
Application area
As operating element in plant construction and engineering
Product specification
Ready-to-install light star knob made of aluminium
Smooth surface, easy to clean
High mechanical load capacity
Technical specification
Material: GKAISi7Cu3, polished
Colour: silver, glossy finish
Temperature range: -40 to +175 °C
Ø knob: 40 - 80 mm
Thread: internal thread M8 to M16

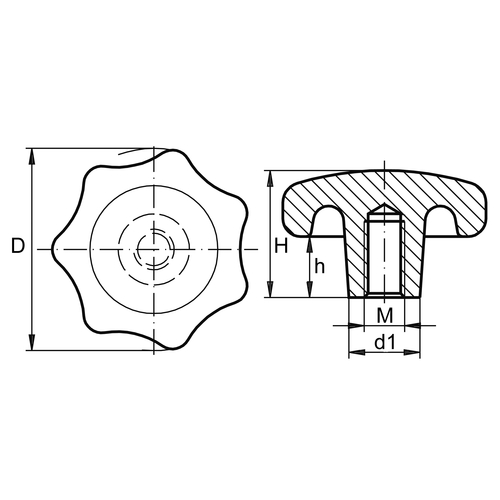

Item | Image | Thread (M) |
D mm
|
d1 mm
|
H mm
|
h mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Thread (M)
|
D mm
|
d1 mm
|
H mm
|
h mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
706985 |
|
M8 x 1,25 | 40 | 14 | 26 | 13 | 35 | 5 | 161.00 | |
706986 |
|
M8 x 1,25 | 40 | 14 | 26 | 13 | 35 | 10 | 241.00 | |
706987 |
|
M10 x 1,5 | 50 | 18 | 34 | 17 | 65 | 5 | 193.00 | |
706988 |
|
M10 x 1,5 | 50 | 18 | 34 | 17 | 65 | 10 | 284.00 | |
706989 |
|
M12 x 1,75 | 63 | 20 | 42 | 21 | 100 | 5 | 231.00 | |
706990 |
|
M12 x 1,75 | 63 | 20 | 42 | 21 | 100 | 10 | 338.00 | |
706991 |
|
M16 x 2 | 80 | 25 | 52 | 25 | 220 | 5 | 300.00 | |
706992 |
|
M16 x 2 | 80 | 25 | 52 | 25 | 220 | 10 | 439.00 |
