Application area
As operating element in the food processing industry and laboratory technology
Product specification

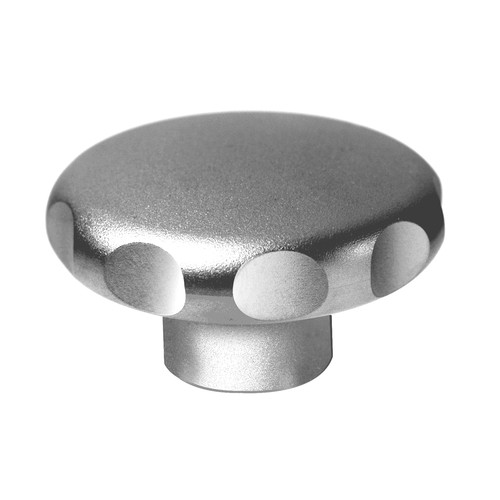

Ready-to-install star knob made of stainless steel
Smooth enclosed surfaces, easy to clean
High mechanical load capacity
Limited resistance in acidic and chloride-containing environment

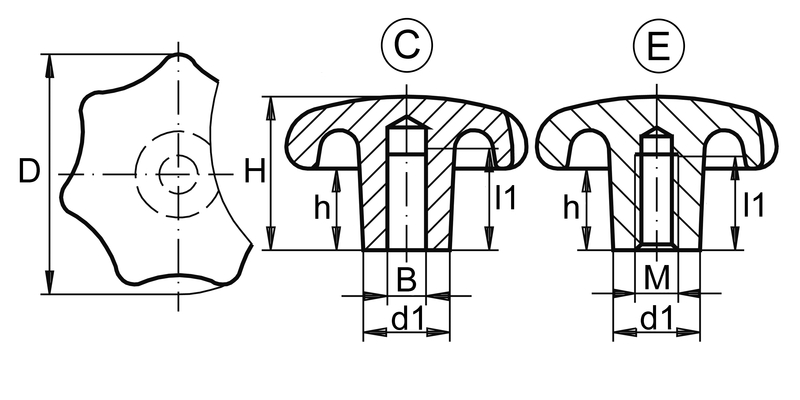

Optionally available: Type C with smooth bore (blind hole H7) or Type E with internal thread (tapped blind hole)
Technical specification
Material: stainless steel 1.4305, blasted, matt finish
Temperature range: -40 to +350 °C
Ø knob: 40 - 60 mm
| Item | Image | Type | Gewinde (M) |
Bohrung (B) mm
|
D mm
|
d1 mm
|
H mm
|
h mm
|
l1 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Type
|
Gewinde (M)
|
Bohrung (B) mm
|
D mm
|
d1 mm
|
H mm
|
h mm
|
l1 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 706993 |
|
C | 8 | 40 | 18 | 30,5 | 15 | 15 | 125 | 5 | 214.00 | ||
| 706994 |
|
C | 8 | 40 | 18 | 30,5 | 15 | 15 | 125 | 10 | 338.00 | ||
| 706995 |
|
C | 10 | 50 | 21 | 34 | 17 | 18 | 208 | 5 | 247.00 | ||
| 706996 |
|
C | 10 | 50 | 21 | 34 | 17 | 18 | 208 | 10 | 375.00 | ||
| 706997 |
|
C | 12 | 60 | 25 | 39 | 18 | 22 | 365 | 5 | 364.00 | ||
| 706998 |
|
C | 12 | 60 | 25 | 39 | 18 | 22 | 365 | 10 | 552.00 | ||
| 706999 |
|
E | M8 x 1,25 | 40 | 18 | 30,5 | 15 | 12 | 125 | 5 | 182.00 | ||
| 707000 |
|
E | M8 x 1,25 | 40 | 18 | 30,5 | 15 | 12 | 125 | 10 | 279.00 | ||
| 707001 |
|
E | M10 x 1,5 | 50 | 21 | 34 | 17 | 15 | 208 | 5 | 247.00 | ||
| 707002 |
|
E | M10 x 1,5 | 50 | 21 | 34 | 17 | 15 | 208 | 10 | 375.00 | ||
| 707003 |
|
E | M12 x 1,75 | 60 | 25 | 39 | 18 | 22 | 365 | 5 | 364.00 | ||
| 707004 |
|
E | M12 x 1,75 | 60 | 25 | 39 | 18 | 22 | 365 | 10 | 552.00 |
