Application area
As operating element in plant construction and engineering
Product specification
Ready-to-install, light and robust cabinet “U” handle made of plastics, black matt
Mounting from above (sinkholes for Allen screws DIN 912)
Cold-, impact- and abrasion-resistant
Technical specification
Material: thermoplast polyamide, glass-fibre reinforced
Max. temperature: +150 °C

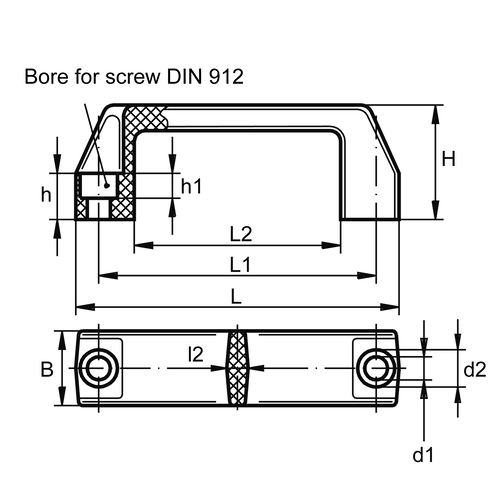

| Item | Image |
H mm
|
h mm
|
h1 mm
|
L mm
|
L2 mm
|
l2 mm
|
L1 mm
|
Width mm
|
d1 mm
|
d2 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
H mm
|
h mm
|
h1 mm
|
L mm
|
L2 mm
|
l2 mm
|
L1 mm
|
Width mm
|
d1 mm
|
d2 mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7070611 |
|
36 | 13 | 7 | 107 | 74 | 6 | 94 | 21 | 6,5 | 10,5 | 26 | 5 | 59.00 | |
| 7070621 |
|
36 | 13 | 7 | 107 | 74 | 6 | 94 | 21 | 6,5 | 10,5 | 26 | 10 | 91.00 | |
| 7070632 |
|
41 | 15 | 8,5 | 134 | 95 | 7 | 117 | 26 | 8,5 | 13,5 | 44 | 5 | 70.00 | |
| 7070642 |
|
41 | 15 | 8,5 | 134 | 95 | 7 | 117 | 26 | 8,5 | 13,5 | 44 | 10 | 107.00 | |
| 7070652 |
|
45 | 16 | 8,5 | 150 | 108 | 7 | 132 | 27 | 8,5 | 13,5 | 47 | 5 | 107.00 | |
| 7070662 |
|
45 | 16 | 8,5 | 150 | 108 | 7 | 132 | 27 | 8,5 | 13,5 | 47 | 10 | 166.00 | |
| 7070673 |
|
50 | 17 | 8,5 | 197 | 153 | 8 | 179 | 28 | 8,5 | 13,5 | 70 | 5 | 129.00 | |
| 7070683 |
|
50 | 17 | 8,5 | 197 | 153 | 8 | 179 | 28 | 8,5 | 13,5 | 70 | 10 | 198.00 | |
| 7070693 |
|
54 | 20 | 10,5 | 260 | 204 | 9 | 235 | 30 | 10,5 | 16,5 | 118 | 5 | 231.00 | |
| 7070703 |
|
54 | 20 | 10,5 | 260 | 204 | 9 | 235 | 30 | 10,5 | 16,5 | 118 | 10 | 354.00 |
[1] tolerance l1: -1.0 mm [2] tolerance l1: ±0.5 mm [3] tolerance l1: ±1.0 mm
