Application areas
To be used with tensioning element, for quiet operation at low chain speeds
Product specification
Plastic chain rider for chain tensioning element
To be mounted on tensioning element to create a ready-to-mount tensioner
Can be used on both sides due to symmetric design
Large radii guarantee smooth running
Note: tensioning elements (standard - Cat. No. 700625 ff) (zinc plated - Cat. No. 700631 ff) have to be ordered separately
Technical specification
Material:
Chain rider set: high-quality plastic Delrin® 100
Mounting screw: zinc plated steel
Nut: zinc plated steel
Max. chain speed: 1.5 m / sec.
Temperature range: -20 to +80 °C

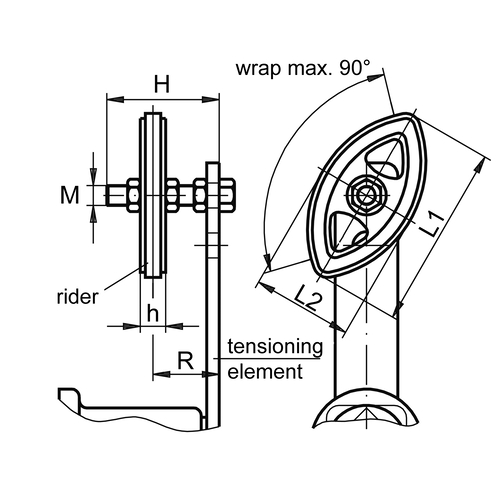

| Item | Image | DIN ISO | For size fo clamping element | Gewinde (M) |
L1 mm
|
L2 mm
|
H mm
|
h mm
|
Einstellbereich R mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
DIN ISO
|
For size fo clamping element
|
Gewinde (M)
|
L1 mm
|
L2 mm
|
H mm
|
h mm
|
Einstellbereich R mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 700621 |
|
06 B-1 | 0 | M8 | 74 | 40 | 45 | 10,2 | 18 - 34 | 50 | 1 | 37.00 | |
| 700622 |
|
06 B-1 | 0 | M8 | 74 | 40 | 45 | 10,2 | 18 - 34 | 50 | 3 | 84.00 | |
| 700623 |
|
08 B-1 | 1 | M10 | 96 | 50 | 55 | 13,9 | 23 - 41 | 100 | 1 | 41.00 | |
| 700624 |
|
08 B-1 | 1 | M10 | 96 | 50 | 55 | 13,9 | 23 - 41 | 100 | 3 | 94.00 |
