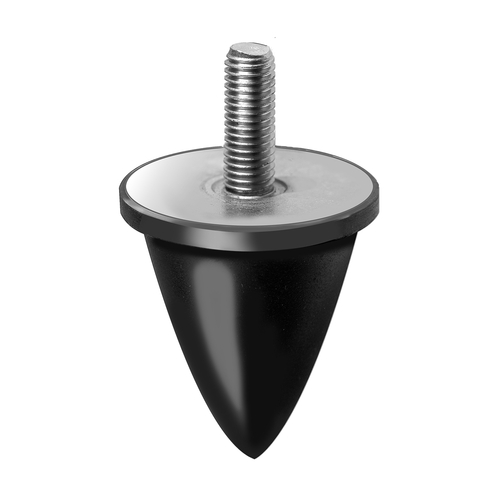

Rubber-Metal Buffer - conic long, with external thread
Application area As mounts for vibration-reducing installation of light sensitive equipment... more
Application area
As mounts for vibration-reducing installation of light sensitive equipment
For protection of floors
As elastic bump stop, e.g. for stroke limitation in vehicles
Product specification
Medium rubber hardness
For medium pressure load
Residues / discolorations caused by rubber can remain on sensitive surfaces
General Information Material: Rubber parts: natural rubber Metal parts: steel St37... more
General Information
Material:
Rubber parts: natural rubber
Metal parts: steel St37
Colour:
Rubber parts: black
Metal parts: white zinc plated
Shore hardness: 55° (rubber parts)
Max. temperature: +80 °C

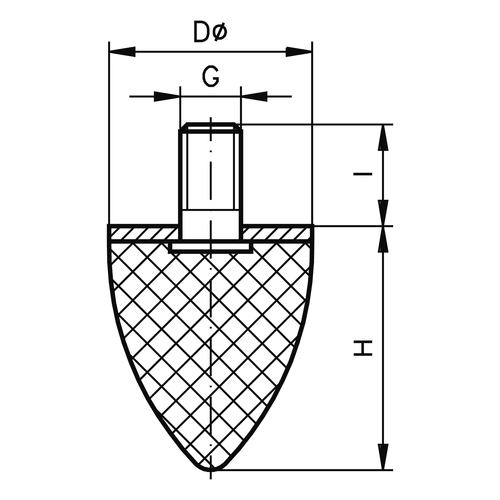

Item | Image |
Average spring rate CD N/mm
|
zul. Druckbelastung1 N
|
D mm
|
H mm
| Gewinde (G) |
l mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Average spring rate CD N/mm
|
zul. Druckbelastung1 N
|
D mm
|
H mm
|
Gewinde (G)
|
l mm
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|
707085 |
|
15 | 60 | 20 | 24 | M6 x 1 | 18 | 11 | 5 | 27.00 | |
707086 |
|
15 | 60 | 20 | 24 | M6 x 1 | 18 | 11 | 10 | 43.00 | |
707087 |
|
23 | 140 | 30 | 36 | M8 x 1,25 | 20 | 37 | 5 | 38.00 | |
707088 |
|
23 | 140 | 30 | 36 | M8 x 1,25 | 20 | 37 | 10 | 59.00 | |
707089 |
|
27 | 150 | 35 | 40 | M8 x 1,25 | 20 | 45 | 5 | 54.00 | |
707090 |
|
27 | 150 | 35 | 40 | M8 x 1,25 | 20 | 45 | 10 | 81.00 | |
707091 |
|
33 | 320 | 50 | 58 | M10 x 1,5 | 28 | 127 | 5 | 86.00 | |
707092 |
|
33 | 320 | 50 | 58 | M10 x 1,5 | 28 | 127 | 10 | 134.00 | |
707093 |
|
40 | 400 | 50 | 67 | M8 x 1,25 | 36 | 136 | 5 | 97.00 | |
707094 |
|
40 | 400 | 50 | 67 | M8 x 1,25 | 36 | 136 | 10 | 150.00 | |
707095 |
|
55 | 900 | 75 | 89 | M12 x 1,75 | 37 | 341 | 5 | 134.00 | |
707096 |
|
55 | 900 | 75 | 89 | M12 x 1,75 | 37 | 341 | 10 | 204.00 |
Page
[1] no tensile stress in rubber
