Precision Worm Gear
Product specification

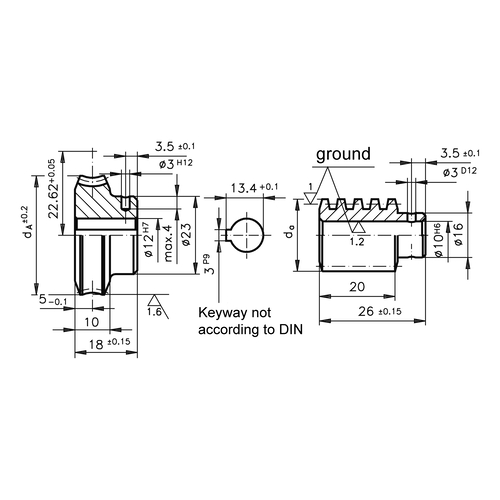

Gears at centre distance 22.62 and 25 mm with special feather keyway, at centre distance 17 and 31 mm without keyway.
Technical specification
Material: special brass CuZn40Al2/So, pitch-true milled
Pressure angle: 15º (for reduction of radial loads)
Bore tolerance: H7
Tolerance:
Centre distance: +0.05 mm
da: +0.2 mm
General Information
Use for high loads in continuous operation, precision engineering and gear manufacturing.
For right angled power transmission with simultaneous vertical offset (= centre distance dimension), even at high speeds.
Precision worms and worm gears for shaft angle 90º

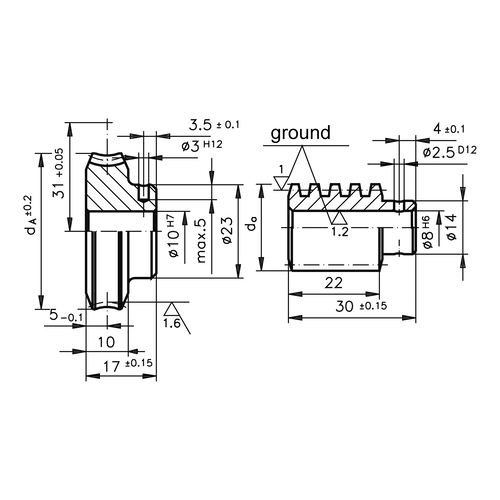

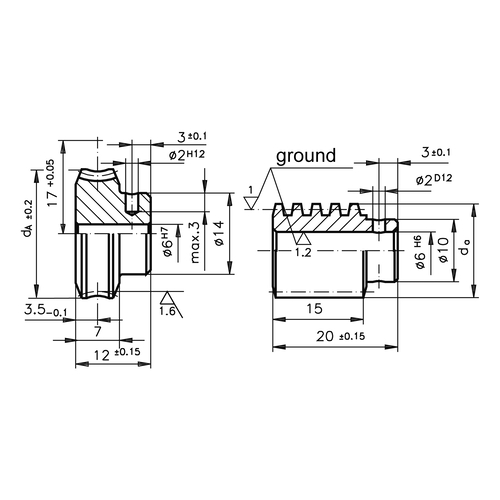

Centre distance (vertical offset) optionally 17; 22.62; 25 and 31 mm
Several transmissions are available per centre distance
The worms and gears only run as a pair at the stated ratio and at the same module
Worm and worm gear have to be ordered separately
Ready-to-mount (with custom bore, need only to be pinned)
High mechanical strength properties
Very quiet running
Good temperature resistance
Right hand
Notes regarding efficiency and self-locking:
Low transmissions (e.g. 5:1) have a high efficiency and a minimum self-locking. High transmissions (with low lead angle) have a low efficiency and a high self-locking. A static self-locking capacity is provided with a lead angle less than ca. 4.5° (lead angle see table).
Item | Image |
Centre distance mm
| Zähne |
Kopfkreis Ø (da) mm
|
max. Drehmoment1 Nm
| Übersetzung (x:1) | Modul | passende Schnecke |
Gewicht g
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Centre distance mm
|
Zähne
|
Kopfkreis Ø (da) mm
|
max. Drehmoment1 Nm
|
Übersetzung (x:1)
|
Modul
|
passende Schnecke
|
Gewicht g
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
7049092, 4 |
|
17 | 18 | 25,63 | 1,1 | 2,25 | 0,9 | 704937 | 25 | 1 | 101.00 | |
7049102, 4 |
|
17 | 18 | 25,63 | 1,1 | 2,25 | 0,9 | 704938 | 25 | 3 | 242.00 | |
704911 |
|
17 | 27 | 24,6 | 1,7 | 4,5 | 0,75 | 704939 | 25 | 1 | 101.00 | |
704912 |
|
17 | 27 | 24,6 | 1,7 | 4,5 | 0,75 | 704940 | 25 | 3 | 242.00 | |
704913 |
|
17 | 30 | 24,6 | 1,8 | 5 | 0,7 | 704941 | 26 | 1 | 101.00 | |
704914 |
|
17 | 30 | 24,6 | 1,8 | 5 | 0,7 | 704942 | 26 | 3 | 242.00 | |
704915 |
|
17 | 21 | 24,6 | 1,6 | 7 | 1 | 704943 | 25 | 1 | 101.00 | |
704916 |
|
17 | 21 | 24,6 | 1,6 | 7 | 1 | 704944 | 25 | 3 | 242.00 | |
704917 |
|
17 | 27 | 22,7 | 1,5 | 9 | 0,75 | 704945 | 23 | 1 | 101.00 | |
704918 |
|
17 | 27 | 22,7 | 1,5 | 9 | 0,75 | 704946 | 23 | 3 | 242.00 | |
704919 |
|
17 | 30 | 24,6 | 1,9 | 10 | 0,75 | 704947 | 27 | 1 | 98.00 | |
704920 |
|
17 | 30 | 24,6 | 1,9 | 10 | 0,75 | 704948 | 27 | 3 | 242.00 | |
704921 |
|
17 | 30 | 24,6 | 1,9 | 15 | 0,75 | 704949 | 26 | 1 | 98.00 | |
704922 |
|
17 | 30 | 24,6 | 1,9 | 15 | 0,75 | 704950 | 26 | 3 | 242.00 | |
704923 |
|
17 | 25 | 24,6 | 1,8 | 25 | 0,9 | 704951 | 26 | 1 | 113.00 | |
704924 |
|
17 | 25 | 24,6 | 1,8 | 25 | 0,9 | 704952 | 26 | 3 | 270.00 | |
704925 |
|
17 | 30 | 24,6 | 1,9 | 30 | 0,75 | 704953 | 26 | 1 | 107.00 | |
704926 |
|
17 | 30 | 24,6 | 1,9 | 30 | 0,75 | 704954 | 26 | 3 | 257.00 | |
704927 |
|
17 | 40 | 21,6 | 1,4 | 40 | 0,5 | 704955 | 22 | 1 | 111.00 | |
704928 |
|
17 | 40 | 21,6 | 1,4 | 40 | 0,5 | 704956 | 22 | 3 | 270.00 | |
7049293 |
|
17 | 50 | 27,2 | 1 | 50 | 0,5 | 704957 | 32 | 1 | 120.00 | |
7049303 |
|
17 | 50 | 27,2 | 1 | 50 | 0,5 | 704958 | 32 | 3 | 290.00 | |
704931 |
|
17 | 60 | 26 | 1,6 | 60 | 0,4 | 704959 | 30 | 1 | 119.00 | |
704932 |
|
17 | 60 | 26 | 1,6 | 60 | 0,4 | 704960 | 30 | 3 | 281.00 | |
704933 |
|
17 | 75 | 24 | 1,3 | 75 | 0,3 | 704961 | 26 | 1 | 125.00 |
