Product specification
Available in two different designs:

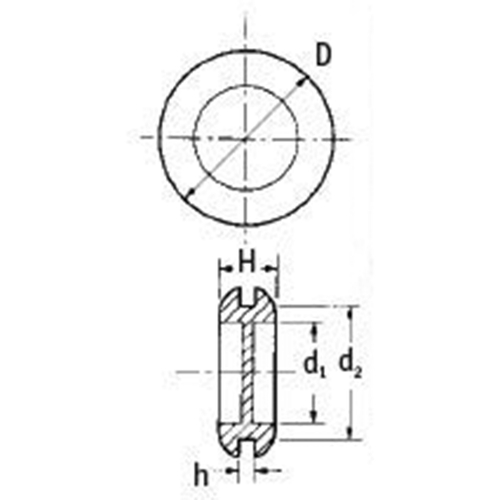

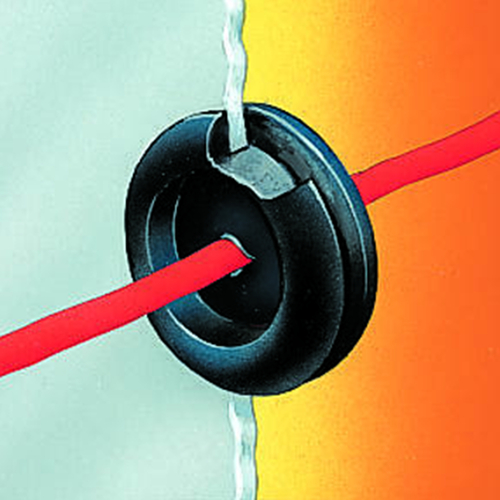

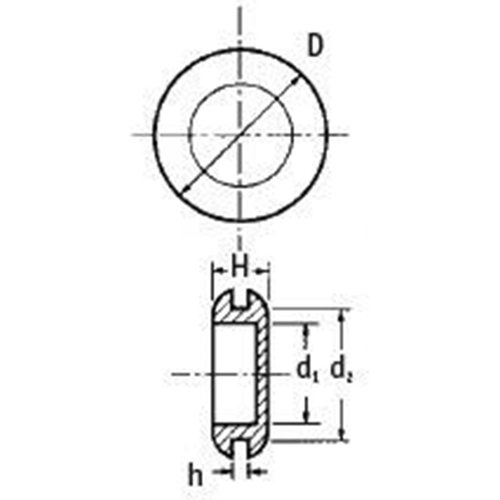

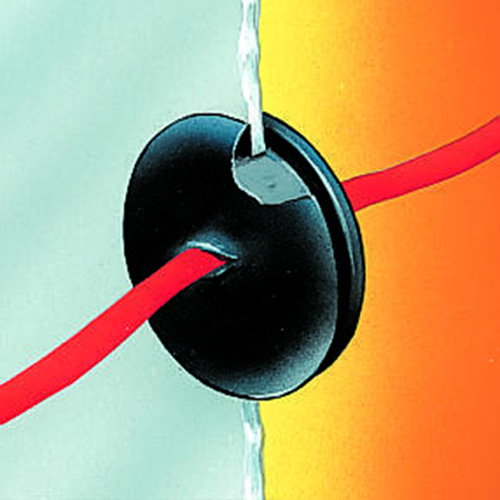

Type A (membrane in the center) and type B (membrane on one side).
Chemical features: good resistance to weak acids and weak alkalis
Resistance to weather: good resistance to UV radiation
Technical specification
Material: PVC-U (polyvinyl chloride, rigid)
Colour: black
Density: 1.38 g/cm3
Temperature range: -5 to +65 °C
Shore hardness D: 65° - 75°
Tensile strength: 55 - 75 N/mm2 (DIN 53455)
Elongation at break: 10 - 20 % (DIN 53455)
Ball pressure hardness (10-sec. value): 75 - 155 N/mm2 (DIN 53456)
Coefficient of sliding friction against steel (dry): approx. 0.6
Surface resistance: 1013 Ohm (DIN 53482)
Dielectric constant: 3.2 - 3.7 at 50 Hz
Oxygen index: 25 - 40 (BS 2782)
Flammability rating: UL 94 HB - V-0
| Item | Image | Type |
D mm
|
d1 mm
|
d2 mm
|
h mm
|
H mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Type
|
D mm
|
d1 mm
|
d2 mm
|
h mm
|
H mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|
| 314642 |
|
A | 19 | 11 | 16 | 1,5 | 5,8 | 25 | 48.00 | |
| 314643 |
|
A | 19 | 11 | 16 | 1,5 | 5,8 | 50 | 80.00 | |
| 314644 |
|
A | 22 | 12,5 | 16 | 2,4 | 8 | 25 | 52.00 | |
| 314645 |
|
A | 22 | 12,5 | 16 | 2,4 | 8 | 50 | 88.00 | |
| 314646 |
|
A | 25,5 | 15,5 | 19 | 1,6 | 8 | 25 | 58.00 | |
| 314647 |
|
A | 25,5 | 15,5 | 19 | 1,6 | 8 | 50 | 99.00 | |
| 314648 |
|
A | 25,4 | 15,9 | 19 | 2 | 7,9 | 25 | 54.00 | |
| 314649 |
|
A | 25,4 | 15,9 | 19 | 2 | 7,9 | 50 | 93.00 | |
| 314650 |
|
A | 25,5 | 15,5 | 19 | 2,4 | 8,8 | 25 | 58.00 | |
| 314651 |
|
A | 25,5 | 15,5 | 19 | 2,4 | 8,8 | 50 | 99.00 | |
| 314652 |
|
A | 25,5 | 15,5 | 19 | 3,2 | 9,6 | 25 | 58.00 | |
| 314653 |
|
A | 25,5 | 15,5 | 19 | 3,2 | 9,6 | 50 | 99.00 | |
| 314654 |
|
A | 25,5 | 15,5 | 20 | 1,6 | 8 | 25 | 58.00 | |
| 314655 |
|
A | 25,5 | 15,5 | 20 | 1,6 | 8 | 50 | 99.00 | |
| 314656 |
|
A | 36,5 | 19 | 25,5 | 2,4 | 8,4 | 10 | 41.00 | |
| 314657 |
|
A | 36,5 | 19 | 25,5 | 2,4 | 8,4 | 25 | 86.00 | |
| 314658 |
|
A | 39 | 25,5 | 32 | 2,4 | 8 | 10 | 45.00 | |
| 314659 |
|
A | 39 | 25,5 | 32 | 2,4 | 8 | 25 | 95.00 | |
| 314660 |
|
A | 39 | 25,5 | 32 | 4 | 9,5 | 10 | 45.00 | |
| 314661 |
|
A | 39 | 25,5 | 32 | 4 | 9,5 | 25 | 95.00 | |
| 314664 |
|
B | 12,7 | 6,4 | 9,9 | 1,6 | 6,7 | 25 | 39.00 | |
| 314665 |
|
B | 12,7 | 6,4 | 9,9 | 1,6 | 6,7 | 50 | 65.00 | |
| 314666 |
|
B | 15,7 | 9,5 | 12,5 | 1,5 | 6,4 | 25 | 60.00 | |
| 314667 |
|
B | 15,7 | 9,5 | 12,5 | 1,5 | 6,4 | 50 | 103.00 | |
| 314668 |
|
B | 17,5 | 8 | 11 | 1,6 | 8 | 25 | 60.00 |
