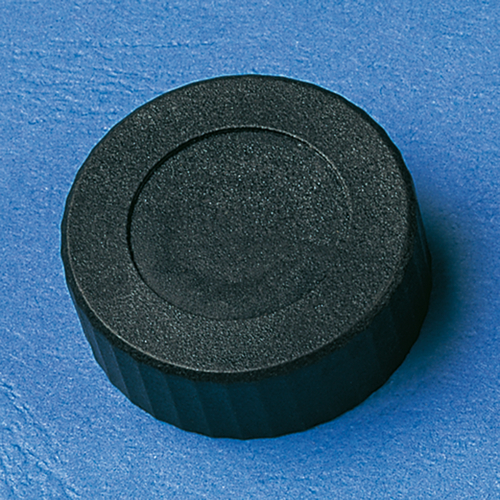

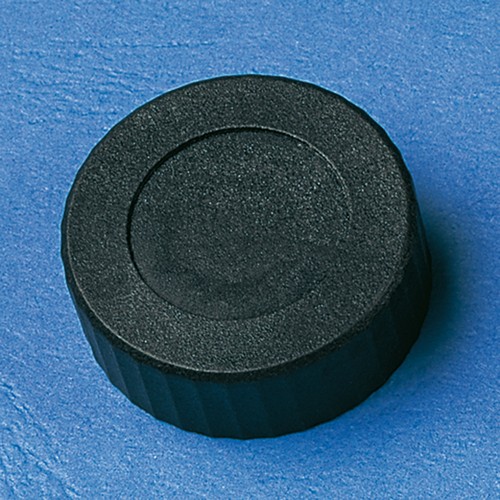

Knurled Nut made of PA - glass fibre reinforced
Technical specification
Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)
Colour: black
Design: smooth surface
General Information
Chemical features:
Good resistance to mineral lubricants, aromatic and aliphatic hydrocarbons, gasoline, trichloroethylene, perchloroethylene, acetone and alkohols
Material specification:
Dimensionally stable and impact resistant
Suitable for heavy-duty and power transmission applications
Glass fibre reinforced polyamides have excellent impact resistance combined with a high stiffness and strength
Extremely robust to mechanical load
UV light and weather: medium resistance
Material: PA 6.6 (polyamide 6.6), glass fibre reinforced (25 %)
Density: 1.36 g/cm3
Temperature range: -40 to +120 °C, for a short time +240 °C
Tensile strength: 170 / 120 MPa (dry / humid) (ISO 527)
Bending strength: 210 MPa (ISO 178)
Elongation at break: 4 % (ISO 527)
Elastic modulus: 7,000 MPa (ISO 527)
Impact resistance (Charpy): 75 kJ/m2 (ISO 179/1eU)
Notch impact strength (Izod): 12 kJ/m2 (ISO 180/1A)
Melting point: +260 °C (ISO 11357)
Water absorption: 1.9 %; 6.0 % during storage in water (ISO 62)
Dielectric strength: 85 kV/mm (IEC 60243-1)
Volume resistivity: 1012 Ohm x m (IEC 60093)

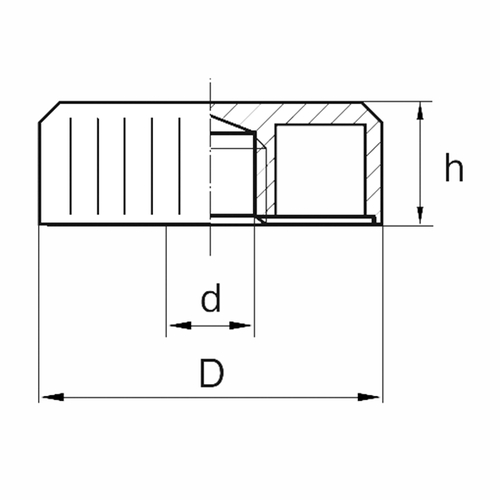

Item | Image | Internal thread |
D mm
|
h mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Internal thread
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
309180 |
|
M5 x 0,8 | 32,5 | 12 | 10 | 36.00 | |
309181 |
|
M5 x 0,8 | 32,5 | 12 | 20 | 59.00 | |
309182 |
|
M6 x 1 | 32,5 | 12 | 10 | 36.00 | |
309183 |
|
M6 x 1 | 32,5 | 12 | 20 | 59.00 | |
309184 |
|
M8 x 1,25 | 32,5 | 12 | 10 | 36.00 | |
309185 |
|
M8 x 1,25 | 32,5 | 12 | 20 | 59.00 |
