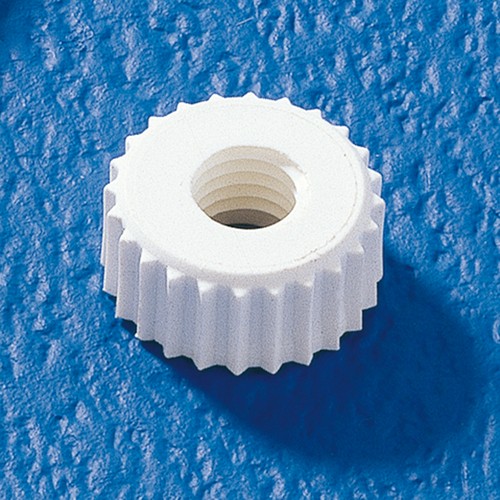

Knurled Nut with Knurl made of PA - glass fibre reinforced
General Information
Chemical features:
Good resistance to mineral lubricants, aromatic and aliphatic hydrocarbons, gasoline, trichloroethylene, perchloroethylene, acetone and alkohols
Material specification:
Dimensionally stable and impact resistant
Suitable for heavy-duty and power transmission applications
Glass fibre reinforced polyamides have excellent impact resistance combined with a high stiffness and strength
Extremely robust to mechanical load
UV light and weather: medium resistance
Material: PA 6.6 (polyamide 6.6), glass fibre reinforced (25 %)
Density: 1.36 g/cm3
Temperature range: -40 to +120 °C, for a short time +240 °C
Tensile strength: 170 / 120 MPa (dry / humid) (ISO 527)
Bending strength: 210 MPa (ISO 178)
Elongation at break: 4 % (ISO 527)
Elastic modulus: 7,000 MPa (ISO 527)
Impact resistance (Charpy): 75 kJ/m2 (ISO 179/1eU)
Notch impact strength (Izod): 12 kJ/m2 (ISO 180/1A)
Melting point: +260 °C (ISO 11357)
Water absorption: 1.9 %; 6.0 % during storage in water (ISO 62)
Dielectric strength: 85 kV/mm (IEC 60243-1)
Volume resistivity: 1012 Ohm x m (IEC 60093)

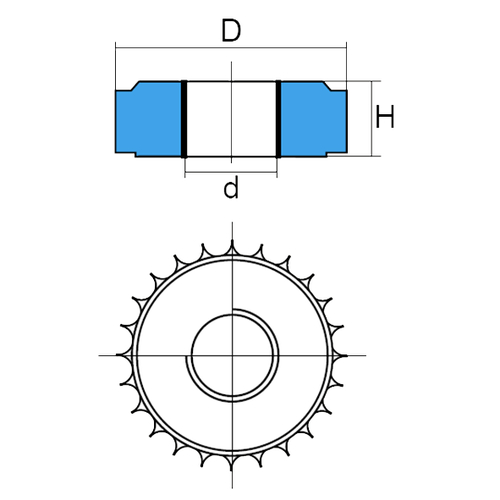

Item | Image | Internal thread |
D mm
|
H mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Internal thread
|
D mm
|
H mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
305996 |
|
M3 x 0,5 | 8 | 3,5 | 50 | 56.00 | |
305997 |
|
M3 x 0,5 | 8 | 3,5 | 100 | 95.00 | |
305998 |
|
M4 x 0,7 | 10 | 4,2 | 50 | 56.00 | |
305999 |
|
M4 x 0,7 | 10 | 4,2 | 100 | 95.00 | |
306000 |
|
M5 x 0,8 | 13 | 5,2 | 50 | 56.00 | |
306001 |
|
M5 x 0,8 | 13 | 5,2 | 100 | 95.00 | |
306002 |
|
M6 x 1 | 12,5 | 6 | 25 | 33.00 | |
306003 |
|
M6 x 1 | 12,5 | 6 | 50 | 55.00 | |
306004 |
|
M8 x 1,25 | 17,5 | 8,3 | 25 | 43.00 | |
306005 |
|
M8 x 1,25 | 17,5 | 8,3 | 50 | 74.00 | |
306006 |
|
M10 x 1,5 | 21,5 | 10 | 25 | 48.00 | |
306007 |
|
M10 x 1,5 | 21,5 | 10 | 50 | 80.00 |
