Product specification

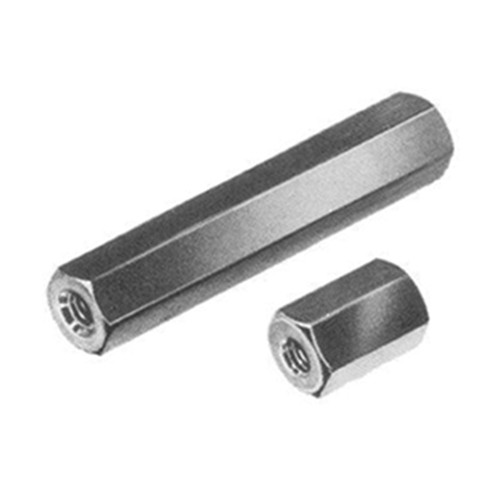

Hexagon WAF 6 up to WAF 13; internal thread on both sides, M3 up to M8
General Information
Material: free cutting steel, 9SMnPb28K
Minimum tensile strength: 500 N/mm2
Yield strength: 410 N/mm2
Elongation at break (L0 = 5 d0): 7 % (min.)
Brinell hardness: 170 HB

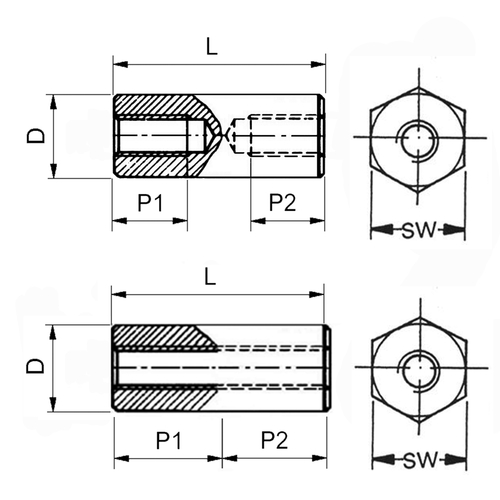

| Item | Image | Internal thread |
P1 mm
|
P2 mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Internal thread
|
P1 mm
|
P2 mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 312070 |
|
M3 x 0,5 | 3,5 | 3,5 | 7 | 6 | 25 | 23.00 | |
| 312071 |
|
M3 x 0,5 | 3,5 | 3,5 | 7 | 6 | 50 | 33.00 | |
| 312072 |
|
M3 x 0,5 | 4 | 4 | 8 | 6 | 25 | 24.00 | |
| 312073 |
|
M3 x 0,5 | 4 | 4 | 8 | 6 | 50 | 34.00 | |
| 312074 |
|
M3 x 0,5 | 5 | 5 | 10 | 6 | 25 | 25.00 | |
| 312075 |
|
M3 x 0,5 | 5 | 5 | 10 | 6 | 50 | 35.00 | |
| 312076 |
|
M3 x 0,5 | 5,5 | 5,5 | 11 | 6 | 25 | 26.00 | |
| 312077 |
|
M3 x 0,5 | 5,5 | 5,5 | 11 | 6 | 50 | 36.00 | |
| 312078 |
|
M3 x 0,5 | 6 | 6 | 12 | 6 | 25 | 27.00 | |
| 312079 |
|
M3 x 0,5 | 6 | 6 | 12 | 6 | 50 | 38.00 | |
| 312080 |
|
M3 x 0,5 | 6,5 | 6,5 | 13 | 6 | 25 | 27.00 | |
| 312081 |
|
M3 x 0,5 | 6,5 | 6,5 | 13 | 6 | 50 | 39.00 | |
| 312082 |
|
M3 x 0,5 | 7 | 7 | 14 | 6 | 25 | 28.00 | |
| 312083 |
|
M3 x 0,5 | 7 | 7 | 14 | 6 | 50 | 40.00 | |
| 312084 |
|
M3 x 0,5 | 7,5 | 7,5 | 15 | 6 | 25 | 28.00 | |
| 312085 |
|
M3 x 0,5 | 7,5 | 7,5 | 15 | 6 | 50 | 41.00 | |
| 312086 |
|
M3 x 0,5 | 8 | 8 | 16 | 6 | 25 | 29.00 | |
| 312087 |
|
M3 x 0,5 | 8 | 8 | 16 | 6 | 50 | 41.00 | |
| 312088 |
|
M3 x 0,5 | 8,5 | 8,5 | 17 | 6 | 25 | 29.00 | |
| 312089 |
|
M3 x 0,5 | 8,5 | 8,5 | 17 | 6 | 50 | 41.00 | |
| 312090 |
|
M3 x 0,5 | 9 | 9 | 18 | 6 | 25 | 29.00 | |
| 312091 |
|
M3 x 0,5 | 9 | 9 | 18 | 6 | 50 | 42.00 | |
| 312092 |
|
M3 x 0,5 | 9,5 | 9,5 | 19 | 6 | 25 | 29.00 | |
| 312093 |
|
M3 x 0,5 | 9,5 | 9,5 | 19 | 6 | 50 | 42.00 | |
| 312094 |
|
M3 x 0,5 | 10 | 10 | 20 | 6 | 25 | 29.00 |
