Product specification

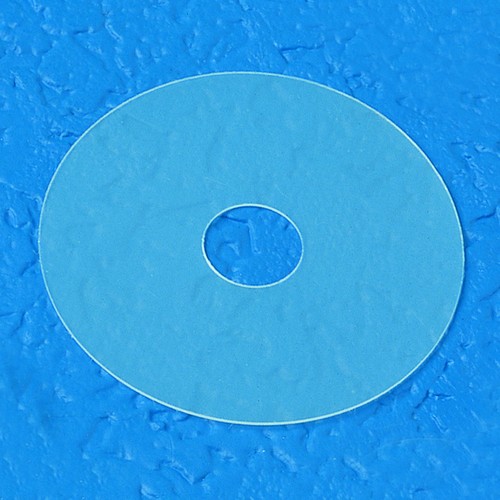

Universal washers or spacer rings
Absorb vibrations
Complete damping and distance keeping
Good resistance to stress cracking
Technical specification
Material: PP (polypropylene)
Colour: natural
Regulations: DIN 125, DIN 34815, ISO 7089
General Information
Resistant to corrosion, abrasion and to most chemicals
Extremely good impact toughness and notch impact strength
High surface hardness
Resistant to hydrolysis
Insulating against moisture and electricity
This material should not be used at freezing temperatures, because of embrittlement at temperatures below 0 °C
Chemical features:
Good resistance to alcohols, ketones, alkalis and acids (except strong and oxidizing acids); resistant to fats and oils, including mineral oils and fuels.
Material specification:
PP (polypropylene) is a universally usable standard plastic with excellent properties
PP is sterilizable and has good electrical properties
Weldable; bondable only after pretreatment
PP is similar to PE (polyethylene), but more fat- and oil-resistant, and also features a higher hardness and stiffness than HDPE as well as a better resilience; its impact strength is, however, lower
UV-radiation and weather: limited resistance
Material: PP (polypropylene)
Colour: natural
Density: 0.90 g/cm3 (DIN 53479)
Temperature range: 0 to +100 °C
Elastic modulus: 1,350 N/mm2 (ISO 527)
Yield stress: 30 N/mm2 (ISO 527-1)
Tearing strength: 25 - 40 N/mm2 (DIN 53455)
Elongation at break: 70 % (DIN 53455)
Impact resistance: without break (DIN 53453)
Notch impact strength: 7 kJ/m2 (DIN 53453)
Ball pressure hardness: 70 N/mm2 (DIN 53456)
Coefficient of sliding friction against steel (dry): approx. 0.30 - 0.40
Thermal conductivity: 0.22 W/m * K (DIN 52612)
Shore hardness D: 70° (DIN 53505)
Volume resistivity: 1017 Ohm x cm (DIN 53482)
Surface resistance: 1013 Ohm (DIN 53482)
Dielectric constant: 2.27 at 50 Hz (DIN 53483)

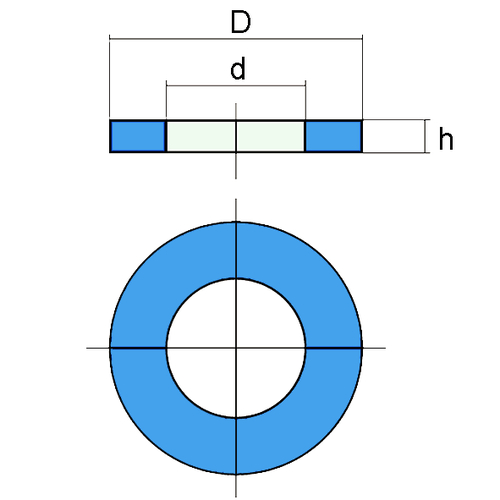

| Item | Image | For thread |
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
For thread
|
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 337623 |
|
M2,5 | 2,7 | 6 | 0,5 | 50 | 26.00 | |
| 337624 |
|
M2,5 | 2,7 | 6 | 0,5 | 100 | 45.00 | |
| 337625 |
|
M3 | 3,2 | 7 | 0,5 | 50 | 26.00 | |
| 337626 |
|
M3 | 3,2 | 7 | 0,5 | 100 | 45.00 | |
| 337627 |
|
M3,5 | 3,7 | 8 | 0,5 | 50 | 26.00 | |
| 337628 |
|
M3,5 | 3,7 | 8 | 0,5 | 100 | 45.00 | |
| 337629 |
|
M4 | 4,3 | 9 | 0,8 | 50 | 26.00 | |
| 337630 |
|
M4 | 4,3 | 9 | 0,8 | 100 | 45.00 | |
| 337631 |
|
M5 | 5,3 | 10 | 1 | 50 | 26.00 | |
| 337632 |
|
M5 | 5,3 | 10 | 1 | 100 | 45.00 | |
| 337633 |
|
M6 | 6,4 | 12,5 | 1,6 | 50 | 26.00 | |
| 337634 |
|
M6 | 6,4 | 12,5 | 1,6 | 100 | 45.00 | |
| 337635 |
|
M8 | 8,4 | 17 | 1,6 | 50 | 26.00 | |
| 337636 |
|
M8 | 8,4 | 17 | 1,6 | 100 | 45.00 | |
| 337637 |
|
M10 | 10,5 | 21 | 2 | 50 | 26.00 | |
| 337638 |
|
M10 | 10,5 | 21 | 2 | 100 | 45.00 | |
| 337639 |
|
M12 | 13 | 24 | 2,5 | 50 | 26.00 | |
| 337640 |
|
M12 | 13 | 24 | 2,5 | 100 | 45.00 | |
| 337641 |
|
M14 | 15 | 30 | 3 | 50 | 30.00 | |
| 337642 |
|
M14 | 15 | 30 | 3 | 100 | 50.00 | |
| 337643 |
|
M16 | 17 | 30 | 3 | 50 | 35.00 | |
| 337644 |
|
M16 | 17 | 30 | 3 | 100 | 58.00 | |
| 337645 |
|
M18 | 19 | 34 | 3 | 50 | 37.00 | |
| 337646 |
|
M18 | 19 | 34 | 3 | 100 | 60.00 | |
| 337647 |
|
M20 | 21 | 37 | 3 | 50 | 39.00 |
