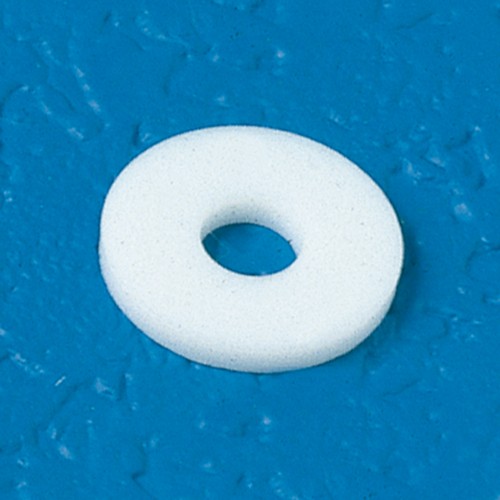

Washer (DIN 125) made of PTFE
Product specification
Fastening elements made of PTFE are ideally suitable for constructions under highest thermal and chemical load. Very good coefficient of sliding friction, therefore no sticking. Elements made of PTFE hardly get dirty due to their excellent antiadhesive properties.
Very good chemical resistance
Very high temperature resistance
Suitable for food contact applications
Extremely resistant to UV and weather, even under extreme climatic conditions
Chemical features:
Universal chemical resistance e.g. to fuming sulfuric and nitric acids, except to molten or dissolved alkali metals, elementary fluorine, perfluorokerosene, chlorinetrifluoride as well as other fluorine compounds that attack the material at high pressures and temperatures.
Material specification:
PTFE is a fluoroplast with excellent resistance to acids, alkalis, solvents and gases.
Good electrical properties.
Sterilizable and usable in a temperature range from -200 to +260 °C depending on the degree of mechanical load.
No embrittlement, even when in contact with boiling helium (-269 °C)
Machinable but bondable only after pretreatment.
Not resistant to fluorine compounds and molten alkali metals at higher temperatures.
Technical specification
Material: PTFE (polytetrafluoroethylene)
Colour: white
Density: 2.15 - 2.20 g/cm3 (DIN 53479)
Temperature range: -200 to +260 °C
Tensile modulus: 410 N/mm2 (DIN 53457)
Tensile strength: 22 - 30 N/mm2 (ASTM D)
Ball pressure hardness (10-sec. value): 27 - 35 N/mm2 (DIN 53453)
Elongation at break: 250 - 400 % (ASTM D)
Bending strength: 5 - 6 (ASTM D 790)
Notch impact strength: 16 kJ/m2 (DIN 53453)
Shore hardness D: 79°
Water absorption: 0.00 % (ASTM D 570)
Volume resistivity: >1018 Ohm x cm (DIN 53482)
Surface resistance: 1017 Ohm (DIN 53482)
Dielectric strength: 48 kV/mm (DIN 53481)
Flammability rating: UL 94 V-0
Regulations: DIN 125, DIN 34815, ISO 7089

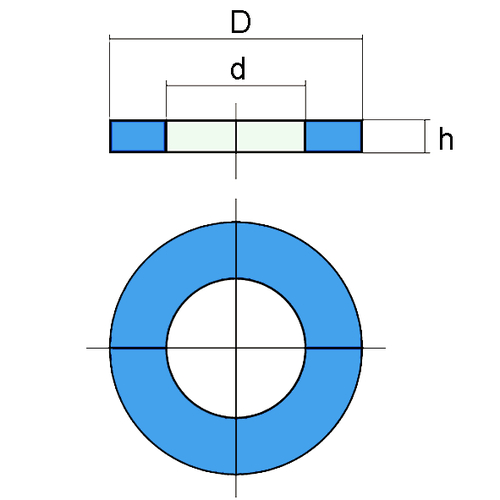

Item | Image | For thread |
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
For thread
|
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
306722 |
|
M3 | 3,2 | 7 | 0,5 | 25 | 22.00 | |
306723 |
|
M3 | 3,2 | 7 | 0,5 | 50 | 33.00 | |
306724 |
|
M4 | 4,3 | 9 | 0,8 | 25 | 30.00 | |
306725 |
|
M4 | 4,3 | 9 | 0,8 | 50 | 50.00 | |
306726 |
|
M5 | 5,3 | 10 | 1 | 25 | 36.00 | |
306727 |
|
M5 | 5,3 | 10 | 1 | 50 | 61.00 | |
306728 |
|
M6 | 6,4 | 12 | 1,6 | 25 | 30.00 | |
306729 |
|
M6 | 6,4 | 12 | 1,6 | 50 | 52.00 | |
306730 |
|
M8 | 8,4 | 16 | 1,6 | 25 | 39.00 | |
306731 |
|
M8 | 8,4 | 16 | 1,6 | 50 | 65.00 | |
306732 |
|
M10 | 10,5 | 20 | 2 | 25 | 52.00 | |
306733 |
|
M10 | 10,5 | 20 | 2 | 50 | 88.00 | |
306734 |
|
M12 | 13 | 24 | 2,5 | 25 | 63.00 | |
306735 |
|
M12 | 13 | 24 | 2,5 | 50 | 112.00 | |
306736 |
|
M16 | 17 | 30 | 3 | 25 | 67.00 | |
306737 |
|
M16 | 17 | 30 | 3 | 50 | 118.00 |
