High-Tech Fine Filter Candle made of UHMW-PE - low flow rate
Product specification

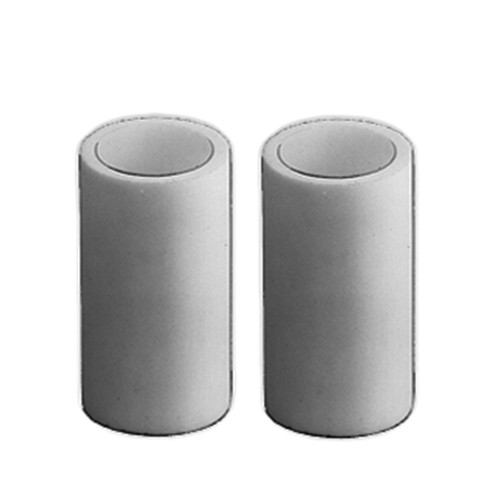

Heavy-duty filter candles made of chemical-resistant UHMW-PE (Ultra High Molecular Weight Polyethylene) with retaining core for THOMAPOR®-High-tech filter housing, items 45729 to 45731.
General Information
Use in laboratory and analytical technology, microelectronics, refrigerating technology plants, fuel conveyer systems, chemical process engineering, pneumatic and hydraulic systems, doctor's and dentist's offices, photographic laboratories.
For filtration, clarification and particle retention in chemical process solutions, etching baths, mineral oils, refrigerating media, lacquers and dyes, pneumatic pressure gases and air, hydraulic fluids, industrial water, photochemical solutions.
Chemical-resistant, mechanically stable, pressure- and temperature-loadable filter systems for fixed mounting in conveying lines for liquid and gaseous media, consisting of a two-part media-tightly screwable full-plastic filter housing made of polyamide or polyamide/TROGAMID® combination. Available in two field-proven sizes for delivery capacities up to 1,500 l/h, optionally with handy drain screw on the housing bottom. Fine-filter candles made of UHMW-PE (Ultra High Molecular Weight Polyethylene) or straining filter candles made of PA 6.6 (polyamide 6.6, nylon) with graduated pore sizes between 5 and 350 µm are to be selected according to the intended application.
Item | Image |
Pore size µm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Pore size µm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|
45738 |
|
5 | 60 | 1 | 40.00 | |
45739 |
|
10 | 100 | 1 | 40.00 | |
45740 |
|
25 | 160 | 1 | 40.00 |
[1] referring to water (+20 °C) and Δp=0.2 bar
