Application area
Purification of drinking water
Purification of industrial water

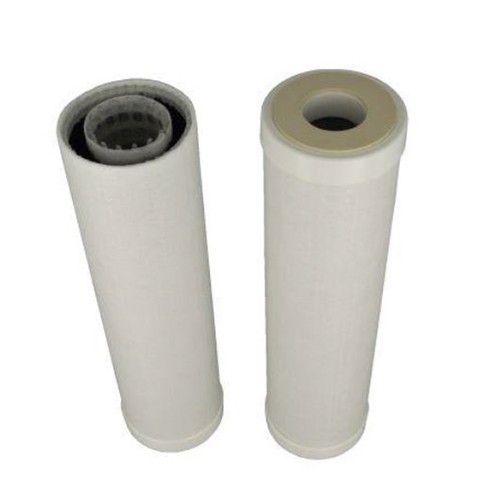

Product specification
All materials used for manufacturing the filter element meet the food law. The used special activated carbon guarantees a very good taste and odour improvement of the filtered water.
The filter elements fit following housings:
Filter length 127 mm: item 94482
Filter length 248 and 254 mm: items 94445, 52851, 52853, 94479, 52863
Filter length 496 and 500 mm: items 52852, 12134
Technical specification
Max. temperature: +70 °C
Max. differential pressure: 2,5 bar
Fineness: 5 µm
Seals: EPDM
| Item | Image |
Length mm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Innen-Ø mm
|
Außen-Ø mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Length mm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Innen-Ø mm
|
Außen-Ø mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 53807 |
|
76 | 110 | 27 | 65 | 1 | 47.00 | |
| 53808 |
|
102 | 150 | 27 | 65 | 1 | 47.00 | |
| 53809 |
|
127 | 185 | 27 | 65 | 1 | 47.00 | |
| 53810 |
|
152 | 220 | 27 | 65 | 1 | 47.00 | |
| 53811 |
|
248 | 360 | 27 | 65 | 1 | 47.00 | |
| 53812 |
|
254 | 365 | 27 | 65 | 1 | 47.00 | |
| 53813 |
|
496 | 720 | 27 | 65 | 1 | 117.00 | |
| 53814 |
|
508 | 735 | 27 | 65 | 1 | 117.00 | |
| 53815 |
|
743 | 1.075 | 27 | 65 | 1 | 117.00 | |
| 53816 |
|
762 | 1.100 | 27 | 65 | 1 | 117.00 |
[1] at 0.2 bar pressure and 1° E viscosity
