Application area
Filtration of noble metal baths in the electroplating technology
Product specification

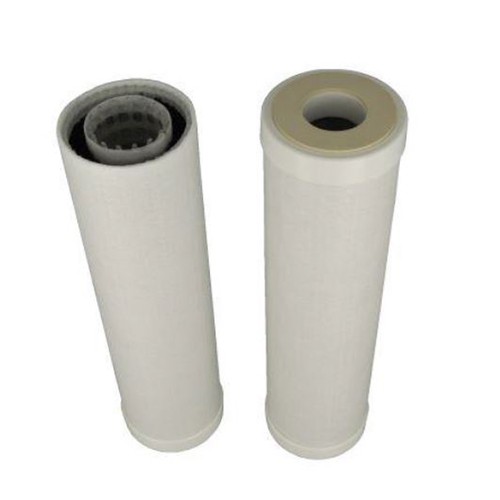

This special filter protects high-grade electrolytic baths for gold, silver and platinum from being contaminated by oils, fats and concomitant organic compounds.
The filter elements fit following housings:
Filter length 127 mm: item 94482
Filter length 248 and 254 mm: items 94445, 52851, 52853, 94479, 52863
Filter length 496 and 500 mm: items 52852, 12134
Technical specification
Max. temperature: +70 °C
Max. differential pressure: 2,5 bar
Fineness: 5 µm
Seals: EPDM
| Item | Image |
Length mm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Innen-Ø mm
|
Außen-Ø mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Length mm
|
max. Durchfluss Flüssigkeiten1 l/h
|
Innen-Ø mm
|
Außen-Ø mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 53829 |
|
76 | 110 | 27 | 65 | 1 | 38.00 | |
| 53830 |
|
102 | 150 | 27 | 65 | 1 | 38.00 | |
| 53831 |
|
127 | 185 | 27 | 65 | 1 | 38.00 | |
| 53832 |
|
152 | 220 | 27 | 65 | 1 | 38.00 | |
| 53833 |
|
248 | 360 | 27 | 65 | 1 | 38.00 | |
| 53834 |
|
254 | 365 | 27 | 65 | 1 | 38.00 | |
| 53835 |
|
496 | 720 | 27 | 65 | 1 | 84.00 | |
| 53836 |
|
508 | 735 | 27 | 65 | 1 | 84.00 | |
| 53837 |
|
743 | 1.075 | 27 | 65 | 1 | 102.00 | |
| 53838 |
|
762 | 1.100 | 27 | 65 | 1 | 102.00 |
[1] at 0.2 bar pressure and 1° E viscosity
