Cylinder Frit made of PTFE

Preview: Cylinder Frit made of PTFE Preview: Cylinder Frit made of PTFE Preview: Cylinder Frit made of PTFE
Cylinder Frit made of PTFE
Cylinder Frit made of PTFE
Cylinder Frit made of PTFE


Description General Information
Description
Application area Suction filter for protection of pump systems, to protect seals, pistons and... more
Close menu

Application area

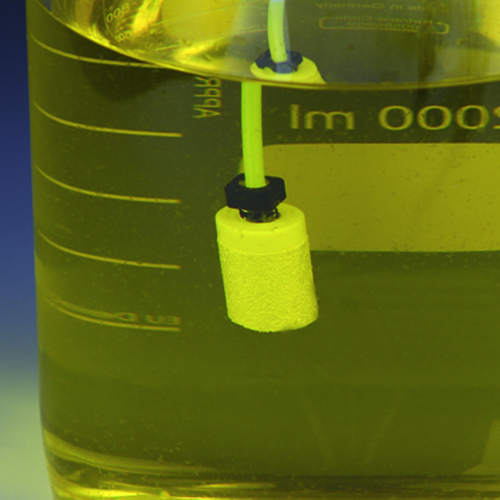

Suction filter for protection of pump systems, to protect seals, pistons and column packings from early wear due to contamination.

Product specification

Suction filter for protection of pump systems, to protect seals, pistons and column packings from early wear due to contamination.

Product specification

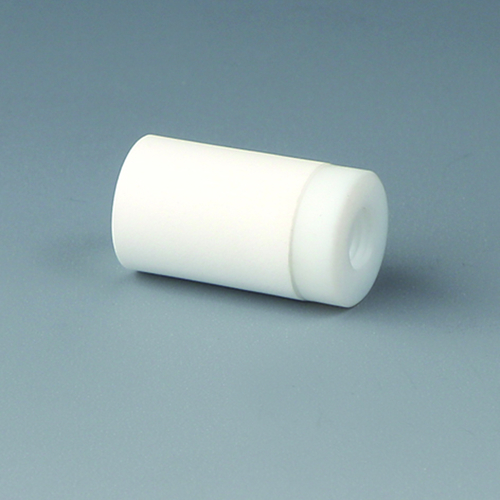

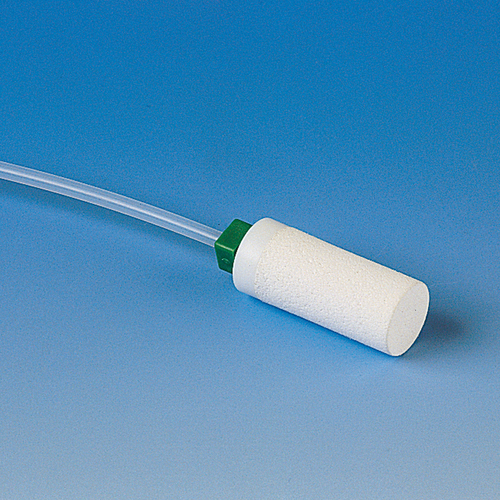

Filter consisting of an exchangeable filter frit made of porous PTFE and a PTFE filter receiver unit with UNF 1/4"-28 female thread

Filter receiver unit with variable bore size, according to tube diameter

Large surface area, therefore long lifetime

PTFE material compatible with nearly all media

Anti-adhesive and dirt-repellent (non-wettable)

Water-repellent (hydrophobic)

Scope of delivery does not include tubing and connection fitting

Possible variants would be 95202 and 83871

Technical specification

Material: PTFE (polytetrafluoroethylene)

Temperature range: -200 to +250 °C

Sterilization: autoclavable (+121 °C)

Filter length: 25 mm

Connecting thread: UNF 1/4"-28

General Information
General Information Frits made of plastic, titanium, Hastelloy and proven material... more
Close menu

General Information

Frits made of plastic, titanium, Hastelloy and proven material composites, high-pressure resistant, for 1/4" HPLC columns and other HPLC system elements, for prefiltration of eluents, particularly for use in the metal-free chromatography.
