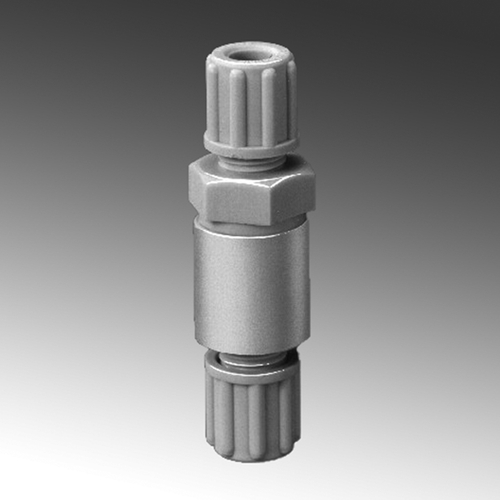

In-Line Filter Module made of PP, PVDF or PFA
Application area
Gas processing in analytical engineering
Removal of solid matters from suspensions and aerosols in analytical chemistry
Product specification
Low weight, small and compact filter module for the uncomplicated mounting in processing plants with tubing and piping
Design ”Standard”: filter body made of polypropylene (PP) with good chemical resistance
Design ”High-Stable”: filter body made of polyvinylidene fluoride (PVDF) with very good chemical stability, as well as great hardness and excellent dimensional stability
Design ”High-Chem”: filter body made of perfluoralkoxy (PFA) with excellent chemical resistance
Technical specification
Material filter body: PP (polypropylene), PVDF (polyvinylidene fluoride) or PFA (perfluoralkoxy)
Material cartridge: PTFE (polytetraflurooethylene)
Flow value Kv: 0.12 m3/h = 120 l/h (water +5 to +30 °C, Δp=1 bar)
Pressure stage: PN 10
Connection: for tubings inner diameter 4 mm, outer diameter 6 mm (DN 4/6) or inner diameter 6 mm, outer diameter 8 mm (DN 6/8)

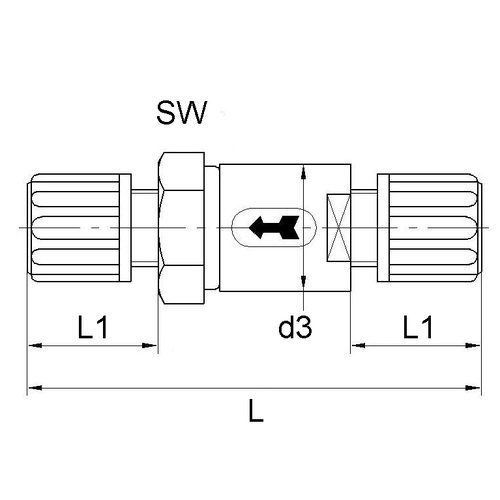

Item | Image |
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
Porengröße µm
| Werkstoff Gehäuse |
L mm
|
L1 mm
|
d3 mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
Porengröße µm
|
Werkstoff Gehäuse
|
L mm
|
L1 mm
|
d3 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
312894 |
|
4 | 6 | 5 | PP | 59 | 17 | 16,5 | 17 | 2 | 64.00 | |
312895 |
|
4 | 6 | 25 | PP | 59 | 17 | 16,5 | 17 | 2 | 64.00 | |
312896 |
|
4 | 6 | 50 | PP | 59 | 17 | 16,5 | 17 | 2 | 64.00 | |
312897 |
|
4 | 6 | 100 | PP | 59 | 17 | 16,5 | 17 | 2 | 64.00 | |
312898 |
|
6 | 8 | 5 | PP | 67 | 21 | 16,6 | 17 | 1 | 41.00 | |
312899 |
|
6 | 8 | 25 | PP | 67 | 21 | 16,6 | 17 | 1 | 41.00 | |
312900 |
|
6 | 8 | 50 | PP | 67 | 21 | 16,6 | 17 | 1 | 41.00 | |
312901 |
|
6 | 8 | 100 | PP | 67 | 21 | 16,6 | 17 | 1 | 41.00 | |
312902 |
|
4 | 6 | 5 | PVDF | 59 | 17 | 16,5 | 17 | 1 | 67.00 | |
312903 |
|
4 | 6 | 25 | PVDF | 59 | 17 | 16,5 | 17 | 1 | 67.00 | |
312904 |
|
4 | 6 | 50 | PVDF | 59 | 17 | 16,5 | 17 | 1 | 67.00 | |
312905 |
|
4 | 6 | 100 | PVDF | 59 | 17 | 16,5 | 17 | 1 | 67.00 | |
312920 |
|
6 | 8 | 5 | PVDF | 67 | 21 | 16,6 | 17 | 1 | 76.00 | |
312921 |
|
6 | 8 | 25 | PVDF | 67 | 21 | 16,6 | 17 | 1 | 76.00 | |
312922 |
|
6 | 8 | 50 | PVDF | 67 | 21 | 16,6 | 17 | 1 | 76.00 | |
312923 |
|
6 | 8 | 100 | PVDF | 67 | 21 | 16,6 | 17 | 1 | 76.00 | |
312910 |
|
4 | 6 | 5 | PFA | 59 | 17 | 16,5 | 17 | 1 | 110.00 | |
312911 |
|
4 | 6 | 25 | PFA | 59 | 17 | 16,5 | 17 | 1 | 110.00 | |
312912 |
|
4 | 6 | 50 | PFA | 59 | 17 | 16,5 | 17 | 1 | 110.00 | |
312913 |
|
4 | 6 | 100 | PFA | 59 | 17 | 16,5 | 17 | 1 | 110.00 | |
312890 |
|
6 | 8 | 5 | PFA | 67 | 21 | 16,5 | 17 | 1 | 128.00 | |
312891 |
|
6 | 8 | 25 | PFA | 67 | 21 | 16,5 | 17 | 1 | 128.00 | |
312892 |
|
6 | 8 | 50 | PFA | 67 | 21 | 16,5 | 17 | 1 | 128.00 | |
312893 |
|
6 | 8 | 100 | PFA | 67 | 21 | 16,5 | 17 | 1 | 128.00 |
