Product specification

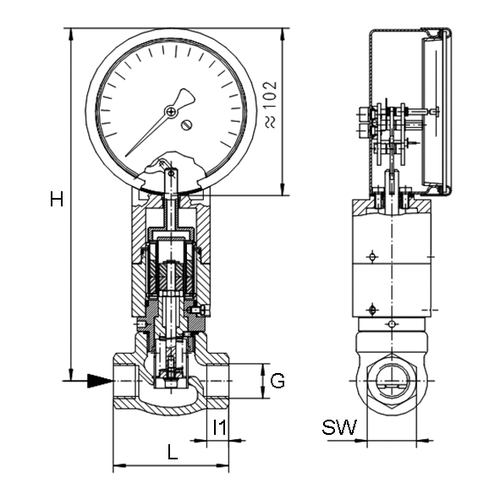

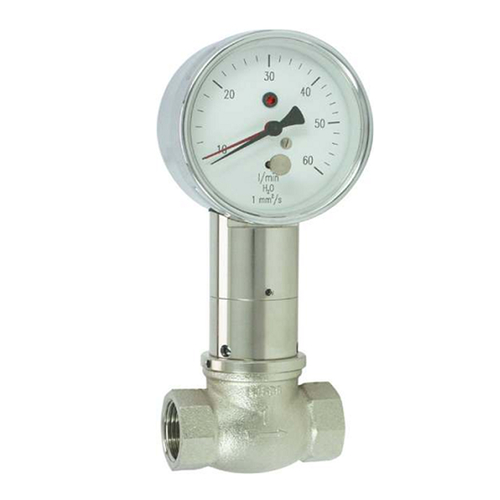

The RCT®-flowmeters with mounted on, round pointer instrument serve for measuring of flow of non-aggressive liquids such as water, oils or emulsions. The red casting brass housing contains a screw-in component made of brass, which the round pointer instrument is mounted on. The free-moving piston placed in the flow room is supported by a compression spring. At the front side, the piston is fitted with a zero disk meshing with a measuring cone screwed in the seating valve of the straight seated body. In its rear part the piston carries two barium-ferrite rings magnetized in opposite direction which constitute the primary part of a concentric magnetic coupling. The secondary part of the coupling is placed outside the flow room and is taken with hysteresis-free when the piston is moved through the flowing medium. It operates the pointer via an measuring element.
Technical specification
Material:
Housing: red casting brass RG 5 nickel-plated
Piston / Disk: brass MS 58
Compression spring: stainless steel 1.4310
Magnet: barium ferrite
Seal: NBR
Accuracy of measurement: ±3 % of full scale value
Media temperature: +90 °C
Average pressure loss: 0.25 bar
| Item | Image |
NW mm
|
Measuring range liquids l/min.
|
max. Betr.-Druck1 bar
| Innengewinde |
Einheit Stück
|
L mm
|
H mm
|
l1 mm
|
Gewicht kg
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Measuring range liquids l/min.
|
max. Betr.-Druck1 bar
|
Innengewinde
|
Einheit Stück
|
L mm
|
H mm
|
l1 mm
|
Gewicht kg
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54385 |
|
8 | 2 - 6 | 100 | G 1/4" | 1 | 68 | 212 | 12 | 1,6 | 921.00 | |
| 543851 |
|
8 | 3 - 12 | 100 | G 1/4" | 1 | 68 | 212 | 12 | 1,6 | 921.00 | |
| 54386 |
|
10 | 2 - 6 | 100 | G 3/8" | 1 | 68 | 212 | 12 | 1,6 | 970.00 | |
| 543861 |
|
10 | 3 - 12 | 100 | G 3/8" | 1 | 68 | 212 | 12 | 1,6 | 970.00 | |
| 54387 |
|
15 | 2 - 6 | 100 | G 1/2" | 1 | 68 | 212 | 13 | 1,6 | 1,013.00 | |
| 543871 |
|
15 | 4 - 20 | 100 | G 1/2" | 1 | 68 | 212 | 13 | 1,6 | 1,013.00 | |
| 54388 |
|
20 | 4 - 20 | 25 | G 3/4" | 1 | 73 | 212 | 11 | 1,7 | 1,013.00 | |
| 543881 |
|
20 | 10 - 40 | 25 | G 3/4" | 1 | 73 | 212 | 11 | 1,7 | 1,013.00 | |
| 54389 |
|
25 | 10 - 60 | 25 | G 1" | 1 | 87 | 216 | 12 | 2 | 1,068.00 | |
| 54390 |
|
32 | 10 - 100 | 16 | G 1 1/4" | 1 | 98 | 226 | 13 | 2,6 | 1,214.00 | |
| 54391 |
|
40 | 10 - 150 | 16 | G 1 1/2" | 1 | 113 | 228 | 14 | 3,1 | 1,509.00 | |
| 54392 |
|
50 | 20 - 250 | 16 | G 2" | 1 | 137 | 236 | 17 | 6,4 | 1,638.00 |
[1] at +20 °C
