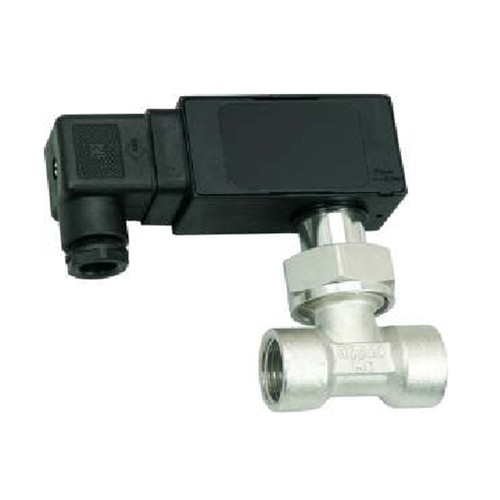

Flow Switch made of Brass or Stainless Steel
Viewed
Product specification
The flow switch is fitted in its flow room with a bounce plate attached to one end of a balance arm placed in the flow room and bearing a barium-ferrite magnet on the other end. Effects of friction are almost prevented. The magnet operates a reed contact in a switching tube placed outside the flow room. Depending on the setting of this switching tube, the reed contact operates as working current or closed-circuit current switch.
The flow switches are used for monitoring aggressive and non-aggressive media. The maximum operating pressures amount to 16 bar for the brass version and 25 bar for the stainless steel version, both at maximum operating temperatures of +110 °C. The flow switches are safe in operation at small pressure drops in the device and unsusceptible to soiled media and scale formation in the device interior.
Technical specification
Material:
Housing: brass (Ms58) nickel-plated or stainless steel 1.4305
Body: brass (Ms58) nickel-plated or stainless steel 1.4571
Paddle parts: stainless steel 1.4301; 1.4571
Spring: stainless steel 1.4310
Magnet: oxyd 300
Seal: NBR (at Ms58); FPM (at 1.4305)
Voltage: 230 V~
Amperage: 1 A
Power consumption: 50 VA
Max. operating pressure: 25 bar
Pressure loss: 0.01 bar
Max. temperature: +110 °C
Protection class: IP 65
Tolerances of setting range: ±15 % of full scale
Switching hysteresis: depending on switch value, min. 0.7 l/min
Plug: DIN 43650 -A

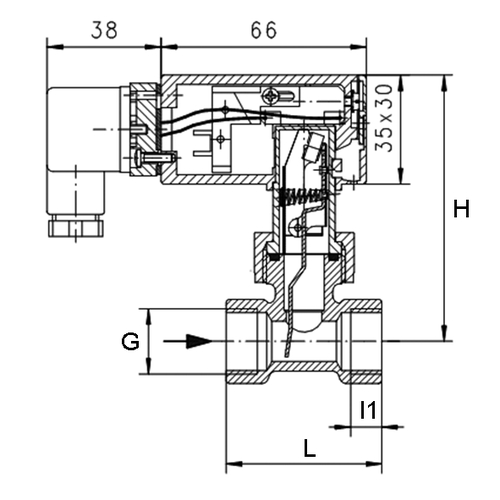

| Item | Image |
NW mm
|
Measuring range liquids1 l/min.
|
max. Durchfluss Flüssigkeiten1 l/min.
| Werkstoff |
Einheit Stück
| Innengewinde |
l1 mm
|
L mm
|
H mm
|
SW mm
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Measuring range liquids1 l/min.
|
max. Durchfluss Flüssigkeiten1 l/min.
|
Werkstoff
|
Einheit Stück
|
Innengewinde
|
l1 mm
|
L mm
|
H mm
|
SW mm
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54370 |
|
10 | 3,5 - 5 | 10 | Edelstahl | 1 | G 3/8" | 10 | 50 | 87 | 27 | 690.00 | |
| 54371 |
|
15 | 5 - 6,5 | 20 | Edelstahl | 1 | G 1/2" | 10 | 50 | 87 | 27 | 734.00 | |
| 54372 |
|
20 | 6 - 8,5 | 40 | Edelstahl | 1 | G 3/4" | 12 | 50 | 88 | 30 | 793.00 | |
| 54373 |
|
25 | 12 - 15 | 60 | Edelstahl | 1 | G 1" | 12 | 50 | 92 | 37 | 866.00 | |
| 54374 |
|
32 | 20 - 27 | 80 | Edelstahl | 1 | G 1 1/4" | 12 | 50 | 96 | 46 | 1,018.00 | |
| 54375 |
|
40 | 34 - 44 | 100 | Edelstahl | 1 | G 1 1/2" | 12 | 50 | 99 | 52 | 1,173.00 | |
| 54376 |
|
50 | 54 - 69 | 150 | Edelstahl | 1 | G 2" | 12 | 50 | 108 | 70 | 1,392.00 | |
| 54377 |
|
10 | 3,5 - 5 | 10 | Messing | 1 | G 3/8" | 10 | 50 | 87 | 27 | 272.00 | |
| 54378 |
|
15 | 5 - 6,5 | 20 | Messing | 1 | G 1/2" | 10 | 50 | 87 | 27 | 272.00 | |
| 54379 |
|
20 | 6 - 8,5 | 40 | Messing | 1 | G 3/4" | 12 | 50 | 88 | 30 | 272.00 | |
| 54380 |
|
25 | 12 - 15 | 60 | Messing | 1 | G 1" | 12 | 50 | 92 | 37 | 307.00 | |
| 54381 |
|
32 | 20 - 27 | 80 | Messing | 1 | G 1 1/4" | 12 | 50 | 96 | 46 | 345.00 | |
| 54382 |
|
40 | 34 - 44 | 100 | Messing | 1 | G 1 1/2" | 12 | 50 | 99 | 52 | 432.00 | |
| 54383 |
|
50 | 54 - 69 | 150 | Messing | 1 | G 2" | 12 | 50 | 108 | 70 | 432.00 |
[1] Water (+20 °C)
