Application area
Flowmeters for use in laboratory, pilot and production plant for smallest as well as for largest measuring ranges.
Product specification

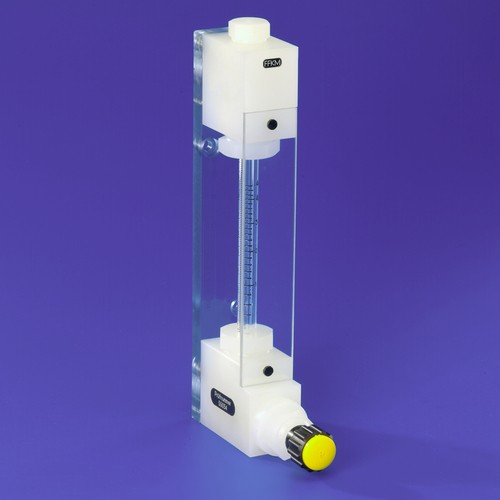

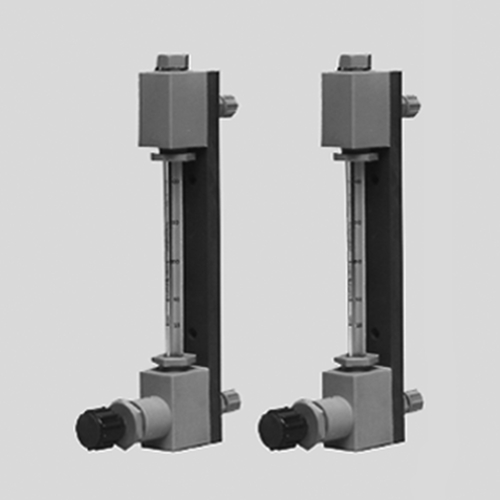

Flowmeters with needle valve, measuring tube, and connecting fittings as complete unit.
The very accurate reading is enabled by a calibrated ribbed measuring tube, through which the cone plummets are precisely conducted.

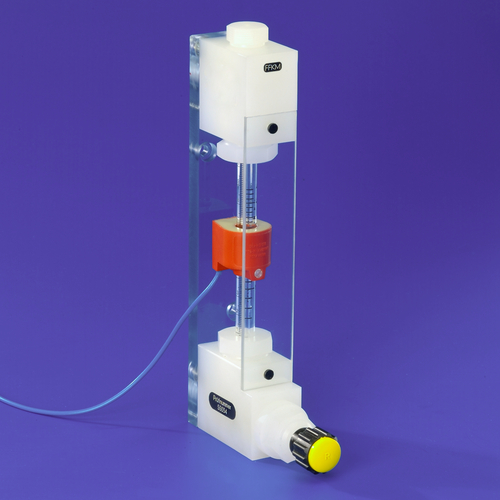

The flowmeters are supplied alternatively with or without annular proximity switch (flow controller).
The PP-flowmeters are fitted with screwed tubing joints accepting tubing made of PVC, silicone or FPM with inside diameter of 4 mm and outside diameter of 6 mm. The PVDF and PTFE flowmeters are fitted with screwed pipe joints accepting pipes made of PVDF or PTFE with outside diameter of 6 mm.
Alternatively, these connections can be replaced by other fittings accepting pipes with larger or smaller outside diameters. The internal thread G 1/4" is suitable for all common THOMAFLUID® tubing or pipe connectors. The connecting fittings are principally mounted at the rear.
Technical specification
Material PP:
Valve body, Needle valve, Valve spindle: PP
Connecting fittings: PP
Cone plummet: Glass, Mu-metal, stainless steel, corundum, titanium, PVDF (depending on medium)
Material PVDF:
Valve body, Needle valve: PVDF
Valve spindle: PTFE
Connecting fittings: PVDF
Cone plummet: Dyflor 2000 with ferrum core, glass, titanium, stainless steel, PTFE, Hastelloy, Carboloy, tantalum (depending on medium)
Material PTFE:
Valve body, Needle valve, Valve spindle: PTFE
Connecting fittings: PTFE
Cone plummet: Dyflor 2000 with ferrum core, glass, titanium, stainless steel, PVDF, PTFE, Hastelloy (depending on medium)
Measuring tube: Borosilicate glass
Plummet stop: PTFE
O-rings: FPM
Wall panel: PVC-glass
Length of scale: 150 mm
Max. operating pressure: depending on flow till 6 bar
Max. temperature:
PP: +80 °C
Accuracy: measuring tubes are calibrated individually
Connection:
PP: for tubing DN 4/6 mm
General Information
The flowmeters EMP-4 operate in accordance with the float measuring principle. At constant flow speed, the float in the conical measuring tube comes to rest as soon as the resistibility / flow force compensates, at the corresponding cross section, the inertial forces acting on the float. When the flow speed changes, e.g. by pressure change, the float moves freely up and down until the resistibility, altering with the free cross-sectional flow area, has stabilized at the value of inertial forces and an equilibrium of forces is again prevalent. The position of the float reached in this manner corresponds to a specific volumetric flow and is indicated as flow rate on the scale printed on measuring tube.
Precisely operating, compact flowmeters with measuring tube, needle fine regulating valve and connecting fittings as complete unit.
Housing parts are made of high-quality plastics and injection-molded.
The very accurate reading is enabled by a calibrated ribbed measuring tube, through which the ball float (for measurement of gases) or cone float are precisely conducted.
A pipe of acrylic glass protects the measuring tube against contaminations and break.
The fine regulating valve allows the exact adjustment of very small measuring intervals.
The flowmeters are supplied alternatively with or without annular proximity switch (flow controller).
Standardly, the flowmeters are fitted with screw-in tubing joints accepting tubes and pipes made of PP (polypropylene), PVDF (polyvinylidene fluoride) or PFA (perfluoroalkoxy) with inside diameter of 4 mm and outside diameter of 6 mm. Alternatively, these connections can be replaced by other fittings accepting tubes or pipes with different outside diameters. The screw joint bodies are screwed into an internal thread G.
Connections with bulkhead nut for wall mounting or control panel mounting.
Rear connections allow a close alignment of the flowmeters.
The measuring tube consists of pure DURAN glass of highest quality.
Accuracy class of the glass tube 2.5 according to VDI / VDE
Very good corrosion resistance to most measuring media except to hot, concentrated alkalis and hydrofluoric acid.
Due to its high boric oxide content (BO3) the DURAN glass exhibits a high thermal shock resistance, which is reflected in an extremely low linear expansion coefficient of k = 3.2 * 10-6 m/K.
Four different measuring tubes with diameters of 10, 17 and 28 mm and lengths of 75 and 150 mm offer numerous solutions for a wide variety of applications.
| Item | Image |
Measuring range gases l/h
|
Messbereich Flüssigkeiten l/h
| Medium1 | Ringinitiator |
Ø-Messrohr mm
| Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Measuring range gases l/h
|
Messbereich Flüssigkeiten l/h
|
Medium1
|
Ringinitiator
|
Ø-Messrohr mm
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|
| 24875 |
|
0 - 15 | Argon | mit | 10 | PP | 1 | 1,388.00 | ||
| 24876 |
|
0 - 15 | Argon | ohne | 10 | PP | 1 | 762.00 | ||
| 24877 |
|
0 - 30 | Argon | mit | 10 | PP | 1 | 1,388.00 | ||
| 24878 |
|
0 - 30 | Argon | ohne | 10 | PP | 1 | 762.00 | ||
| 24879 |
|
0 - 60 | Argon | mit | 10 | PP | 1 | 1,388.00 | ||
| 24880 |
|
0 - 60 | Argon | ohne | 10 | PP | 1 | 762.00 | ||
| 24881 |
|
0 - 100 | Argon | mit | 10 | PP | 1 | 1,388.00 | ||
| 24882 |
|
0 - 100 | Argon | ohne | 10 | PP | 1 | 762.00 | ||
| 24883 |
|
0 - 160 | Argon | mit | 10 | PP | 1 | 1,388.00 | ||
| 24884 |
|
0 - 160 | Argon | ohne | 10 | PP | 1 | 762.00 | ||
| 24885 |
|
0 - 240 | Argon | mit | 17 | PP | 1 | 1,423.00 | ||
| 24886 |
|
0 - 240 | Argon | ohne | 17 | PP | 1 | 780.00 | ||
| 24887 |
|
0 - 320 | Argon | mit | 17 | PP | 1 | 1,423.00 | ||
| 24888 |
|
0 - 320 | Argon | ohne | 17 | PP | 1 | 780.00 | ||
| 24889 |
|
0 - 600 | Argon | mit | 17 | PP | 1 | 1,423.00 | ||
| 24890 |
|
0 - 600 | Argon | ohne | 17 | PP | 1 | 780.00 | ||
| 11066 |
|
0 - 22 | Helium | mit | 10 | PP | 1 | 1,388.00 | ||
| 10994 |
|
0 - 22 | Helium | ohne | 10 | PP | 1 | 762.00 | ||
| 11067 |
|
0 - 55 | Helium | mit | 10 | PP | 1 | 1,388.00 | ||
| 10995 |
|
0 - 55 | Helium | ohne | 10 | PP | 1 | 762.00 | ||
| 11068 |
|
0 - 130 | Helium | mit | 10 | PP | 1 | 1,388.00 | ||
| 10996 |
|
0 - 130 | Helium | ohne | 10 | PP | 1 | 762.00 | ||
| 11069 |
|
0 - 220 | Helium | mit | 17 | PP | 1 | 1,423.00 | ||
| 10997 |
|
0 - 220 | Helium | ohne | 17 | PP | 1 | 780.00 | ||
| 11070 |
|
0 - 360 | Helium | mit | 17 | PP | 1 | 1,423.00 |
