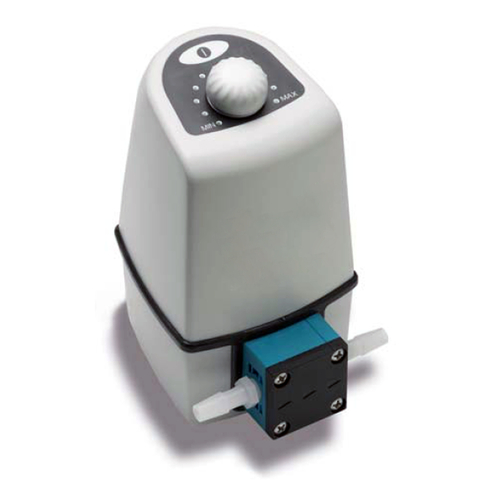

Variable Single-Head Diaphragm Pump for Liquid Aggressive Media and Purest Media

Preview: Variable Single-Head Diaphragm Pump for Liquid Aggressive Media and Purest Media Preview: Variable Single-Head Diaphragm Pump for Liquid Aggressive Media and Purest Media
Variable Single-Head Diaphragm Pump for Liquid Aggressive Media and Purest Media
Variable Single-Head Diaphragm Pump for Liquid Aggressive Media and Purest Media


Description General Information
Description
Product specification Portable single-head diaphragm pump with variable delivery rate for all... more
Close menu

Product specification

Portable single-head diaphragm pump with variable delivery rate for all kinds of liquids. Heavy duty pump head with variable, cavitation-free swing chamber without rotating gaskets, completely maintenance-free, self-priming and safe to run dry. Medium-contacting parts made of inert plastic materials.

Connections for conveying tubing, robust construction for any mounting position.

Knob with LED display

Standby mode

Optional as RC version available, which can be externally controlled

Technical specification

Material:

Pump head: PP; PVDF or PTFE

Valves: FFKM

Diaphragm: PTFE

O-rings: PTFE-coated

Tubing connectors: PVDF

Max. delivery rate: 0.2 - 1.3 l/min.

Max. suction head: 3 m water column (H2O at +20 °C)

Max. viscosity: 150 cSt.

Pipe connection: hose nozzle for tubing inside Ø 8 mm

Max. temperature of medium: +80 °C

Max. ambient temperature: +40 °C

Voltage: 230 V~ / 50 Hz, according to VDE

Protective class: III

Protective system: IP 65

Dimension: 130 x 177 x 99 mm (L x W x H)

Weight: approx. 1 kg

General Information
more
Close menu
No additional information available.
