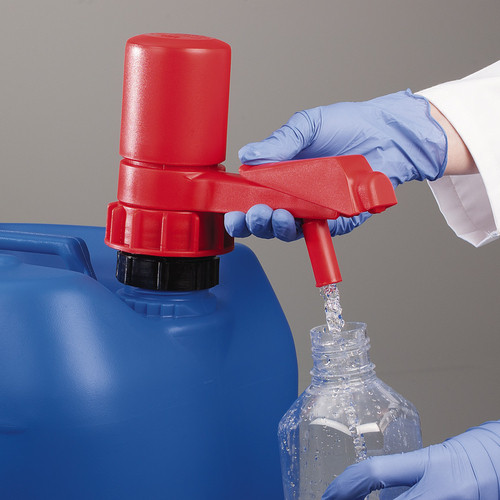

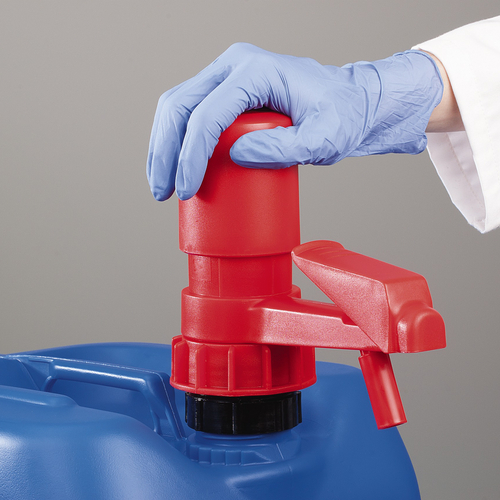

Container Pump made of PP
Product specification
Container pump made of polypropylene (PP) suitable for fluids up to 1400 cP (at +20 °C). Depending on the medium,
seals made of NBR, EPDM, and FPM are optionally available

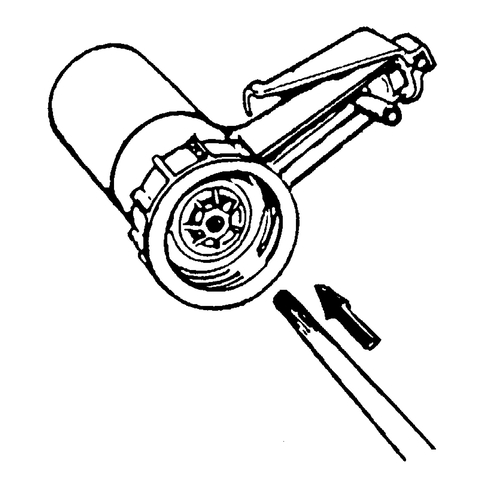

The max. delivery rate amounts to 8 l/min, the filling pump being laid out for containers of 15 to 220 l. The stroke volume is 200 ml. The pump is fitted with a stepless length adjustment of immersion tube of 1,000 mm as standard. The pump can be screwed on all containers with an opening of 64 mm Ø.
Adapters in 2 inch for ”van-Leer-Systems”, for L-ring and steel drums (220 l) as well as 60-mm-DIN adapter are available as accessories.
Pumpit® is shockproof and impact-resistant and weights only 310 g.
The special discharge valve allows accurate metering and shuts absolutely tightly without dropping.

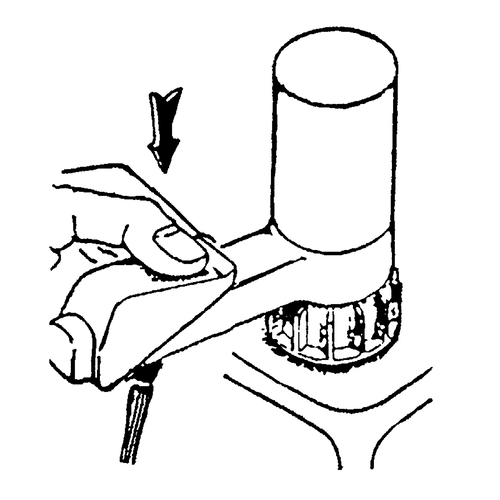

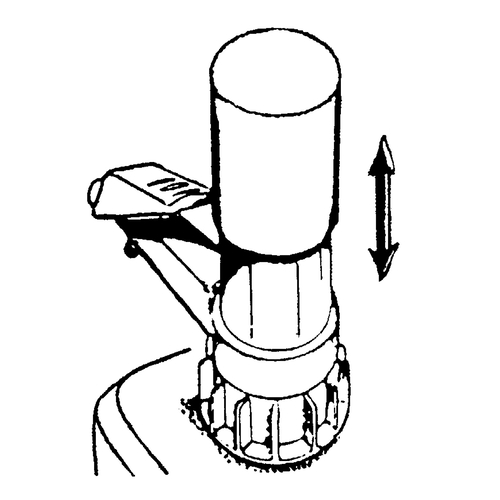

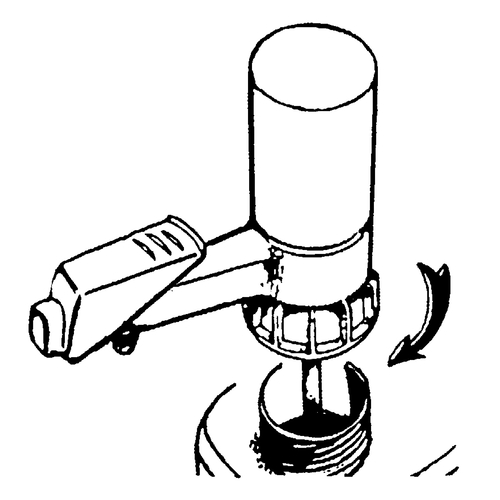

Assembling is very easy. Pumpit® is simply screwed on by means of a hand wheel. By hand pumping (pressing pressure) the fluid is pressurized and delivered through the riser tube to the drain cock.
Accessory: item 83242 - 83246
Item | Image |
Immersion tube length mm
|
max. Förderleistung l/min.
| Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Immersion tube length mm
|
max. Förderleistung l/min.
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
83239 |
|
1.000 | 8 | FPM | 1 | 231.00 |
