Application area
Delivery of gases and purest gases in the areas of medical and precision engineering, analytical technology, biotechnology, environmental technology
Product specification

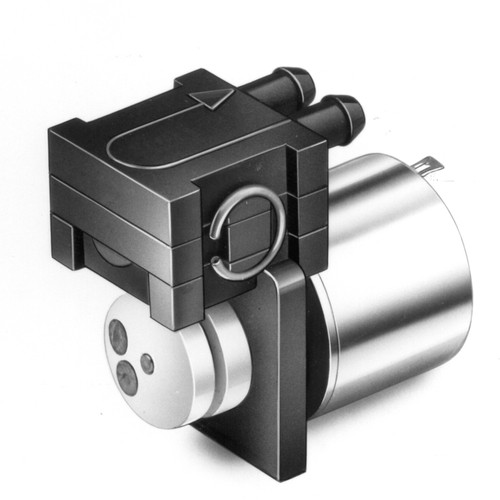

Miniaturised diaphragm pumps for oil-free delivery and compressing of air and other non-aggressive and condensate-free gases as well as for evacuation. Low-voltage direct current motor, ready for mounting, electrical connection with tags. Maintenance-free, robust construction for continuous duty and long service life, medium-contacting parts made of low wear polymer materials. Installation position optional, but pump not running up against pressure or vacuum. Delivery rate adjustable by throttling at the suction side.
The version with 3 and 5 volts are equipped with a standard engine, 6 and 2.5 volts have a motor with ironless rotor.
Technical specification
Material:
Pump head: PPS (Polyphenylensulfide)
Diaphragm: EPDM
Valves: EPDM
Drive system:
Voltage: 3; 5; 6 or 2,5 V=
Amperage: <100 mA
Connection: prepared litz wire for soldering or for low-voltage plug
Final vacuum: 500 - 600 mbar absolute
Max. op. excess pressure: 150 mbar
Max. ambient temperature: +5 to +40 °C
Pipe connection: parallel tubing connections, straight, for tubing ID 3 mm
Dimension: 32 x 27 x 17 mm (L x W x H)
Weight: 20 g
| Item | Image |
Max. delivery rate l/min.
|
Endvakuum mbar
|
Spannung Volt
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Max. delivery rate l/min.
|
Endvakuum mbar
|
Spannung Volt
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 16572 |
|
0,25 | 600 | 3= | 1 | 307.00 | |
| 16573 |
|
0,4 | 500 | 5= | 1 | 307.00 | |
| 16574 |
|
0,3 | 500 | 6= | 1 | 307.00 | |
| 16575 |
|
0,4 | 550 | 2,5= | 1 | 307.00 |
