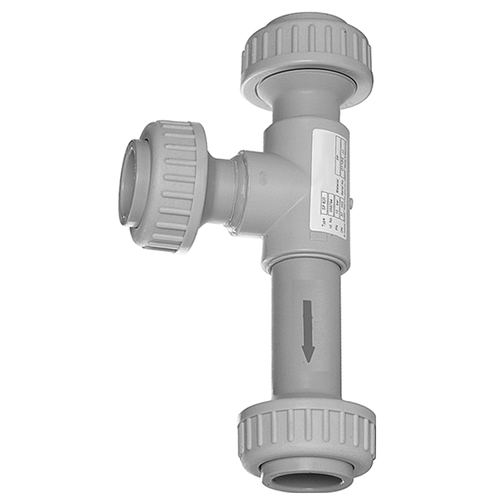

Water-Jet Pump made of PVC-U
Similar products
Customers also viewed
Viewed
Application area
In biological, chemical and pharmaceutical laboratories
The pump is usually used in applications where liquids or gases are to be evacuated from a bypass flow via a main flow or to be mixed, e.g. at suction of regeneration materials or for generation of vacuum.
Product specification
A nozzle in the main flow direction of the pump body produces an injector effect at the suction spigot end due to the acceleration of the medium.
High impact toughness
Good mechanical strength
Good chemical resistance
Resistant to weather
Hardly inflammable
Technical specification
Material:
Housing / Nozzle: PVC-U, grey (RAL 7011)
Gasket: EPDM
Connection: union socket + insert for solvent welding made of PVC-U
Nominal pressure: PN 10 (H2O at +20 °C)

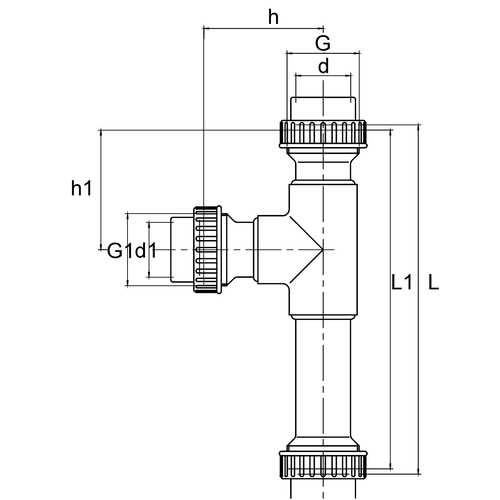

| Item | Image |
d mm
|
NW mm
|
d1 mm
| G | G1 |
L mm
|
L1 mm
|
Unit piece
|
Price Euro* | Buy |
|---|
Item
|
|
d mm
|
NW mm
|
d1 mm
|
G
|
G1
|
L mm
|
L1 mm
|
Unit piece
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 350990 |
|
16 | 10 | 16 | G 3/4" | G 3/4" | 116 | 110 | 1 | 371.00 | |
| 350991 |
|
20 | 15 | 16 | G 1" | G 3/4" | 116 | 110 | 1 | 349.00 | |
| 350992 |
|
25 | 20 | 16 | G 1 1/4" | G 3/4" | 151 | 145 | 1 | 407.00 | |
| 350993 |
|
32 | 25 | 32 | G 1 1/2" | G 1 1/2" | 201 | 195 | 1 | 426.00 | |
| 350994 |
|
40 | 32 | 40 | G 2" | G 2" | 245 | 239 | 1 | 457.00 | |
| 350995 |
|
50 | 40 | 50 | G 2 1/4" | G 2 1/4" | 307 | 301 | 1 | 574.00 | |
| 350996 |
|
63 | 50 | 63 | G 2 3/4" | G 2 3/4" | 357 | 351 | 1 | 708.00 |
