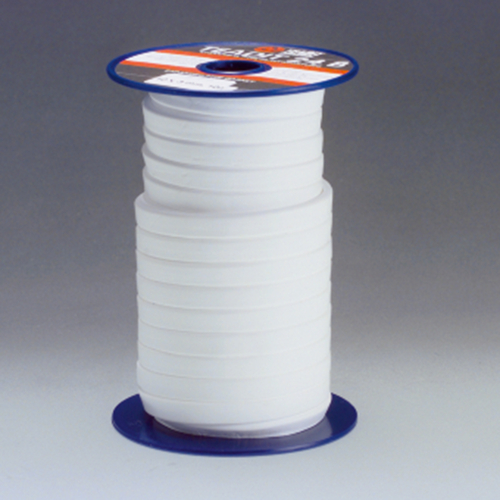

PTFE Sealing Tape
Product specification
Manufactured of virgin PTFE finest powder.
Negative cold flow properties are strongly reduced by stretching of the fibre structure resulting in outstanding sealing properties.
Resistant to aging, weather, ozone, and light, as it is produced without filler.
Flat sealing tape (assembly tape) is fitted with adhesion strips for fastening.
Irregularities are evened up by the tape.
Larger uneven patches should be evened up with a thicker tape. If this is not sufficient, underfeeding is required.
Good adhesion of the adhesive surface of the assembly tape on clean, dry sealing surface.

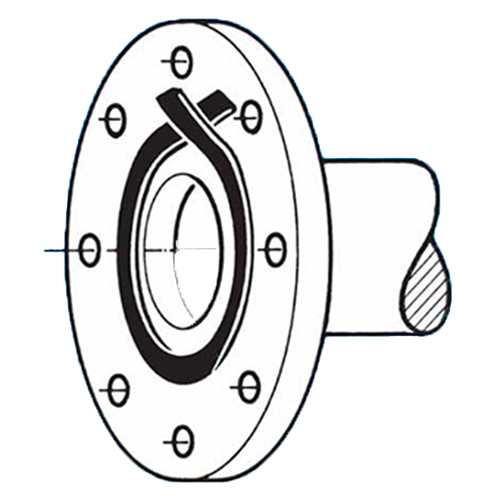

The sealing tape (assembly tape) has to be put in place in such a way that the tape ends cross in front of a bolt.
Impact use is not recommended.

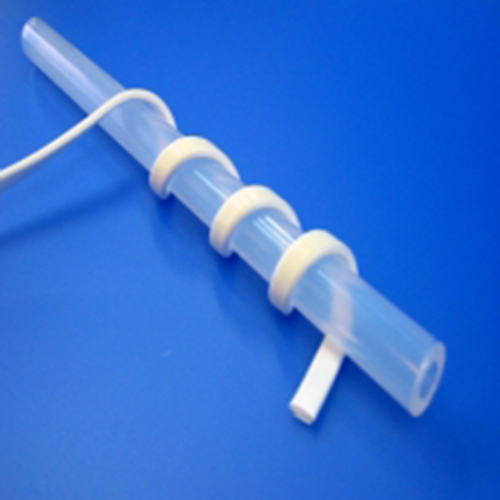

For use with glass fittings, a toothing or bevel cutting should be performed.
Technical specification
Material: PTFE (polytetrafluoroethylene)
Material features: soft and flexible
Colour: white
Temperature range: -240 to +260 °C
Regulations: TÜV inspection, BAM inspection, DVGW-registered
Item | Image |
Width mm
|
Stärke mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Width mm
|
Stärke mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|
19500 |
|
3 | 1,5 | 5 | 37.00 | |
19501 |
|
3 | 1,5 | 10 | 67.00 | |
19502 |
|
3 | 1,5 | 25 | 132.00 | |
19503 |
|
5 | 2 | 5 | 48.00 | |
19504 |
|
5 | 2 | 10 | 86.00 | |
19505 |
|
5 | 2 | 25 | 179.00 | |
19506 |
|
7 | 2,5 | 5 | 61.00 | |
19507 |
|
7 | 2,5 | 10 | 105.00 | |
19508 |
|
7 | 2,5 | 25 | 223.00 | |
19509 |
|
10 | 3 | 5 | 86.00 | |
19510 |
|
10 | 3 | 10 | 130.00 | |
19511 |
|
10 | 3 | 25 | 239.00 | |
19512 |
|
12 | 4 | 5 | 119.00 | |
19513 |
|
12 | 4 | 10 | 206.00 | |
19514 |
|
12 | 4 | 25 | 354.00 | |
19515 |
|
14 | 5 | 5 | 132.00 | |
19516 |
|
14 | 5 | 10 | 223.00 | |
19517 |
|
14 | 5 | 25 | 368.00 | |
19518 |
|
17 | 6 | 5 | 149.00 | |
19519 |
|
17 | 6 | 10 | 250.00 | |
19520 |
|
17 | 6 | 25 | 395.00 | |
19521 |
|
20 | 7 | 5 | 181.00 | |
19522 |
|
20 | 7 | 10 | 290.00 | |
19523 |
|
20 | 7 | 25 | 436.00 |
