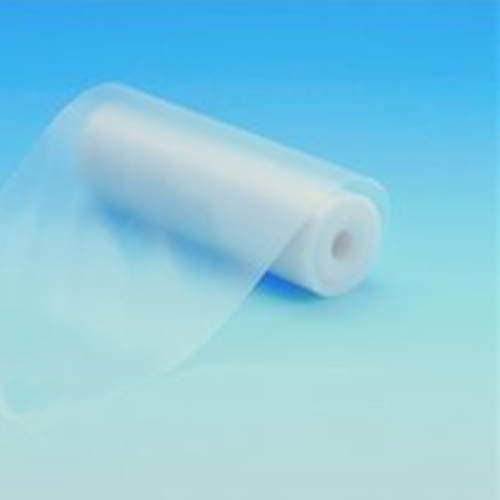

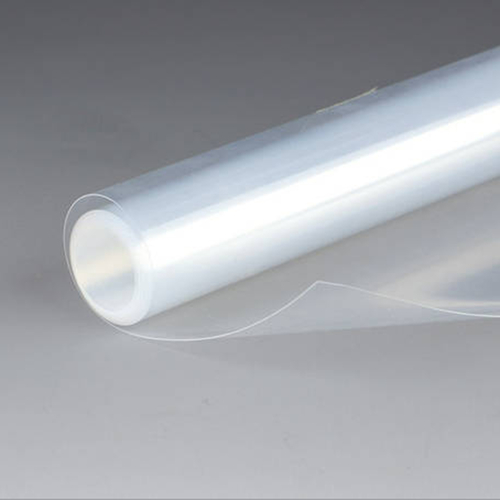

High-Tech FEP Film

Preview: High-Tech FEP Film Preview: High-Tech FEP Film
High-Tech FEP Film
High-Tech FEP Film


Description General Information
Description
Product specification Excellent resistance to weather and UV radiation Very well suited for... more
Close menu

Product specification

Excellent resistance to weather and UV radiation

Very well suited for heat sealing

Heat formable and sealable

Can be laminated with other materials

High chemical resistance

Good mechanical properties from low to high temperature range

High dielectric strength and high insulating resistance

Low dielectric loss factor

Low-friction, not wettable surface

Technical specification

Material: FEP (fluoroethylene-propylene)

Temperature range: -200 to +250 °C (without loading)

Specific weight: 2.12 - 2.17

Tearing strength: 21 MPa

Elongation at break: 250 - 300 %

Coefficient of sliding friction against steel (dry): 0.06 - 0.09

Specific heat: 1,172 J/kg x K

Coefficient of

thermal conductivity: 0.195 W/m * K

thermal linear expansion: ≈10-4/°C

Flammability rating: UL 94 V-0

Dielectric strength: 240 kV/mm

Dielectric constant: 2.1 (at 1 kHz, RT)

Dielectric loss factor: 0.0003 (at 1 kHz, RT)

Water absorption: <0.01 %
