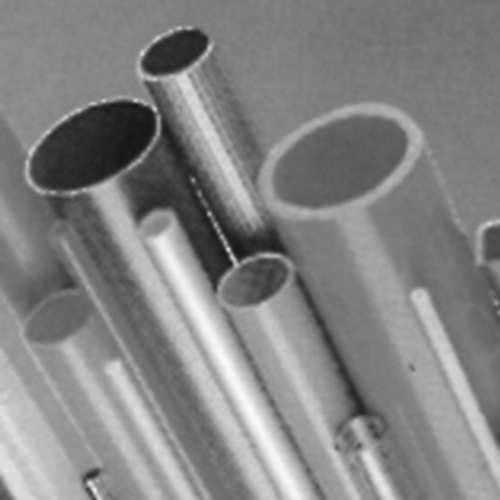

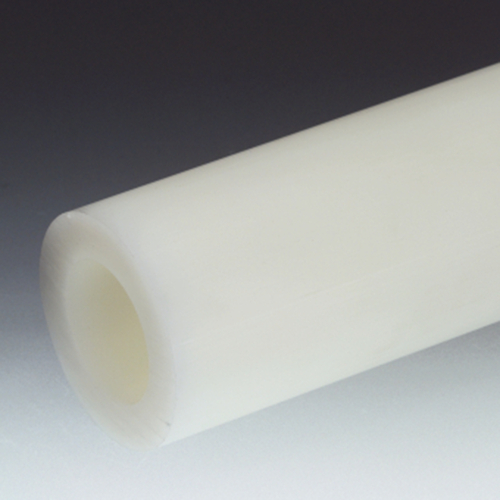

Pipe made of PA - extruded
Product specification
Good mechanical stability
Very good wear resistance
Good impact toughness
Good coefficient of sliding friction
Good temperature resistance
Good electrical insulating properties
Technical specification
Material: PA 6 (polyamide 6)
Colour: natural and black (material addition: MoS2 molybdenum sulphide)
Shore hardness D: 72° - 82° (DIN 53505)
Temperature range: -40 to +85 °C, for a short time +160 °C
Melting point: +220 °C (DIN 53736)
Density: 1.14 g/cm3 (DIN 53479)
Tensile strength: 78 N/mm2 (DIN 53455)
Elongation at break: >50 % (DIN 53455)
Notch impact strength: 4 kJ/m2 (DIN 53453)
Tensile modulus: 3,100 N/mm2 (DIN 53457)
Thermal conductivity: 0.28 W/m * K (DIN 52612)
Dielectric constant: 3.9 at 50 Hz (DIN 53483)
Volume resistivity: 1015 Ohm x cm (DIN 53482)
Item | Image |
Inside Ø mm
|
Toleranz Innen-Ø mm
|
Außen-Ø mm
|
Toleranz Außen-Ø mm
| Farbe |
Länge mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Toleranz Innen-Ø mm
|
Außen-Ø mm
|
Toleranz Außen-Ø mm
|
Farbe
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
301776 |
|
10 | -0,4 / -1,1 | 20 | +1,1 / +0,4 | natur | 250 | 1 | 37.00 | |
301777 |
|
10 | -0,4 / -1,1 | 20 | +1,1 / +0,4 | natur | 500 | 1 | 58.00 | |
301778 |
|
10 | -0,4 / -1,1 | 20 | +1,1 / +0,4 | natur | 1.000 | 1 | 94.00 | |
301782 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | natur | 250 | 1 | 51.00 | |
301783 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | natur | 500 | 1 | 75.00 | |
301784 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | natur | 1.000 | 1 | 116.00 | |
301785 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | schwarz | 250 | 1 | 58.00 | |
301786 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | schwarz | 500 | 1 | 86.00 | |
301787 |
|
15 | -0,4 / -1,1 | 25 | +1,1 / +0,4 | schwarz | 1.000 | 1 | 130.00 | |
301788 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | natur | 250 | 1 | 72.00 | |
301789 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | natur | 500 | 1 | 102.00 | |
301790 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | natur | 1.000 | 1 | 151.00 | |
301791 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | schwarz | 250 | 1 | 83.00 | |
301792 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | schwarz | 500 | 1 | 113.00 | |
301793 |
|
15 | -0,6 / -2,0 | 32 | +2,0 / +0,6 | schwarz | 1.000 | 1 | 162.00 | |
301794 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 250 | 1 | 86.00 | |
301795 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 500 | 1 | 116.00 | |
301796 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 1.000 | 1 | 162.00 | |
301797 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | schwarz | 250 | 1 | 100.00 | |
301798 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | schwarz | 500 | 1 | 135.00 | |
301799 |
|
17 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | schwarz | 1.000 | 1 | 176.00 | |
301800 |
|
25 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 250 | 1 | 81.00 | |
301801 |
|
25 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 500 | 1 | 113.00 | |
301802 |
|
25 | -0,6 / -2,0 | 36 | +2,0 / +0,6 | natur | 1.000 | 1 | 171.00 | |
301803 |
|
25 | -0,6 / -2,0 | 40 | +2,0 / +0,6 | natur | 250 | 1 | 107.00 |
