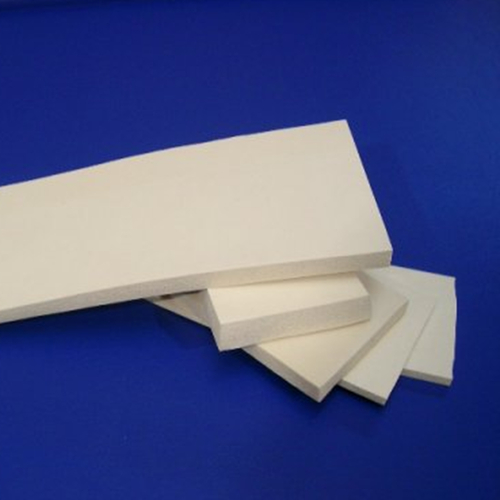

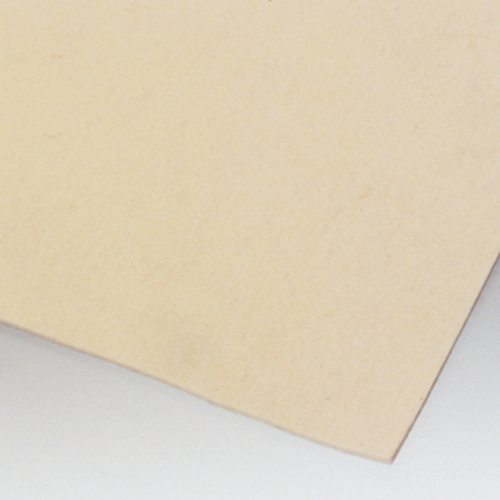

High-Pharm Foam Plate made of Silicone - FDA
Application area
Pharmaceutical technology, medical engineering, food technology, deadening, sealing technology, biotechnology, insulation technology
Product specification
Premium material for pharmaceutical, medical and food uses
Excellent elastic behaviour
Remarkable resistance to cold
Excellent resistance to heat and hot air
Very good resistance to ozone, aging, and weather
Very good dielectrical (non-conducting) properties
Very good physiological properties
Good elongation at break and retention force
Antiadhesive surface properties
Highest gas permeability
Technical specification
Material: silicone foam (silicone rubber)
Shore hardness A: 15° - 25°
Temperature range: -60 to +230 °C
Density: 400 - 450 kg/m3
Elongation at break: 290 %
Tearing strength: 2.5 MPa
Design: platinum-vulcanized, closed-cell, with skin on both sides
Tolerance: DIN ISO 3302-1 E3
Regulations: EU 90/128/EC, BfR XV and FDA § 177.2600
Item | Image |
Thickness mm
|
Toleranz mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Thickness mm
|
Toleranz mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
334077 |
|
2 | ±0,5 | 500 x 500 | 1 | 165.00 | |
334078 |
|
2 | ±0,5 | 500 x 1000 | 1 | 249.00 | |
334079 |
|
2 | ±0,5 | 1000 x 1000 | 1 | 330.00 | |
334080 |
|
3 | ±0,5 | 500 x 500 | 1 | 234.00 | |
334081 |
|
3 | ±0,5 | 500 x 1000 | 1 | 351.00 | |
334082 |
|
3 | ±0,5 | 1000 x 1000 | 1 | 467.00 | |
334083 |
|
4 | ±0,5 | 500 x 500 | 1 | 279.00 | |
334084 |
|
4 | ±0,5 | 500 x 1000 | 1 | 418.00 | |
334085 |
|
4 | ±0,5 | 1000 x 1000 | 1 | 557.00 | |
334086 |
|
5 | ±0,5 | 500 x 500 | 1 | 300.00 | |
334087 |
|
5 | ±0,5 | 500 x 1000 | 1 | 450.00 | |
334088 |
|
5 | ±0,5 | 1000 x 1000 | 1 | 578.00 | |
334089 |
|
6 | ±0,5 | 500 x 500 | 1 | 334.00 | |
334090 |
|
6 | ±0,5 | 500 x 1000 | 1 | 488.00 | |
334091 |
|
6 | ±0,5 | 1000 x 1000 | 1 | 642.00 | |
334092 |
|
8 | ±0,8 | 500 x 500 | 1 | 386.00 | |
334093 |
|
8 | ±0,8 | 500 x 1000 | 1 | 565.00 | |
334094 |
|
8 | ±0,8 | 1000 x 1000 | 1 | 741.00 | |
334098 |
|
12 | ±1,0 | 600 x 500 | 1 | 501.00 | |
334099 |
|
12 | ±1,0 | 600 x 1000 | 1 | 737.00 | |
334100 |
|
12 | ±1,0 | 600 x 2000 | 1 | 966.00 |
