Product specification

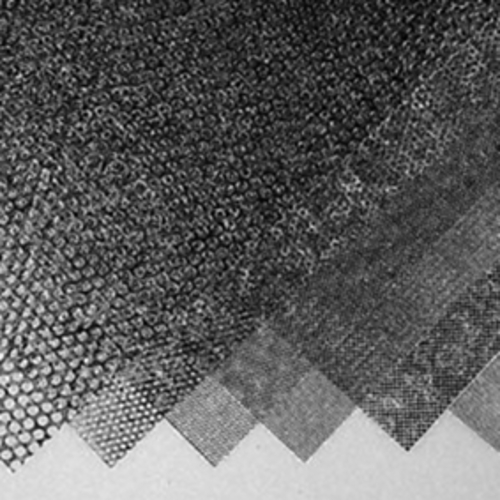

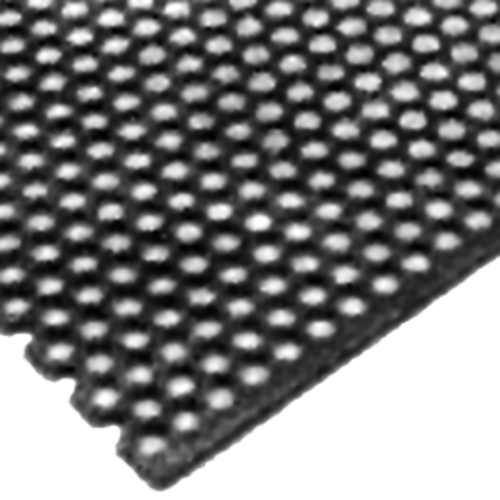

Zinc-plated, perforated steel sheet
Can be overpainted by brushing after degreasing
Application as filter screen and supporting plate in process engineering, as protective device in apparatus construction.
| Item | Image | Design |
Offene Fläche %
|
Stärke mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Design
|
Offene Fläche %
|
Stärke mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 300610 |
|

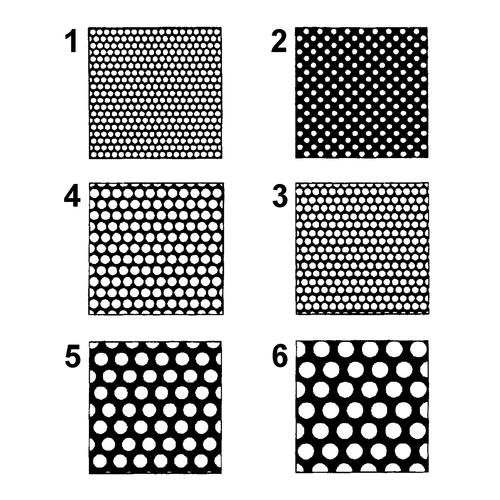

1: 60°, Ø 1,2 mm | 42 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300611 |
|
2: 45°, Ø 1,5 mm | 22 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300613 |
|
4: 60°, Ø 2,0 mm | 47 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300614 |
|
5: 60°, Ø 3,0 mm | 33 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300615 |
|
6: 60°, Ø 4,8 mm | 50 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300616 |
|
7: 60°, Ø 6,4 mm | 43 | 0,7 | 500 x 500 | 1 | 96.00 | |
| 300617 |
|
8: 60°, Ø 8,0 mm | 68 | 0,7 | 500 x 500 | 1 | 96.00 |
